The Tascam DR-10X portable digital recorder connects directly to a dynamic microphone with an XLR connector and records audio to a microSD or microSDHC card of up to 32 GB. Recording is in BWF (WAV) format at 48 kHz and 24-bit, with support for creating two files simultaneously at different levels. Recording time is up to 15.5 hours.
It offers High, Mid, and Low recording level options, automatic level control (Auto Gain Control), a limiter, and a low-cut filter. The automatic file creation function lets you set a specific duration, and playback and a headphone output are also available. An OLED display, a built-in clock, and a microphone locking mechanism round out its features.
It connects to a computer via a Micro USB-B port, which is also used to save and transfer settings. It is powered via USB or by one AAA battery, while firmware updates are performed via a microSD card.
- Type: Portable digital recorder
- Channels: Stereo
- Recording media: microSD or microSDHC card
- Maximum card capacity: 32 GB
- Recording time: Up to 15.5 hours
- File format: BWF (WAV)
- Recording resolution: 48 kHz, 24-bit
- Two-file recording: Simultaneous, at different levels
- Recording level settings: High, Mid, Low
- Automatic level control: Auto Gain Control
- Limiter: Yes
- Low-cut filter: Yes
- Automatic file creation: Settable duration
- Playback: Yes
- Headphone output: Yes
- Display: OLED
- Clock: Built-in

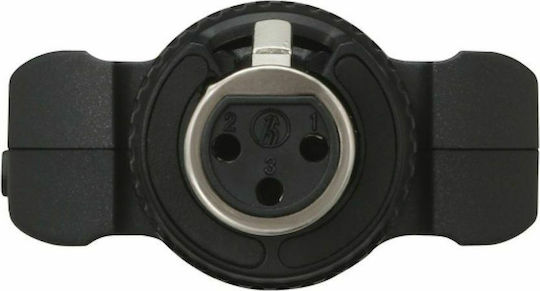

- Microphone connector: XLR
- USB connection: Micro USB-B
- Power supply: USB or one AAA battery
- Firmware update: Via microSD card
- Saving and transferring settings: Via USB to a computer
- Product Number
- DR-10X
Product Details
- Type
- Portable
- Accessory Pack
- -
Technical Specifications
- Channels
- Stereo
- Recording to
- Memory Card
- Recording Time
- 15.5 hours
- Built-in Microphone
- -
- Microphone Inputs
- -
Connections
- Mini Jack (3.5mm)
- -
- Jack (6.3mm)
- -
- USB
- Yes
- XLR
- Yes
- RCA
- -
Power Source
- Phantom Power
- No
- Battery
- Yes
- Power
- No
- USB Power
- Yes
