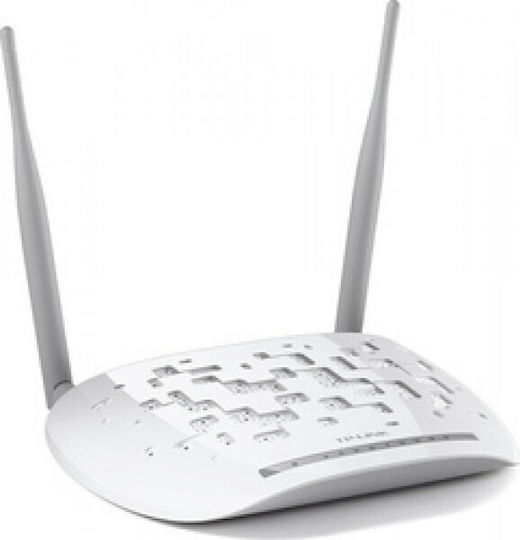

The TD-W9970 from TP-Link is compatible with the latest ITU-T G.993.2 VDSL2 standard, offering speeds up to 100 Mbps.
With wireless speed up to 300 Mbps at 2.4 GHz frequency, it is ideal for HD video streaming and online gaming. Supports VDSL/ADSL or Ethernet WAN (EWAN) connections that allow different Internet connections.- LAN/WAN port.
- Support for VDSL2 and older ADSL2+/ADSL2/ADSL for speeds up to 100 Mbps.
- Designed for triple play services: voice, video, data, HDTV, interactive gaming.
- Multi-functional USB 2.0 port for sharing printers, files, and media.
- Support for up to 10 IPsec VPN tunnels simultaneously.

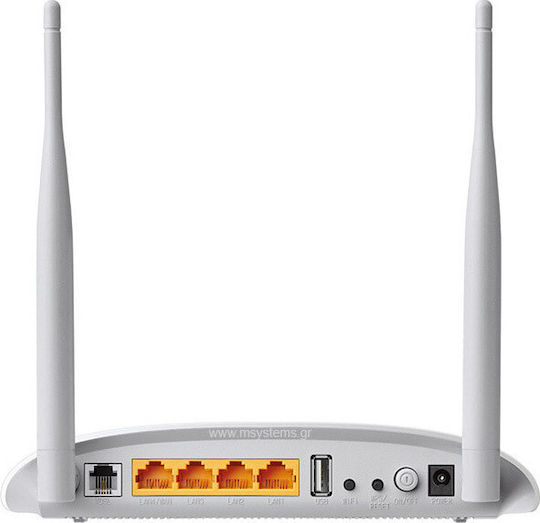

- 4 x 10/100Mbps RJ45
- 1 x RJ11
- 1 x USB 2.0
- 1 Power On/Off Button
- 1 WPS/RESET Button
- 1 Wi-Fi On/Off Switch
- 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
- WMM
- Bandwidth Control (IP QoS)
- Virtual server
- Port Triggering
- UPnP
- DMZ
- Manage Control
- PPTP
- L2TP
- IPSec Pass-through
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- PVC - Up to 8 PVCs
- Ethernet WAN (EWAN)
- Guest Network
- Wireless Schedule
- Parent Control
- Traffic Shaping (ATM QoS)
- Dynamic Host Configuration Protocol (DHCP)
- DHCP relay
- Network Address Translation (NAT)
- PVC/Ethernet Port Grouping
- Static Routing
- RIP v1/v2 (optional)
- DNS Relay
- DDNS
- IGMP snooping V1/2
- IGMP Multicast
- UPnP
- NAT Firewall
- SPI Firewall
- MAC / IP / URL Filtering
- Storage Sharing
- FTP Server
- Media Server
- Print Server
- Web Based Configuration (HTTP)
- Remote management
- Telnet management
- Command Line Interface
- SSL for TR-069
- SNMP V1/V2C
- Web Based Firmware Upgrade
- CWMP (TR-069)
- Diagnostic Tools
- TD-W9970
- External Splitter
- RJ-11 Telephone Line
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Resource CD
- Power Adapter
Network Specifications
- Type
- ADSL/VDSL Modem Router
- DSL technology
- VDSL2
- Maximum Wireless Speed
- 300 Mbps
- Maximum LAN Speed
- 100 Mbps
- Portable Hotspot
- No
- Wi-Fi Generation
- Wi‑Fi 4
- Network Standards
- IEEE 802.11a, IEEE 802.11 b/g/n, IEEE 802.3/3u
- Wi-Fi Frequency
- Single Band (2.4GHz)
Connectivity
- Wireless network
- Yes
- Ethernet LAN connections
- 4
- USB 2.0 connections
- 1
- ISDN Connection
- No
- SIM slot
- No
Security
- Firewall
- NAT, SPI
- Encryption Protocols
- WEP, WPA-Personal, WPA2-Personal, WPS
- MAC Address Filtering
- Yes
Extras
- Virtual Private Network (VPN)
- Yes
- VoIP
- No
- Mesh
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
