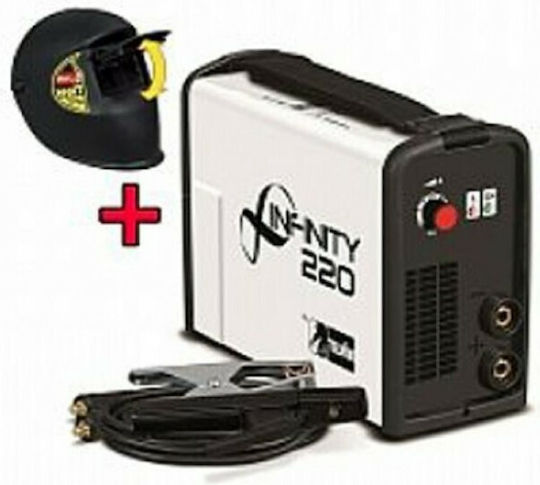

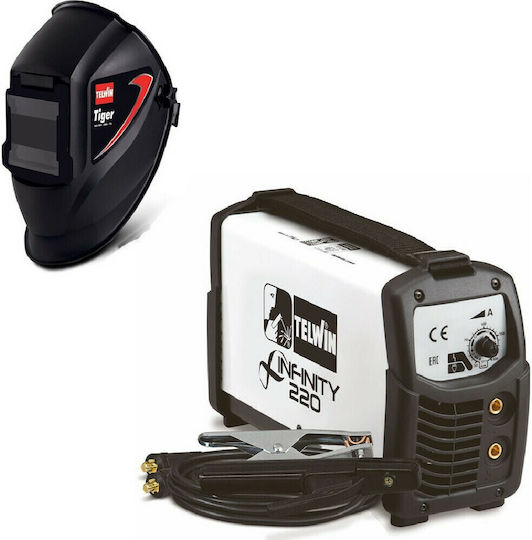

Telwin Infinity 228 CE Welding Machine Inverter MMA with Maximum Welding Current 200A and Duty Cycle 35%
Welding Machines

Telwin Infinity 228 CE Welding Machine Inverter MMA with Maximum Welding Current 200A and Duty Cycle 35%

INFINITY 228 CE INVERTER Electrode MMA-TIG

Features:

  • Voltage: 230 V
  • Current: 20 - 200 A
  • Weldable electrode: 1.6 - 4 mm
  • Protection rating: IP 23
  • Duty cycle 35%: at 200 A
  • Weight: 6.56 kg

Description:

...

INFINITY 228 CE INVERTER Electrode MMA-TIG

Features:

  • Voltage: 230 V
  • Current: 20 - 200 A
  • Weldable electrode: 1.6 - 4 mm
  • Protection rating: IP 23
  • Duty cycle 35%: at 200 A
  • Weight: 6.56 kg

Description:

High reliability welding with 3rd generation electronic systems (IGBT). Reduced weight and dimensions. Low power consumption. Smooth and easy arc start. High...

See full description See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.
  • See all

Welding current (max)

  1. 130 A

    from 208,00 €

  2. 200 A

    from 584,00 €

584 00 €
Delivery by Thu, 06 Aug
23,00 €   shipping cost
Sent from Greece
From Emkate 4.9 (17)
4.9 (17 reviews)
Greece
1 piece
See Tools on the page of Emkate
Review the product
Product report

Description

Description

INFINITY 228 CE INVERTER Electrode MMA-TIG

Features:

  • Voltage: 230 V
  • Current: 20 - 200 A
  • Weldable electrode: 1.6 - 4 mm
  • Protection rating: IP 23
  • Duty cycle 35%: at 200 A
  • Weight: 6.56 kg

Description:

High reliability welding with 3rd generation electronic systems (IGBT). Reduced weight and dimensions. Low power consumption. Smooth and easy arc start. High stability welding, despite network voltage fluctuations.

The Arc Force, Hot Start, Anti-Stick systems are now part of the basic equipment of the TELWIN family:

  • Arc Force: Automatic current calibration during welding.
  • Hot Start: Prevents flame extinction when the electrode is in contact with the welding object.
  • Anti-Stick: Prevents the electrode from sticking to the welding point.

Thanks to the high quality of power production (Low Distortion Quality System), it has the capability to weld electrodes up to 2.5mm. Thermostatic. Overvoltage-undervoltage protection, overcurrent protection. Generator protection (± 15%). Ability to use the following types of electrodes: rutile, basic, stainless steel, steel, cast iron, etc. Complete with MMA welding accessories.

Its main advantage is the welding method. Classic welders created an arc during welding with alternating current, which resulted in high power demand, uneven seam, and electrode sticking to the metal.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

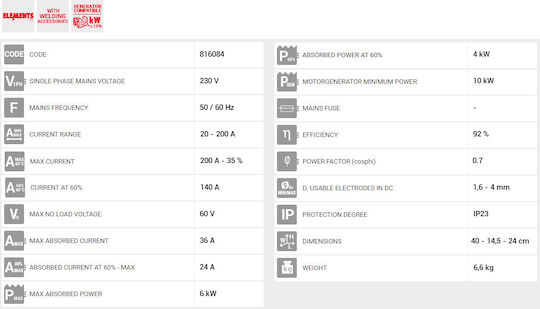

Specifications

Specifications

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
6560 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

INFINITY 228 CE INVERTER Electrode MMA-TIG

Features:

  • Voltage: 230 V
  • Current: 20 - 200 A
  • Weldable electrode: 1.6 - 4 mm
  • Protection rating: IP 23
  • Duty cycle 35%: at 200 A
  • Weight: 6.56 kg

Description:

High reliability welding with 3rd generation electronic systems (IGBT). Reduced weight and dimensions. Low power consumption. Smooth and easy arc start. High stability welding, despite network voltage fluctuations.

The Arc Force, Hot Start, Anti-Stick systems are now part of the basic equipment of the TELWIN family:

  • Arc Force: Automatic current calibration during welding.
  • Hot Start: Prevents flame extinction when the electrode is in contact with the welding object.
  • Anti-Stick: Prevents the electrode from sticking to the welding point.

Thanks to the high quality of power production (Low Distortion Quality System), it has the capability to weld electrodes up to 2.5mm. Thermostatic. Overvoltage-undervoltage protection, overcurrent protection. Generator protection (± 15%). Ability to use the following types of electrodes: rutile, basic, stainless steel, steel, cast iron, etc. Complete with MMA welding accessories.

Its main advantage is the welding method. Classic welders created an arc during welding with alternating current, which resulted in high power demand, uneven seam, and electrode sticking to the metal.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
6560 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
