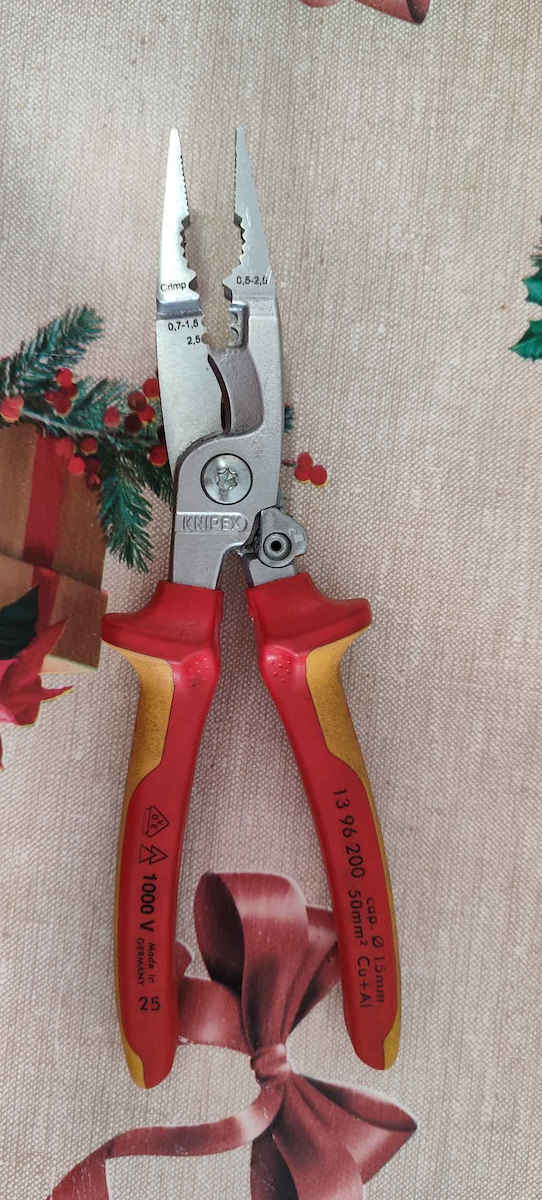

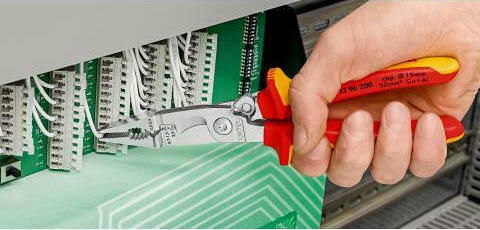

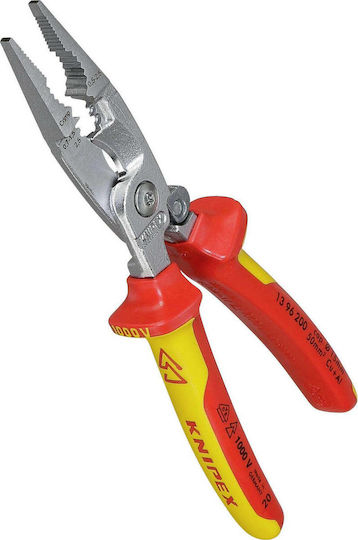

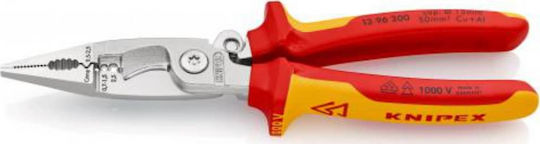

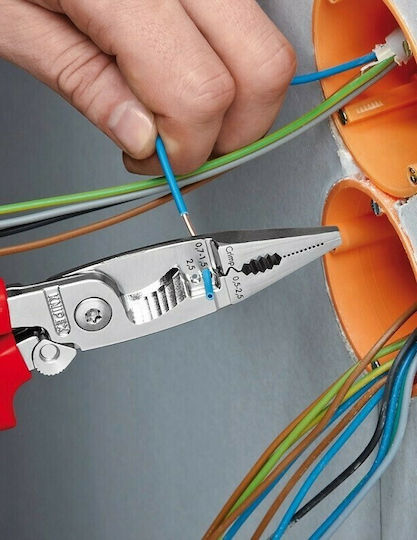

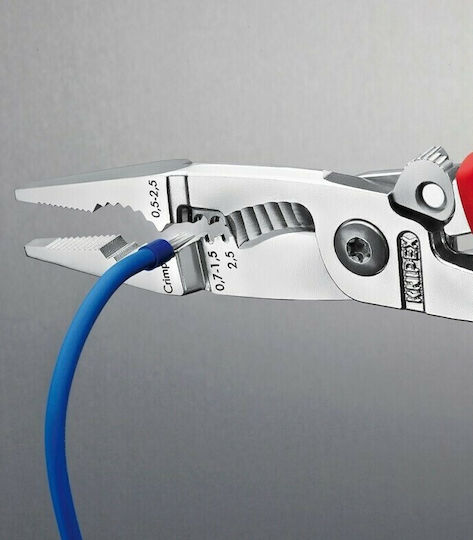

The Knipex 13 96 200 wire-stripping pliers combine six functions for electrical work: gripping flat and round objects, bending, deburring, cutting and stripping wires, and crimping wire-end ferrules. The smooth gripping surfaces at the tip hold wires without damaging them, while the stripping notches accommodate conductors measuring 0.7–1.5 mm² and 2.5 mm².

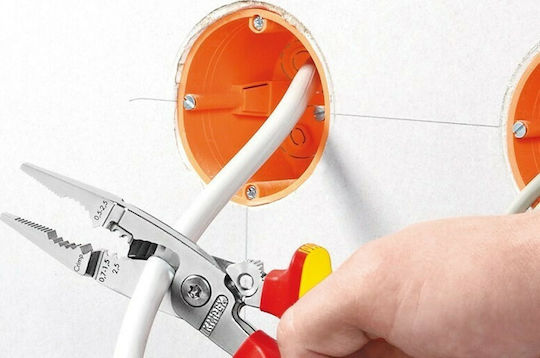

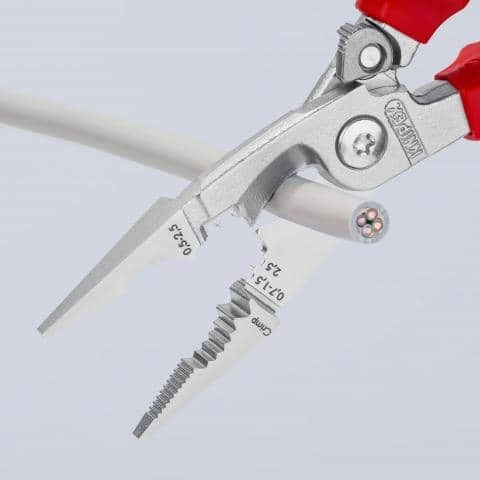

The cutter, with induction-hardened cutting edges, handles copper and aluminium cables up to 5 × 2.5 mm² or Ø 15 mm. The crimping die is suitable for ferrules measuring 0.5–2.5 mm². The pliers feature an opening spring and a locking mechanism that keeps the cutting edge closed and protected.
- Type: Wire-stripping pliers
- Length: 200 mm
- Stripping range: 0.7–1.5 mm² and 2.5 mm²
- Cable cutting capacity: Up to 5 × 2.5 mm² or Ø 15 mm
- Cable materials: Copper and aluminium, solid and stranded

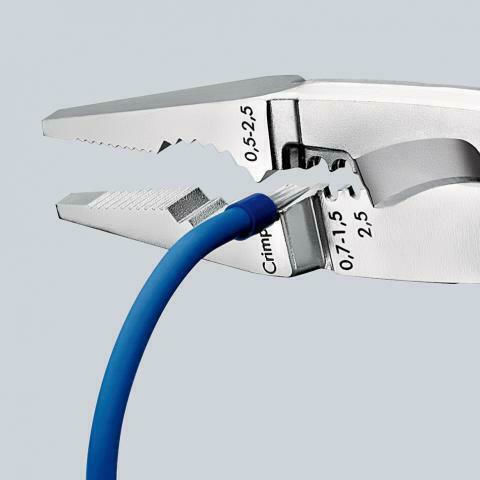

- Ferrule crimping: 0.5–2.5 mm²
- Gripping surfaces: Smooth at the tip and contoured
- Joint: Bolted
- Opening spring: Yes
- Locking mechanism: Keeps the cutting edge closed and protected
- Finish: Chrome-plated
- Handles: Insulated, with multi-component grips
- Insulation standard: IEC 60900, DIN EN 60900
- Product Number
- 13 96 200
Specifications
- Type
- Pliers
- Length
- 200 mm
- Minimum Wire Gauge
- 0.7 mm
- Gauged
- No
- Maximum Wire Gauge
- 2.5 mm
Features & Functions
- Electric
- No
- With Cutter
- Yes
