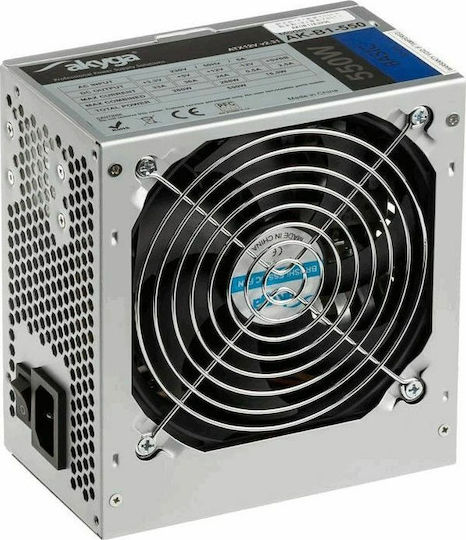

The Akyga AK-B1-550 computer power supply delivers 550 W of power and complies with the ATX 12V 2.0 standard, making it suitable for desktop computers and platforms with multi-core processors. It features fixed cabling and active cooling with a 120 mm fan. The OVP, OCP, OPP, OTP and SCP protection circuits, together with the PFC filter, help protect components and ensure stable power supply operation.

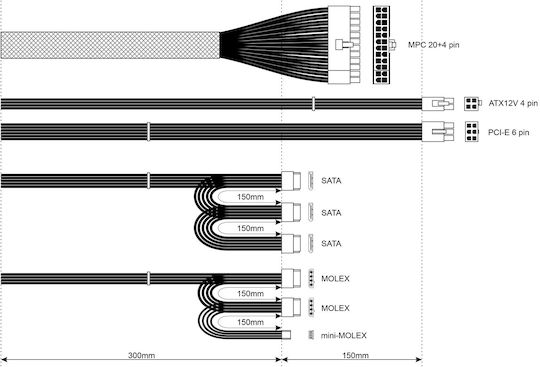

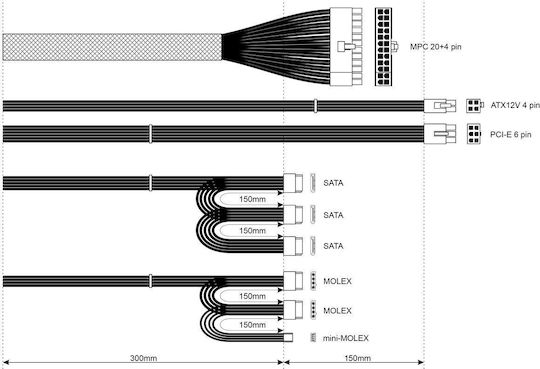

The on/off switch lets you cut the power without disconnecting the cable from the mains. Connections include 3 SATA connectors, 2 MOLEX connectors, 1 mini-MOLEX connector, 1 4-pin P4 connector, 1 6+2-pin PCI-E connector and 1 24-pin motherboard connector.
- Power: 550 W
- Type: ATX
- Standard: ATX 12V 2.0
- Cabling: Fixed
- Colour: Grey
- Cooling: Active
- Fans: 1
- Fan diameter: 120 mm
- Protections: OVP, OCP, OPP, OTP, SCP
- PFC filter: Yes
- On/off switch: Yes
- SATA power connectors: 3
- 4-pin MOLEX power connectors: 2
- Mini-MOLEX power connector: 1
- 4-pin P4 CPU connector: 1
- 6+2-pin PCI-E connector: 1
- Motherboard connector: 20+4-pin ATX

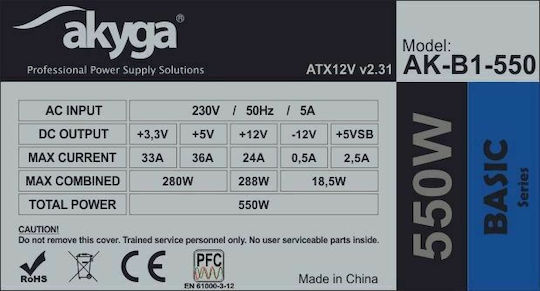

- Input current: 5 A
- Input voltage: 230 V
- +3.3 V output current: 33 A
- +5 V output current: 36 A
- +5 Vsb output current: 2.5 A
- +12 V output current: 24 A
- -12 V output current: 0.5 A
- Combined +3.3 V power: 280 W
- Combined +5 V power: 280 W
- Combined +12 V power: 288 W
- Combined +5 Vsb power: 18.5 W
- Combined -12 V power: 18.5 W
- Efficiency: 70%
- Operating temperature: 5–50 °C
- Dimensions: 150 × 85 × 140 mm
- Weight: 1.04 kg
- MTBF: 100,000 h
- Sustainability certifications: RoHS
