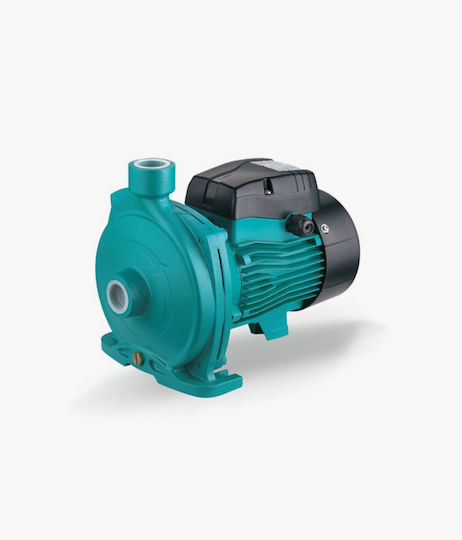

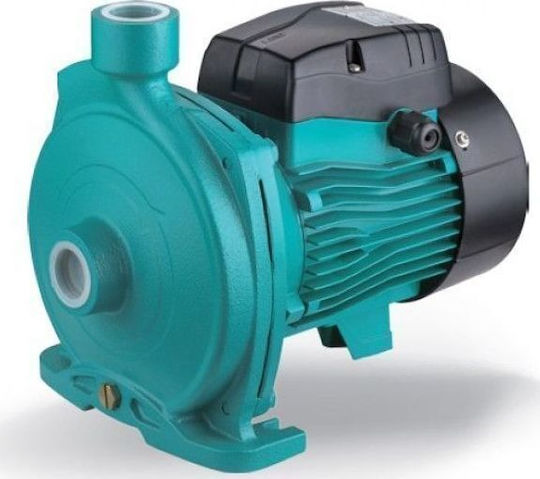

Leo Group AC75 Electric Surface Water Pump Centrifugal 1hp Three-Phase
Surface Water Pumps

Leo Group AC75 Electric Surface Water Pump Centrifugal 1hp Three-Phase Code: 01A29

The Leo Group AC75 surface centrifugal pump features a stainless steel impeller and two stages. It operates on a 380 V three-phase power supply and has a power rating of 1 hp.

  • Type: Two-stage
  • Pump...

The Leo Group AC75 surface centrifugal pump features a stainless steel impeller and two stages. It operates on a 380 V three-phase power supply and has a power rating of 1 hp.

  • Type: Two-stage
  • Pump type: Centrifugal
  • Impeller: Stainless steel
  • Power supply: Electric
  • Voltage: Three-phase, 380 V
  • Power: 1 hp
  • Head: 35 m
  • Flow rate and head: 1.8 m³/h at 33 m, 3 m³/h...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Three-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
111 90 €
Lowest price '26
Delivery by Fri, 06 Nov
29,00 €   shipping cost
Sent from Greece
From MdTools 5.0 (46)
5.0 (46 reviews)
Greece
See Water Pumps on the page of MdTools

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group AC75 surface centrifugal pump features a stainless steel impeller and two stages. It operates on a 380 V three-phase power supply and has a power rating of 1 hp.

  • Type: Two-stage
  • Pump type: Centrifugal
  • Impeller: Stainless steel
  • Power supply: Electric
  • Voltage: Three-phase, 380 V
  • Power: 1 hp
  • Head: 35 m
  • Flow rate and head: 1.8 m³/h at 33 m, 3 m³/h at 31 m, 4.2 m³/h at 27 m, 6 m³/h at 16 m
  • Ports: 1'' x 1''
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01A29

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Manometric Head
35 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group AC75 surface centrifugal pump features a stainless steel impeller and two stages. It operates on a 380 V three-phase power supply and has a power rating of 1 hp.

  • Type: Two-stage
  • Pump type: Centrifugal
  • Impeller: Stainless steel
  • Power supply: Electric
  • Voltage: Three-phase, 380 V
  • Power: 1 hp
  • Head: 35 m
  • Flow rate and head: 1.8 m³/h at 33 m, 3 m³/h at 31 m, 4.2 m³/h at 27 m, 6 m³/h at 16 m
  • Ports: 1'' x 1''
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01A29

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Manometric Head
35 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
