The brightness of 3,800 ANSI Lumens and the high contrast ratio of 22,000:1 ensure the production of bright images in any environment, including high-light areas.
Professional projector with impressive visual performance
The ViewSonic PA503W offers impressive visual performance in meeting rooms and classrooms. With higher brightness and longer lamp life, it guarantees to reproduce the finest details in any environment for a much longer period. ViewSonic's exclusive SuperColour technology offers a wider color range, ensuring faithful accuracy in both bright and dark environments without sacrificing image quality.
Bright images in any environment
The brightness of 3,800 ANSI Lumens and the high contrast ratio of 22,000:1 ensure the production of bright images in any environment, including high-light areas.
Amazing Color Accuracy
ViewSonic's SuperColour technology displays a wide range of visible colors, ensuring that users enjoy more realistic and accurate colors in both bright and dark environments, without sacrificing image quality.
Detailed Projection Setup
Choose from 5 unique preset projection modes to ensure the best settings for your use:
- Presentation Mode: High brightness and high contrast ratio for presentations in brightly lit environments
- Movie Mode: Saturated color for a better movie-watching experience in dark environments
- Standard Mode: Enhanced color, similar to that of a computer
- Brighter Mode: For environments where maximum brightness is required
- Photo Mode: Natural color for general viewing
Immersive 3D Projection
The HDMI port of the PA503W allows users to project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players.
Extended Lifespan
Users can select different lamp modes to extend its lifespan. When the power-saving setting is enabled and there is no signal input, the projector will automatically switch to Eco Mode and SuperEco Mode.
- Eco Mode: Automatically switches from Normal mode to Eco mode whenever it remains idle for 5 minutes.
- SuperEco Mode: When no signal input is received for 20 minutes, the projected images dim to 70%, extending the lamp life to an average of 15,000 hours.
Automatic Sleep Timer
Forgetting to turn it off is a common occurrence, especially in public spaces such as classrooms and meeting rooms.
The PA503W's sleep timer allows you to select an idle period that will determine when it should automatically enter sleep mode.
Focus Capabilities
Using the Blank Timer, the presenter can refocus the audience's attention on them by hiding the screen image at different points during the presentation. Additionally, the Blank Timer can also be used as a reminder for when breaks should be taken.
Reduced Input Lag
This projector offers smooth images without delay. The ultra-low input lag of 16ms provides faster frame-by-frame action.
Quick Power Off Function
With the quick shutdown feature, it can be turned off in just a few seconds. This allows you to pack the projector without having to worry about the internal fan still running.
Package Contents:
- Projector
- Power cable
- VGA cable
- Remote control
- Quick start guide
- Air filter: RSPL
Details:
- Projection system: 0.65" WXGA
- Native resolution: 1280x800
- Brightness: 3800 ANSI Lumens
- Contrast ratio with SuperEco mode: 22000:1
- Screen color: 1.07 billion colors
- Light source type: Lamp
- Light source life (hours) in normal mode: 5000
- Light source life (hours) in SuperEco mode: 15000
- Lamp wattage: 200W
- F=2.56-2.68, f=22-24.1mm
- Projection offset: 100%+/-5%
- Throw ratio: 1.55-1.70
- Optical zoom: 1.1x
- Digital zoom: 0.8x-2.0x
- Image size: 30"-300"
- Projection distance: 1m-10.98m (100" @3.34m)
- Keystone: +/- 40° (V)
- Noise (normal): 31dB
- Noise (Eco): 27dB
- Input lag: 16ms
- Resolution support: (640 x 480) to Full HD (1920 x 1080)
- HDTV compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Video compatibility: NTSC, PAL, SECAM
- Horizontal frequency: 15K-102KHz
- Vertical scan rate: 23-120Hz
- Dimensions: 294x218x110 mm
- Weight: 2.2 kg
Product Guides
Light Source Specifications
- Projection Technology
- DLP (DMD)
- Light Source
- Simple Lamp
- Light Source Power
- 200 W
- Light Source Life (Maximum)
- 15000 hrs
- Brightness
- 3800 ANSI Lumens
Display & Image Features
- Native Resolution
- 1280 x 800
- Maximum Resolution
- 1920 x 1080
- Throw Ratio
- 1.7 :1
- Contrast
- 22000 :1
- Image Size
- 30 - 300 "
- Projection Distance
- 0.99 - 10.98 m
- Focus
- Manual Focus
- Aspect Ratio
- 16:10
Main Specifications
- Use
- Professional
- Noise Level
- 31 dB
- Portable (Mini)
- No
- Built-in Speakers
- Yes
- 3D Playback
- Yes
- Miracast / Screen Mirroring
- No
- Android Operating System
- No
- WiFi Ready
- No
- Chromecast Built-In
- No
- Weight
- 2.2 kg
- Colour
- Grey
- Connectivity

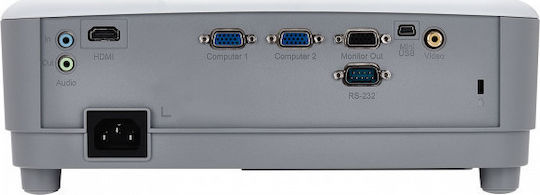

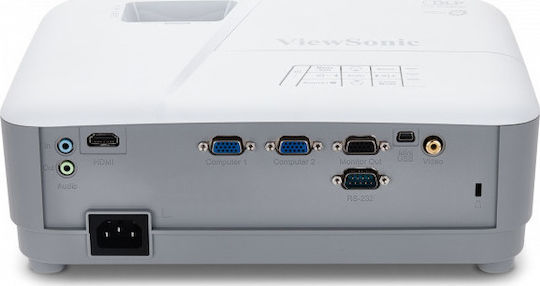

- Analog Audio, AUX, Composite Video, Ethernet, HDMI, RS-232, VGA
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
