For connection in a simple standard installation, you only need Lx-phase and L1-return. L2 is for another use; DO NOT connect phase or neutral... at best, a fuse will blow or it will burn out...
For anyone saying it doesn't work properly, read about PID (Proportional Integral Derivative) before throwing it away or replacing it.

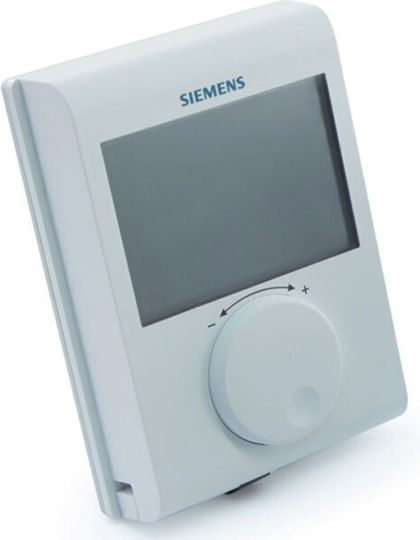

As for the device itself, it's a cheap Chinese product with the name of a well-known brand.
The knob has distinct positions in half its rotation and in the other half not; it doesn't always read all positions linearly, it skips some in a random order, not in a specific place.

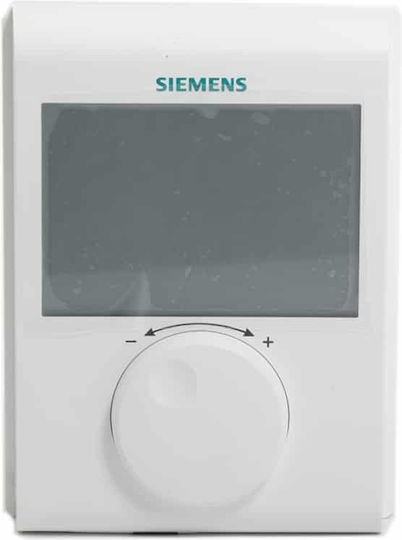

A disadvantage is the lack of screen lighting and an on/off switch to avoid excessive use of the knob.
Since it is a PID, I would like it to have custom settings for the P, I, and D values and not standard preset ones...

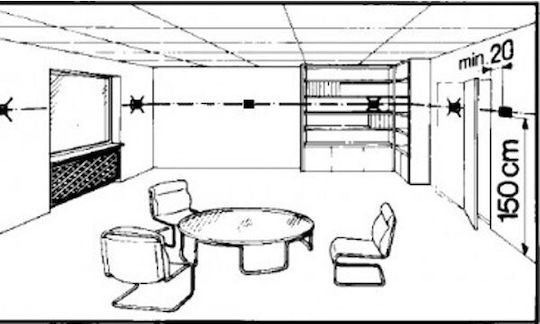

Even though it has an NTC thermistor that provides sufficient accuracy for its intended use, the location where it is installed probably limits its response and accuracy.
Για σύνδεση σε απλή τυπική εγκατάσταση χρειάζεται μονο Lx-φάση L1-επιστροφή.
Το L2 είναι για άλλη χρήση ΔΕΝ συνδέουμε φάση η ουδέτερο... στη καλετερη θα πέσει κάποια ασφάλεια ή θα καεί...
Για οποιον λέει ότι δεν δουλεύει σωστά ας διαβάσει σχετικά με PID (Proportional Integral Derivative) πριν τον πετάξει - αντικαταστήσει.
Στα περί της συσκευής φθηνή κινεζια με το όνομα γνωστής- επώνυμης φίρμας,
Η ροδέλα στη μισή περιστροφή έχει ευδιάκριτες θέσεις και στο άλλο μισό όχι,.δεν διαβάζει πάντα γραμμικά όλες τις θέσεις χάνει κάποιες με τυχαία σειρά όχι κάπου συγκεκριμένα.
Μειονέκτημα η έλλειψη φωτισμού οθόνης και διακόπτη on off για να αποφεύγετε η υπρβολική χρήση της ροδέλας.
Μιας και είναι PID θα ήθελα να έχει custom ρυθμίσεις για τις τιμές P Ι και D και όχι standard προρυθμισμένες...
Αν και έχει NTC thermistor που δίνει αρκετή ακριβεια για τη χρήση που προοριζεται μαλλον το σημείο που ειναι τοποθέτημενο περιοριζει την αποκριση και ακρειβεια του.
