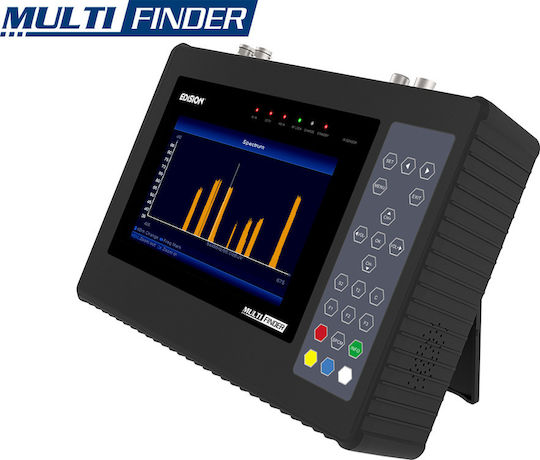

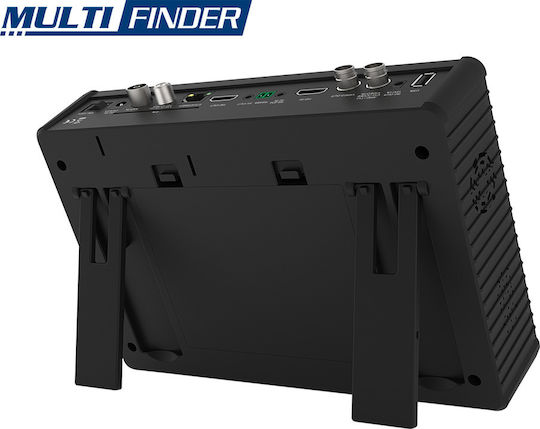

Edision Electronical Signal Level Meter Multi-Finder DVB-C / DVB-S / DVB-S2 / DVB-T / DVB-T2 with Screen 7" 07-01-0101

The Edision Multi-Finder digital field meter measures DVB-S/S2 satellite, DVB-T/T2 terrestrial digital and DVB-C cable signals, and also tests CCTV systems. Its 7" colour LCD displays images from AHD,...

The Edision Multi-Finder digital field meter measures DVB-S/S2 satellite, DVB-T/T2 terrestrial digital and DVB-C cable signals, and also tests CCTV systems. Its 7" colour LCD displays images from AHD, TVI, CVI and CVBS cameras via BNC and AV inputs. It supports H.265 HEVC decoding and includes a spectrum analyser and a constellation diagram for DVB-S/S2...

See full description See full description

Learn more about invoicing

Description

Description

The Edision Multi-Finder digital field meter measures DVB-S/S2 satellite, DVB-T/T2 terrestrial digital and DVB-C cable signals, and also tests CCTV systems. Its 7" colour LCD displays images from AHD, TVI, CVI and CVBS cameras via BNC and AV inputs. It supports H.265 HEVC decoding and includes a spectrum analyser and a constellation diagram for DVB-S/S2 satellite signals.

It supports DiSEqC 1.0, 1.1 and 1.2, USALS and Unicable, as well as azimuth, elevation and LNB position calculations. It can supply power to an LNB and terrestrial antenna, provides a 12 V/1 A DC output for cameras, supports PTZ control via RS485, and includes HDMI and AV inputs and outputs. The removable lithium battery has a capacity of 6300 mAh, while the USB Wi-Fi connection supports YouTube, RSS Reader, Weather and WEB-TV apps. The memory holds 6000 TV and radio channels, with the option to edit the favourites list, and the software can be updated via USB and HTTP.

  • Type: Digital field meter
  • Receivers: DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
  • Display: 7" colour LCD
  • Decoding support: H.265 HEVC
  • Control protocols: DiSEqC 1.0, 1.1, 1.2, USALS, Unicable, RS485 for PTZ

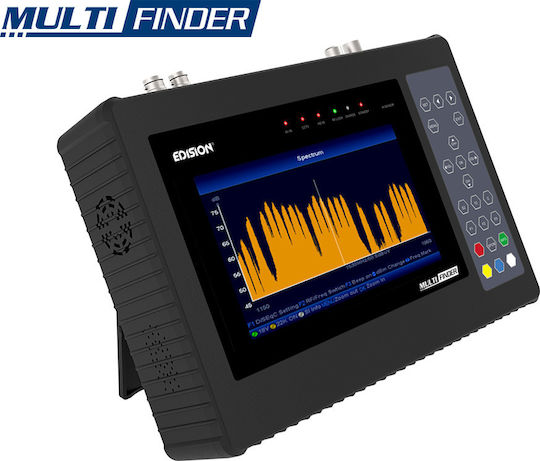

  • Spectrum analyser: Built-in
  • Constellation diagram: For DVB-S/S2 satellite signals
  • Calculations: Azimuth, elevation and LNB position
  • Channel memory: 6000 TV and radio channels
  • CCTV testing: AHD, TVI and CVI up to 4 MP, CVBS (576)

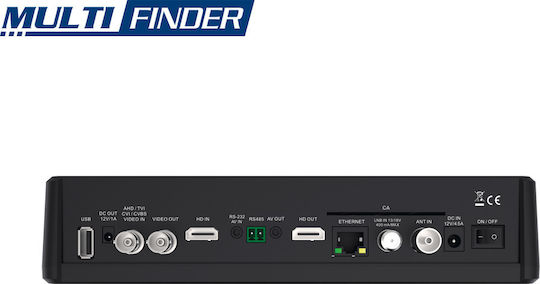

  • Inputs: HDMI, AV, BNC, DC IN, ANT IN, LNB IN, LAN, HD IN, RS232/AV IN, USB
  • Outputs: HDMI, AV, BNC, DC OUT, RS485, HD OUT
  • Output power: DC 12 V/1 A, LNB and terrestrial antenna
  • Battery: Removable 6300 mAh lithium battery
  • Wireless connection: USB Wi-Fi
  • Apps: YouTube, RSS Reader, Weather, WEB-TV
  • Reader: Smart card
  • Software updates: Via USB and HTTP
  • Weight: 2 kg
  • Dimensions: 233 x 165 x 50 mm
  • Colour: Black

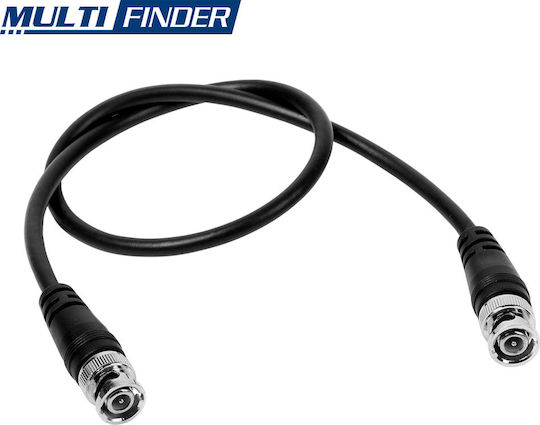

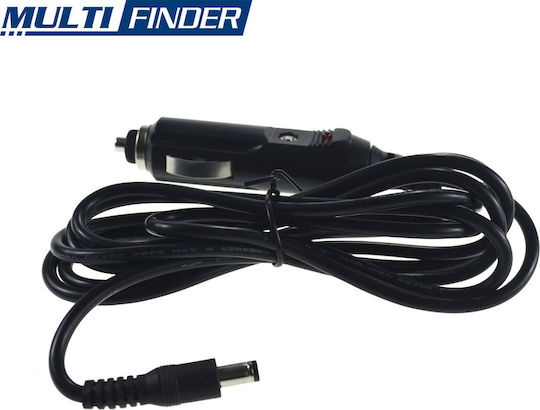

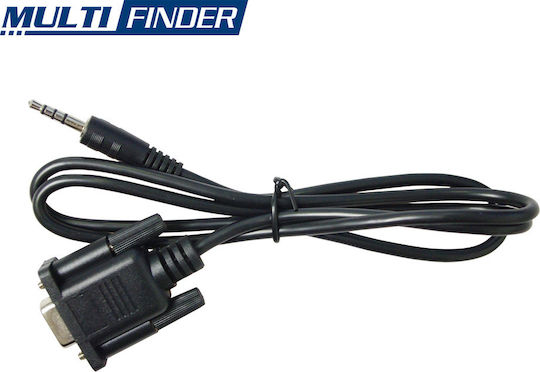

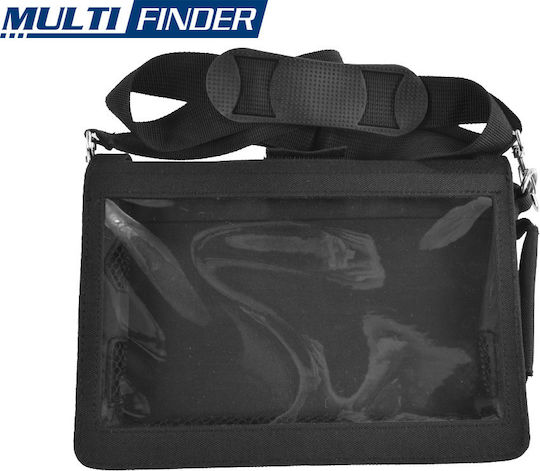

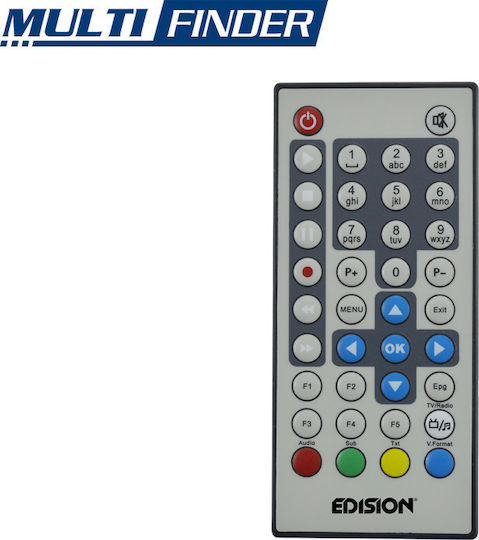

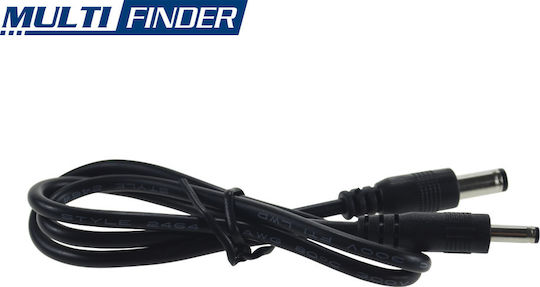

  • Package contents: User manual EN/DE/GR, protective case, carrying bag, remote control, car charger, Jack-to-AV cable, Jack-to-RS232 cable, BNC-to-BNC cable, DC-out cable, power adapter

Manufacturer

See full description

Specifications

Specifications

Type
Electronical
Receiver
DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Screen
Yes
Screen Size
7 "
Weight
2000 gr

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (10)

Reviews

  1. 6
  2. 1
  3. 3 stars
    0
  4. 1
  5. 2
Review this product

What do users say? AI-generated summary

Overall, users appreciate its many features and ease of use, while many find its measurements satisfactory. They also mention easy firmware updates and good battery life from the removable battery. However, some report malfunctions and unreliable or inconsistent readings, particularly for terrestrial signals.

  • George_Diamantidis846
    1
    2 out of 2 members found this review helpful

    Verified purchase

    have had 3 years and have not used more than 50 times. First year switch ( on off ) came apart. Then I replaced battery twice. . Now it keeps beeping and warning me that lnb is short circuit. Total default and upgrade in firmware has not fixed this issue. Works well when working but I wouldn't recommend it. Actually I was shopping for replacement when I saw it advertised and decided maybe I should warn people about it.

    Translated from Greek ·
    Did you find this review helpful?
  • tonystr9
    1
    4 out of 4 members found this review helpful

    For an amateur who will use it once a year, it says something about a professional. Nothing has gone wrong already three times, unreliable measurements on the ground. The company, as a service, is trying to do something but when the product doesn't do what it's supposed to, even the best can't help you

    Translated from Greek ·
    Did you find this review helpful?
  • petasis
    2
    9 out of 11 members found this review helpful

    It has many capabilities (not necessarily useful as a field meter) and support from the manufacturer with firmware updates, but in my case the measurements deviate significantly from the result. I will focus on the DVB-T measurements: MER and constellation diagram are completely missing. The measurement at the antenna is 56dBμV level, 31db C/N, BER 0.00E-7. With these measurements, the bars are 84% level (!), and 90% quality. In the first cloudy weather, I have image breakups.

    I contacted their technical service, in short, they measure what they measure (meaning they will never add MER measurement or constellation to DVB-T), they don't explain how they calculate C/N in digital and what it means (which is a measurement that comes from the analog era when the spectrum did not have many carriers) - so no one knows what is really being measured. When I asked why the quality bar does not become 100% when the BER becomes 0.00E-7, I did not get an answer (there was a mention that the signal level is involved (!) or that I see 0 but it is a small value).

    In the discussion that as an amateur, if I rely on the 84% level and 90% quality, I do not have good reception for cloudy weather, we concluded that I lack knowledge and experience.

    In general, for satellite (where there are more measurements) you will do something (as I did for NOVA/OTE and I have no issues with cloudy weather and rain). For terrestrial digital, you will NOT do the job, important measurements are missing and what is measured is not clear how they measure it, and the measurements do not seem to converge. For terrestrial, definitely get another device.

    Translated from Greek ·
    Did you find this review helpful?
  • pag57
    5
    6 out of 6 members found this review helpful

    It is a fairly good instrument for its price. The battery, removable 6300mAh, lasts quite a long time, the indications are quite accurate, compared to very expensive instruments. It can be upgraded very easily and the edition supports it.

    Translated from Greek ·
    Did you find this review helpful?
  • Verified purchase

    It does its job correctly and it is very easy to use.

    Translated from Greek ·
    Did you find this review helpful?
  • Verified purchase

  • Verified purchase

  • Verified purchase

  • Verified purchase

  • have had 3 years and have not used more than 50 times. First year switch ( on off ) came apart. Then I replaced battery twice. . Now it keeps beeping and warning me that lnb is short circuit. Total default and upgrade in firmware has not fixed this issue. Works well when working but I wouldn't recommend it. Actually I was shopping for replacement when I saw it advertised and decided maybe I should warn people about it.

    Translated from Greek ·
    2
  • For an amateur who will use it once a year, it says something about a professional. Nothing has gone wrong already three times, unreliable measurements on the ground. The company, as a service, is trying to do something but when the product doesn't do what it's supposed to, even the best can't help you

    Translated from Greek ·
    4
  • It has many capabilities (not necessarily useful as a field meter) and support from the manufacturer with firmware updates, but in my case the measurements deviate significantly from the result. I will focus on the DVB-T measurements: MER and constellation diagram are completely missing. The measurement at the antenna is 56dBμV level, 31db C/N, BER 0.00E-7. With these measurements, the bars are 84% level (!), and 90% quality. In the first cloudy weather, I have image breakups.

    I contacted their technical service, in short, they measure what they measure (meaning they will never add MER measurement or constellation to DVB-T), they don't explain how they calculate C/N in digital and what it means (which is a measurement that comes from the analog era when the spectrum did not have many carriers) - so no one knows what is really being measured. When I asked why the quality bar does not become 100% when the BER becomes 0.00E-7, I did not get an answer (there was a mention that the signal level is involved (!) or that I see 0 but it is a small value).

    In the discussion that as an amateur, if I rely on the 84% level and 90% quality, I do not have good reception for cloudy weather, we concluded that I lack knowledge and experience.

    In general, for satellite (where there are more measurements) you will do something (as I did for NOVA/OTE and I have no issues with cloudy weather and rain). For terrestrial digital, you will NOT do the job, important measurements are missing and what is measured is not clear how they measure it, and the measurements do not seem to converge. For terrestrial, definitely get another device.

    Translated from Greek ·
    9
  • It is a fairly good instrument for its price. The battery, removable 6300mAh, lasts quite a long time, the indications are quite accurate, compared to very expensive instruments. It can be upgraded very easily and the edition supports it.

    Translated from Greek ·
    6
  • It does its job correctly and it is very easy to use.

    Translated from Greek ·
    0
  • See all
