- The Ajax Hub optimizes the performance of every peripheral in the alarm system. It supervises and manages all network devices, simultaneously collecting data using the advanced Jeweller wireless management protocol. The Hub analyzes risk data, filters out false alarms, and notifies you when there is a real threat. Its protection against sabotage makes it a reliable solution for the space it safeguards.
The following information concerns the Ajax Hub system
It is the brain of the Ajax alarm system.
- The Ajax Hub optimizes the performance of every peripheral in the alarm system. It supervises and manages all network devices, simultaneously collecting data using the advanced Jeweller wireless management protocol. The Hub analyzes risk data, filters out false alarms, and notifies you when there is a real threat. Its protection against sabotage makes it a reliable solution for the space it safeguards.
Simple installation, professional level
- The system can be easily installed within 30 minutes using interactive instructions and SmartBracket mounting bases.
- The connection quality, sensor detection area, and electromagnetic noise levels can be checked remotely.
- Peripherals connect to the Ajax Hub with a single click.
Maximum Performance
- The Jeweller wireless transmission technology allows the Ajax Hub to securely monitor all wireless peripherals at a distance of up to 2,000 meters in open field or in a multi-floor business environment.
- The ARM processor type offers additional power for critical tasks. It uses Ethernet connection with backup GSM communication.
- It can work with up to 100 wireless peripherals simultaneously.
- The system can support up to 50 users and connect to a signal receiving center for monitoring via the Contact ID protocol.
Easy Operation
- The system operates even with very poor wireless connections: the operation is based on communication at a speed of only 0.5 kbit/s.
- Two-way communication technology enhances the periodic check of peripherals.
- Firmware and software upgrades are free and automatic.
- The system can be easily managed via the remote control on your keys, using the Ajax app on your smartphone or via a web browser on your computer.
- The Ajax Hub securely stores all operational incidents in a history log.
- Geofence technology reminds you to arm the system when you leave the area and to disarm it when you return.
Protection from intruders and operational issues
- All buttons and ports are hidden inside the body of the HUB.
- Autonomy up to 15 hours with the backup battery. The system communication supervision can be set from 12-300 seconds.
- Technologies for protection against jamming, communication channel encryption, and signal identity confirmation.
- The Ajax Hub automatically selects and switches to an operational communication channel in case of failure. In case of loss of GSM backup communication signal, you receive immediate notification.
- The Ajax Hub always keeps you informed using the DeliverAnyway communication algorithm even in cases of network issues.
Technological masterpiece
- The very slim AC power adapter is integrated into the body of the Hub
- The Ajax Hub is less than 4cm thick.
Technical Specifications Ajax Hub
- Size: 162.7×162.7×35.9 mm
- Weight: 320 gr
- Operating Voltage: 110-250 V AC
- Wireless Communication Power: 25 mW
- Operating Temperature Range: From 0°С to +40°С
- Connectivity: GSM (850/900/1800/1900 MHz), Ethernet
- Communication Protocol: Jeweller (868.0-868.6 MHz)
- Compatible SIM Cards: Micro SIM 2G
- Communication Range: Up to 2,000 m (in open area)
- Backup Battery: Li-Ion 2 Ah (autonomy time up to 15 hours*)
- Smartphone App: iOS 9.1 or later, Android 4.1 or later
- Video Monitoring: Up to 10 IP cameras with RTSP protocol
- Maximum Number of Users: 50
- Maximum Number of Peripherals: 100
- Tamper Protection: Available
The following information concerns the Ajax MotionProtect system

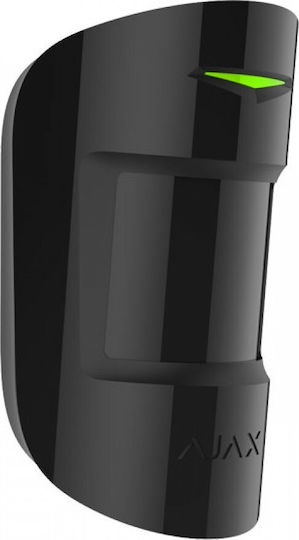

PIR motion detector with pet immunity function.
- The Ajax MotionProtect detects the first step of an intruder on your property but ignores pets.
- Operates for up to 7 years without battery replacement.
- Accurately detects motion in extreme conditions, even at temperatures of +40°С.
Maximum Performance
- Operates at a distance from the HUB up to 1,700 meters in open field or in a multi-story business space.
- Detects motion up to 12 meters away.
- Detects the first step of the intruder. Processes detection signals digitally.
Easy Operation
- Adjustable to three different sensitivity levels.
- Uses the SmartMotion algorithm to avoid false alarms from pets weighing less than 20kg.
- Eliminates false alarms from equipment causing electromagnetic interference, using the FresnelTech optical component made of POLY IR4 material and Excelitas PIR sensor.
- Operates under almost all conditions due to its digital temperature compensation technology.
- The two-way communication technology enhances periodic peripheral checks and easy configuration.
- Has a battery life of up to 7 years.
Simple installation, professional level
- There is no need to open the detector's casing during installation due to the SmartBracket mounting bases.
- The connection quality and the sensor's detection area can be checked remotely.
- Peripherals connect to the Ajax Hub with a single click.
- It can be used in alarm systems from other manufacturers using the uartBridge and ocBridge Plus extensions.
Technical Specifications Ajax MotionProtect
- Detector type: Wireless
- Usage: Indoor
- Detection range: Up to 12 m
- Sensitivity: 3 adjustment levels (low, medium, high)
- Detection angle: 88.5° horizontal / 80° vertical
- Recommended installation height: 2.4 m
- Pet immunity option: Weight up to 20 kg, height up to 50 cm
- Wireless transmission power: 20 mW
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Maximum distance between detector and central unit (HUB): Up to 1,700 m (in open area)
- Power supply: CR123A battery
- Power supply voltage: 3 V
- Battery life: Up to 7 years
- Operating temperature range: From 0°C to +50°C
- Operating humidity: Up to 80%
- Dimensions: 110x65x50 mm
The following information concerns the Ajax DoorProtect system
Magnetic door and window detector.
- With their small size, high-quality detection, and wireless communication, Ajax DoorProtect detectors can protect doors and windows on various floors of homes and offices.
Maximum Performance
- Operates at a distance from the HUB up to 1,200 meters in open field or in a multi-story business space.
- Allows the connection of a wired magnetic contact.
- Can be used in alarm systems of other manufacturers using the uartBridge and ocBridge Plus extensions.
Easy Operation
- Uses English-made magnetic (reed) switches that can be activated 1,000,000 times without issue.
- The two-way communication technology enhances periodic monitoring of peripherals and easy configuration.
- Saves energy by efficiently adjusting consumption based on the distance from the Ajax Hub.
- Has a battery life of up to 7 years with communication supervision every 1 minute.
Simple installation, professional level
- There is no need to open the detector casing during installation due to the SmartBracket mounting bases.
- Uses powerful magnets that can be installed up to 2 centimeters away from the main body of the contact.
- The quality of the connection and the sensor detection method can be checked remotely.
- The peripherals connect to the Ajax Hub with a single click.
Technical Specifications Ajax DoorProtect
- Detector type: Wireless
- Mounting: Surface mount
- Distance from magnet: Up to 1 cm (small magnet), up to 2 cm (large magnet)
- Usage: Indoor
- Input for wired contact connection: Available
- Tamper protection: Available
- Wireless transmission power: 20 mW
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Maximum distance between detector and central unit (HUB): Up to 1,200 m (in open area)
- Power supply: CR123A battery
- Power supply voltage: 3 V
- Battery life: Up to 7 years
- Operating temperature range: From 0°C to +50°C
- Operating humidity: Up to 80%
- Dimensions: 20×90 mm
The following information pertains to the Ajax SpaceControl system

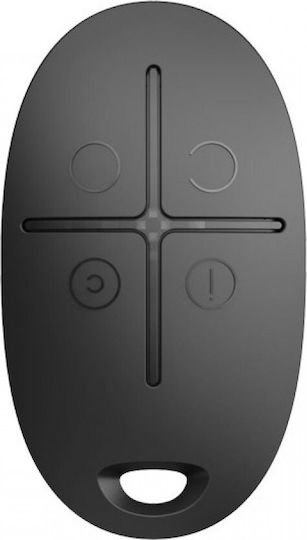

Remote control with panic button.
- With rolling code technology and signal identity verification, the Ajax SpaceControl operates at a distance of up to 1,300 meters from the Ajax Hub in open space. With one press, the device activates full or partial arming of a space. The system status is indicated by light signals.
Maximum Performance
- Operates at a distance from the HUB up to 1,300 meters in open field or in a multi-floor business space.
- Can be used in alarm systems of other manufacturers with the use of uartBridge and ocBridge Plus extensions.
- Features a panic button.
- Can partially arm the alarm system (Stay).
Easy Operation
- With two-way communication technology with the HUB, the remote control confirms the sending of each command.
- The user can disable the panic button to avoid pressing it by mistake.
Connection and usage
- Ready to use right out of the box!
- The battery is pre-installed so there is no need to open the remote control casing.
- Connects to the Ajax Hub with just one click through the app.
Technical Specifications Ajax SpaceControl
- Number of keys: 4
- Panic button: Available
- Alarm cancellation button: Available
- Wireless transmission power: 20 mW
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Maximum remote control distance – central HUB unit: Up to 1,300 m (in open area)
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Power supply: CR2032 battery
- Power supply voltage: 3 V
- Battery life: Up to 3 years
- Operating temperature range: From -20°C to +50°C
- Operating humidity: Up to 90%
- Dimensions: 65x37x10 mm
Type
- Wireless
- Yes
- Motion Sensor
- Yes
- Remote Control
- Yes
- Siren
- No
- Door/Window Sensor
- Yes
- Camera
- No
- Autonomic
- No
- Keyboard
- No
- Hub
- Yes
Quantity
- Motion Sensor
- 1
- Door/Window Sensor
- 1
- Remote Control
- 1
Attributes
- Connectivity
- GSM
