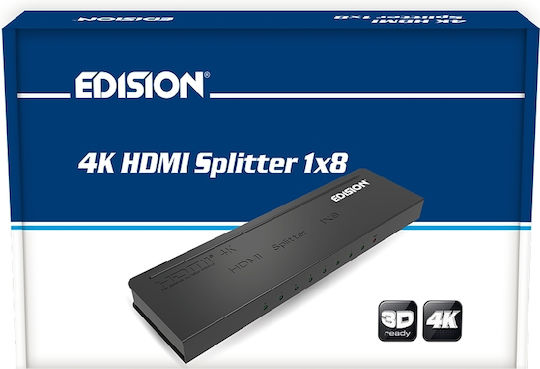

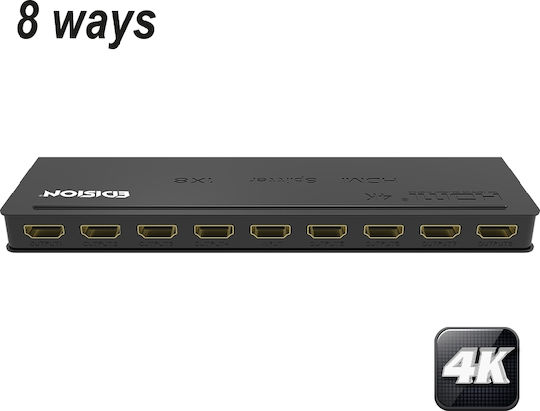

The Edision 4K 1x8 HDMI splitter distributes the signal from one HDMI source to up to eight HDMI displays or projectors. It can also be placed at the end of an HDMI cable to regenerate the signal and supports resolutions up to 3840 x 2160 at 30 Hz.
Plug and Play operation requires no additional setup. It supports 3D, HDCP and 8-, 10- or 12-bit color depth. Supported audio formats include DTS-HD, Dolby TrueHD, DTS, Dolby AC-3 and DSD.
- HDMI inputs: 1
- HDMI outputs: 8
- HDMI version: 1.4b
- Resolution: Up to 3840 x 2160 at 30 Hz
- Support: 3D, HDCP
- Color depth: 8, 10 or 12 bit
- Maximum bandwidth: 340 MHz
- Maximum data rate: 3.4 Gbps
- HDMI cable length: Up to 10 m in each direction with a passive cable

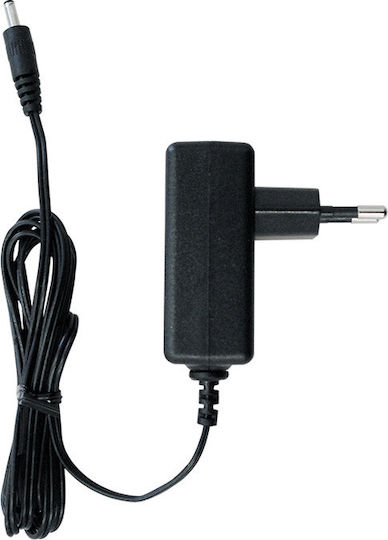

- Power supply: External power adapter, AC input 100–240 V at 50/60 Hz and DC output 5 V
- Maximum operating current: 500 mA
- Operating temperature: -15 to +55 °C
- Operating humidity: 5–90% RH, non-condensing
- Dimensions: 205 x 60 x 18 mm
- Package contents: Splitter, AC/DC power adapter, user manual in Greek, German and English
- Type
- HDMI Splitter
