Main Specifications
- Colour
- Black
- Size
- Midi Tower
- Compatible Motherboard Type
- Mini ITX, Micro ATX
Dimensions
- Height
- 390 mm
- Width
- 205 mm
- Length
- 380 mm
Internal Spaces
- Maximum Graphics Card Length
- 350 mm
- Maximum Processor Heatsink Height
- 155 mm
Drive Bays
- Internal Hub 3.5"
- 2
- Internal Hub 2.5"
- 2
Fan Positions
- Front
- 3
- Rear
- 1
- Top Positions
- 2
Water Cooling
- Radiator Position
- Front, Back
Specifications
- Connectivity
- Audio, USB 2.0, USB 3.0
- Extras
- Side Window
- Gaming
- Yes
- Airflow
- Yes
- Home & Office
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

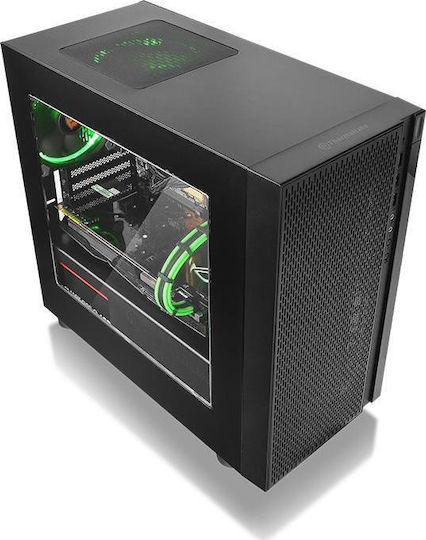

Micro tower case Versa H18 by Thermaltake with modern design and LED lighting on the front panel. It is equipped with a full acrylic transparent side panel that showcases the interior of the tower. It can accommodate up to 5 fans in total, 3x 120mm or 2x 140mm in the front, 1x 120mm (pre-installed) in the rear, and 1x 120mm or 1x 140mm on the top. It is compatible with graphics cards up to 350mm in length and can accommodate a CPU cooler up to 155mm in height.

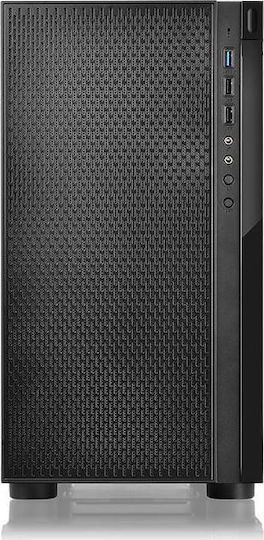

- Modern design with LED lighting on the front panel

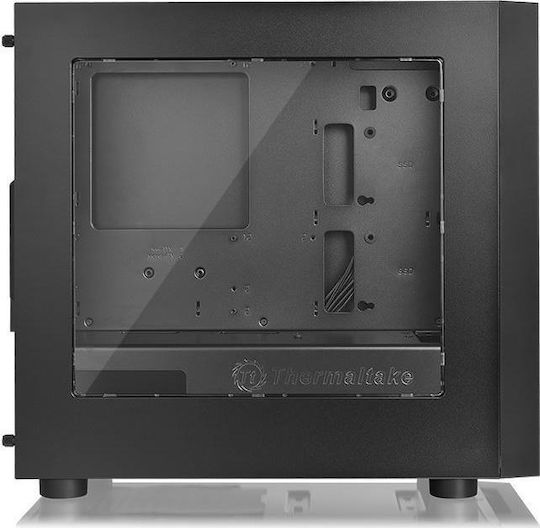

- Full acrylic transparent side panel

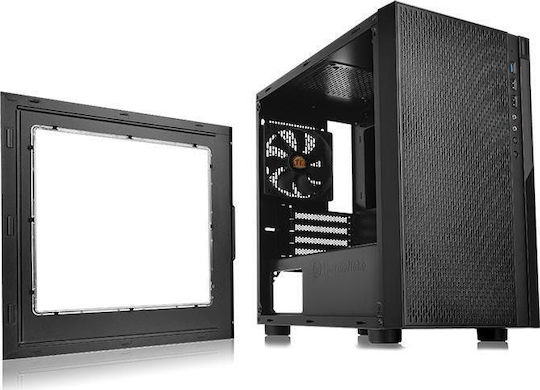

- Screw-open transparent side panel
- Equipped with 1x 120mm fan
- Supports motherboards up to M-ATX
- Supports PSUs up to 220mm in length
- Supports graphics cards up to 350mm in length
- Supports CPU coolers up to 155mm in height
- Compatible with water cooling systems
- Removable magnetic dust filters for quick & easy cleaning
Technical specifications:
- Case type: Micro
- Case Dimension (HxWxD): 398x205x439mm
- Net weight: 4.5kg
- Side panel: Transparent Window
- Color: Black exterior & interior
- Material: SPCC
- Cooling system: Rear (exhaust): 120x120x25mm fan (1000rpm, 16 dBA)
- Drive bays: 2x 2.5", 2x 3.5"
- Expansion slots: 4
- Motherboards: 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
- I/O port: 1x USB 3.0, 2x USB 2.0, 1x HD Audio
- PSU: Standard PS2 PSU (optional)
- Fan support:
- Front: 3x 120mm, 2x 140mm
- Top: 1x 120mm, 1x 140mm
- Rear: 1x 120mm
- Radiator support:
- Front: 1x 240mm, 1x 280mm
- Rear: 1x 120mm
- Clearance:
- CPU cooler height limitation: 155mm
- PSU length limitation: 220mm
- VGA length limitation: 350mm (Without Front Fan)
Product packaging: Factory packaging in printed carton box.
Package contents: PC case, 120mm fan (pre-installed), installation kit (screws, cable ties, etc.), manual.
