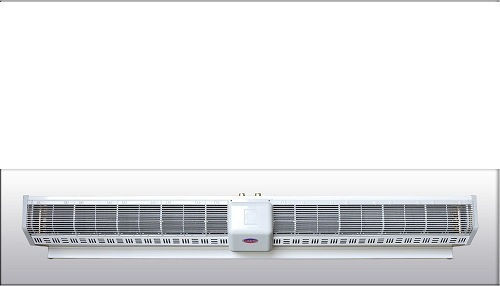

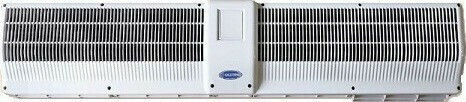

Olefini KWH-15W Water Heated Air Curtain with Maximum Air Supply 1200m³/h 140cm
Air Curtains

Olefini KWH-15W Water Heated Air Curtain with Maximum Air Supply 1200m³/h 140cm

Features:

  • Max opening width: 1.4m
  • Max opening height: 2.3m
  • Max air outlet velocity: 7.0/5.5 m/sec
  • Max air flow rate: 1200/950m3/h
  • Motor input power: 240W
  • Motor operating capacitor: 4μF
  • Total water volume:...

Features:

  • Max opening width: 1.4m
  • Max opening height: 2.3m
  • Max air outlet velocity: 7.0/5.5 m/sec
  • Max air flow rate: 1200/950m3/h
  • Motor input power: 240W
  • Motor operating capacitor: 4μF
  • Total water volume: 0.91lit
  • Noise level at 1m: 54/50dB(A)
  • Total length: 1406mm
  • Total width: 274mm
  • Height: 172mm
  • Outlet nozzle length: 1360mm
  • Outlet nozzle width: 54mm
  • Outlet nozzle height:...
See full description See full description

Top specs

  • Width

    140

    When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

  • Maximum Airflow

    The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.

  • Maximum Installation Height

    2.30

    Installation height according to the model specifications.

  • Type

    Water Heated

    Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
  • See all

Maximum air supply (m³/h)

  1. 1000

    from 829,00 €

  2. 1200

    from 882,00 €

  3. 2340

    from 1.110,00 €

Width

  1. 120 cm

    from 829,00 €

  2. 140 cm

    from 882,00 €

Learn more about invoicing
Review the product
Product report

Description

Description

Features:

  • Max opening width: 1.4m
  • Max opening height: 2.3m
  • Max air outlet velocity: 7.0/5.5 m/sec
  • Max air flow rate: 1200/950m3/h
  • Motor input power: 240W
  • Motor operating capacitor: 4μF
  • Total water volume: 0.91lit
  • Noise level at 1m: 54/50dB(A)
  • Total length: 1406mm
  • Total width: 274mm
  • Height: 172mm
  • Outlet nozzle length: 1360mm
  • Outlet nozzle width: 54mm
  • Outlet nozzle height: 64mm
  • Weight: 25Kg
  • Air inlet temperature / Water inlet temperature / Water flow rate: +15ºC / +70ºC / 0.6lit/sec
  • Thermal power: 11.1/9.6Kw
  • Air outlet temperature: 42.2/44.7 ºC
  • Water outlet temperature: 65.5/66.1 ºC
  • Water pressure drop ΔΡ: 3.4kPa
  • Air inlet temperature / Water inlet temperature / Water flow rate: +15ºC / +90ºC / 0.6lit/sec
  • Thermal power: 15.3/13.2Kw
  • Air outlet temperature: 52.4/55.7 ºC
  • Water outlet temperature: 83.7/84.6 ºC
  • Water pressure drop ΔΡ: 3.3kPa

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
1200 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
2.3 m

Maximum Placement Height: 2.30


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Motor Position
Center
Width
140 cm

Width: 140


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Features:

  • Max opening width: 1.4m
  • Max opening height: 2.3m
  • Max air outlet velocity: 7.0/5.5 m/sec
  • Max air flow rate: 1200/950m3/h
  • Motor input power: 240W
  • Motor operating capacitor: 4μF
  • Total water volume: 0.91lit
  • Noise level at 1m: 54/50dB(A)
  • Total length: 1406mm
  • Total width: 274mm
  • Height: 172mm
  • Outlet nozzle length: 1360mm
  • Outlet nozzle width: 54mm
  • Outlet nozzle height: 64mm
  • Weight: 25Kg
  • Air inlet temperature / Water inlet temperature / Water flow rate: +15ºC / +70ºC / 0.6lit/sec
  • Thermal power: 11.1/9.6Kw
  • Air outlet temperature: 42.2/44.7 ºC
  • Water outlet temperature: 65.5/66.1 ºC
  • Water pressure drop ΔΡ: 3.4kPa
  • Air inlet temperature / Water inlet temperature / Water flow rate: +15ºC / +90ºC / 0.6lit/sec
  • Thermal power: 15.3/13.2Kw
  • Air outlet temperature: 52.4/55.7 ºC
  • Water outlet temperature: 83.7/84.6 ºC
  • Water pressure drop ΔΡ: 3.3kPa

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
1200 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
2.3 m

Maximum Placement Height: 2.30


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
No
Motor Position
Center
Width
140 cm

Width: 140


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
