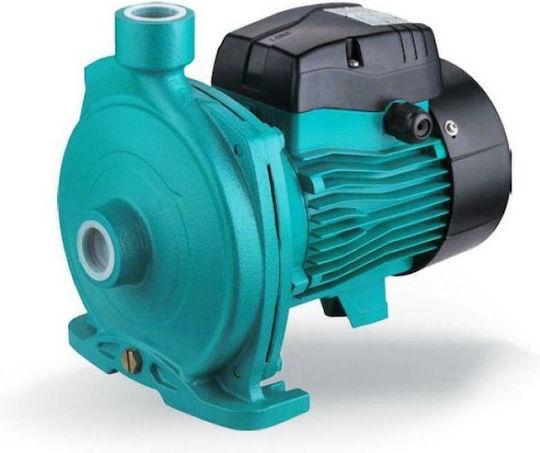

Leo Group ACm150L Electric Firefighting Surface Water Pump Centrifugal with Automatic Suction 2hp Single-Phase
Surface Water Pumps

Leo Group ACm150L Electric Firefighting Surface Water Pump Centrifugal with Automatic Suction 2hp Single-Phase Code: 01A03

The Leo Group ACm150L centrifugal water pump is designed for firefighting and features self-priming. This two-stage pump is installed horizontally and has a stainless steel impeller.

  • Power supply:...

The Leo Group ACm150L centrifugal water pump is designed for firefighting and features self-priming. This two-stage pump is installed horizontally and has a stainless steel impeller.

  • Power supply: Electric
  • Horsepower: 2 hp
  • Voltage: 220 V, single-phase
  • Pump type: Centrifugal
  • Stages: 2
  • Self-priming: Yes
  • Application: Firefighting
  • Installation: Horizontal
  • ...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase
  • Firefighting

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
176 90 €
Lowest price '26
Delivery by Fri, 06 Nov
14,00 €   shipping cost
Sent from Greece
From MdTools 5.0 (46)
5.0 (46 reviews)
Greece
See Water Pumps on the page of MdTools

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group ACm150L centrifugal water pump is designed for firefighting and features self-priming. This two-stage pump is installed horizontally and has a stainless steel impeller.

  • Power supply: Electric
  • Horsepower: 2 hp
  • Voltage: 220 V, single-phase
  • Pump type: Centrifugal
  • Stages: 2
  • Self-priming: Yes
  • Application: Firefighting
  • Installation: Horizontal
  • Impeller material: Stainless steel
  • Head: 38 m
  • Water flow rate and head: 6 m³/hour at 34 m, 9 m³/hour at 28 m, 12 m³/hour at 21 m, 13 m³/hour at 19 m
  • Inlet port: Front, 1''
  • Outlet ports: 1'' and 1+1/2''
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01A03

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
Yes
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
2 hp
Manometric Head
38 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group ACm150L centrifugal water pump is designed for firefighting and features self-priming. This two-stage pump is installed horizontally and has a stainless steel impeller.

  • Power supply: Electric
  • Horsepower: 2 hp
  • Voltage: 220 V, single-phase
  • Pump type: Centrifugal
  • Stages: 2
  • Self-priming: Yes
  • Application: Firefighting
  • Installation: Horizontal
  • Impeller material: Stainless steel
  • Head: 38 m
  • Water flow rate and head: 6 m³/hour at 34 m, 9 m³/hour at 28 m, 12 m³/hour at 21 m, 13 m³/hour at 19 m
  • Inlet port: Front, 1''
  • Outlet ports: 1'' and 1+1/2''
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01A03

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
Yes
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
2 hp
Manometric Head
38 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
