Leo Group AP220 Electric Surface Water Pump 3hp Three-Phase
Surface Water Pumps

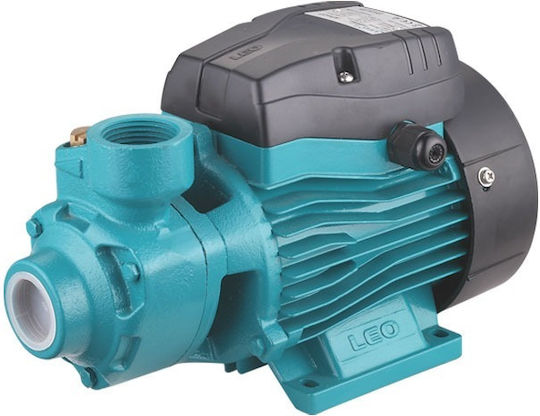

Leo Group AP220 Electric Surface Water Pump 3hp Three-Phase Code: 01066

The Leo Group AP220 electric surface pump is a peripheral-type pump with a brass impeller and 3 hp of power. Its horizontal installation and three-phase 380 V power supply are combined with a delivery...

The Leo Group AP220 electric surface pump is a peripheral-type pump with a brass impeller and 3 hp of power. Its horizontal installation and three-phase 380 V power supply are combined with a delivery head of up to 110 m.

  • Pump type: Peripheral
  • Impeller type: Brass
  • Power supply: Electric
  • Power: 3 hp
  • Voltage: Three-phase, 380 V
  • Installation: Horizontal
  • ...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
  • Voltage Three-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
226 50 €
Lowest price '26
Delivery by Fri, 06 Nov
56,00 €   shipping cost
Sent from Greece
From MdTools 5.0 (46)
5.0 (46 reviews)
Greece
See Water Pumps on the page of MdTools

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group AP220 electric surface pump is a peripheral-type pump with a brass impeller and 3 hp of power. Its horizontal installation and three-phase 380 V power supply are combined with a delivery head of up to 110 m.

  • Pump type: Peripheral
  • Impeller type: Brass
  • Power supply: Electric
  • Power: 3 hp
  • Voltage: Three-phase, 380 V
  • Installation: Horizontal
  • Delivery head: Up to 110 m

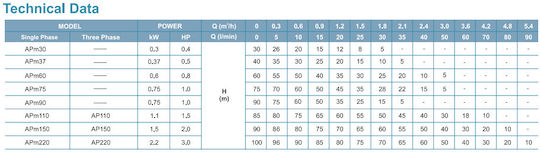

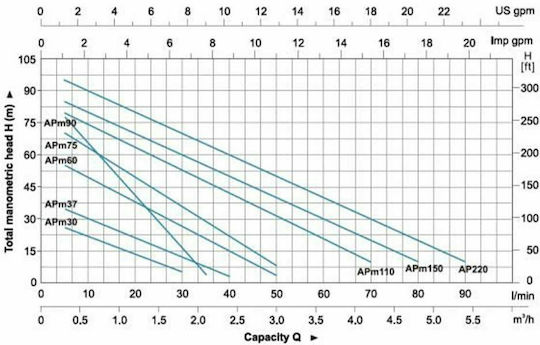

  • Water flow rate: 1.2 m³/h at 80 m, 1.8 m³/h at 70 m, 2.4 m³/h at 60 m, and 3.6 m³/h at 40 m
  • Ports: 1'' x 1''
  • Weight: 15 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01066

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Manometric Head
110 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group AP220 electric surface pump is a peripheral-type pump with a brass impeller and 3 hp of power. Its horizontal installation and three-phase 380 V power supply are combined with a delivery head of up to 110 m.

  • Pump type: Peripheral
  • Impeller type: Brass
  • Power supply: Electric
  • Power: 3 hp
  • Voltage: Three-phase, 380 V
  • Installation: Horizontal
  • Delivery head: Up to 110 m
  • Water flow rate: 1.2 m³/h at 80 m, 1.8 m³/h at 70 m, 2.4 m³/h at 60 m, and 3.6 m³/h at 40 m
  • Ports: 1'' x 1''
  • Weight: 15 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01066

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Manometric Head
110 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
