Pedrollo CPm 190 Electric Surface Water Pump Centrifugal with Automatic Suction 2hp Single-Phase
Surface Water Pumps

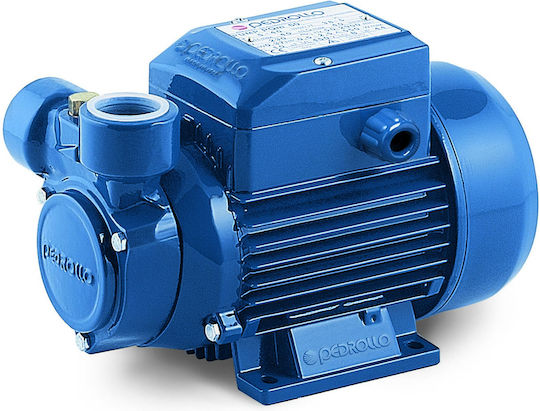

Pedrollo CPm 190 Electric Surface Water Pump Centrifugal with Automatic Suction 2hp Single-Phase Code: 44CI19A1

CENTRIFUGAL PUMPS OF MEDIUM PERFORMANCE

Suitable for use with clean water, without chemicals and corrosive elements that may affect the materials of the pump. Due to its easy, economical, and reliable...

CENTRIFUGAL PUMPS OF MEDIUM PERFORMANCE

Suitable for use with clean water, without chemicals and corrosive elements that may affect the materials of the pump. Due to its easy, economical, and reliable use, it is ideal for home use, with small or medium pressure tanks, or for irrigation or for transferring liquids.

The installation should be carried out in...

See full description See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
360 00 €
Delivery by Mon, 10 Aug
89,00 €   shipping cost
Sent from Greece
From Thermocity 4.8 (72)
4.8 (72 reviews)
Greece
20+ pieces
See Water Pumps on the page of Thermocity
Review the product
Product report

Description

Description

CENTRIFUGAL PUMPS OF MEDIUM PERFORMANCE

Suitable for use with clean water, without chemicals and corrosive elements that may affect the materials of the pump. Due to its easy, economical, and reliable use, it is ideal for home use, with small or medium pressure tanks, or for irrigation or for transferring liquids.

The installation should be carried out in well-ventilated areas, protected from extreme weather conditions.

  • Type: CPm 190
  • Pump Type: Centrifugal
  • Power Supply: Electric Current
  • Motor Power (Hp): 2
  • Power (hp-Watt): 2Hp-1500Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Inlet Diameter Φ (Inch-mm): 1 1/4"-32mm
  • Outlet Diameter Φ (Inch-mm): 1"-25mm
  • Max Head (M): 48
  • Max Flow Rate (m3/h): 8.4
  • Body Material: Cast Iron

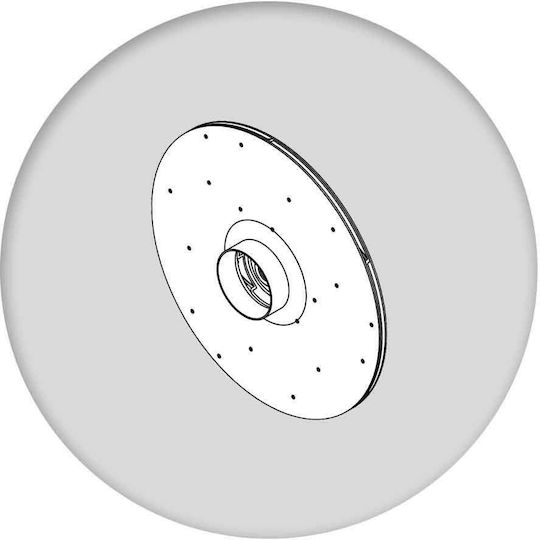

  • Impeller Material: Stainless Steel AISI 304
  • Liquid Temperature (°C): 90
  • Ambient Temperature (°C): 40
  • Automatic Suction (M): No
  • Suction Depth (M): 7
  • Net Weight (Kg): 21.5
  • Product Length (cm): 36.40
  • Product Width (cm): 24.20
  • Product Height (cm): 29.00

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
44CI19A1

Main Specifications

Type
Single Stage

Type

Single Stage
They have a wing, making maintenance quite easy. They are suitable for low pressure operations where a high flow rate is maintained (e.g. irrigation).
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
2 hp
Flow Rate
8.4 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
50 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
Pressure
5 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

CENTRIFUGAL PUMPS OF MEDIUM PERFORMANCE

Suitable for use with clean water, without chemicals and corrosive elements that may affect the materials of the pump. Due to its easy, economical, and reliable use, it is ideal for home use, with small or medium pressure tanks, or for irrigation or for transferring liquids.

The installation should be carried out in well-ventilated areas, protected from extreme weather conditions.

  • Type: CPm 190
  • Pump Type: Centrifugal
  • Power Supply: Electric Current
  • Motor Power (Hp): 2
  • Power (hp-Watt): 2Hp-1500Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Inlet Diameter Φ (Inch-mm): 1 1/4"-32mm
  • Outlet Diameter Φ (Inch-mm): 1"-25mm
  • Max Head (M): 48
  • Max Flow Rate (m3/h): 8.4
  • Body Material: Cast Iron
  • Impeller Material: Stainless Steel AISI 304
  • Liquid Temperature (°C): 90
  • Ambient Temperature (°C): 40
  • Automatic Suction (M): No
  • Suction Depth (M): 7
  • Net Weight (Kg): 21.5
  • Product Length (cm): 36.40
  • Product Width (cm): 24.20
  • Product Height (cm): 29.00

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
44CI19A1

Main Specifications

Type
Single Stage

Type

Single Stage
They have a wing, making maintenance quite easy. They are suitable for low pressure operations where a high flow rate is maintained (e.g. irrigation).
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
2 hp
Flow Rate
8.4 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
50 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
Pressure
5 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
