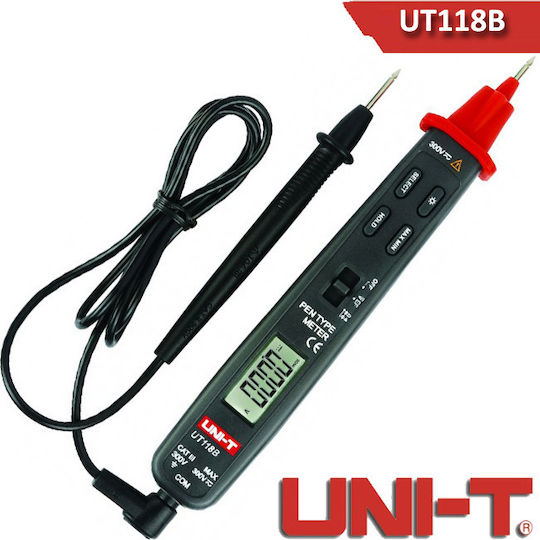

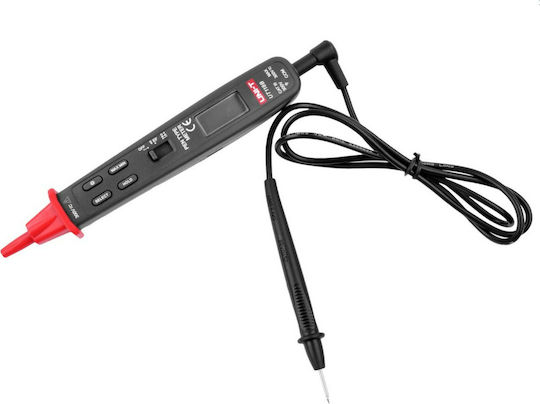

The Uni-T UT118B digital multimeter measures AC and DC voltage up to 300 V, resistance up to 30 MΩ, and capacitance up to 3 mF. Automatic parameter recognition selects the measurement without manually changing the range, while the EF function detects voltage without contact.
The LCD measures 28 x 14 mm and features a backlight. The multimeter includes data hold, MAX/MIN, diode test, and audible continuity functions, as well as a low battery indicator. It switches off automatically after approximately 10 minutes of inactivity.
- DC voltage: Up to 300 V
- AC voltage: Up to 300 V
- Resistance: Up to 30 MΩ
- Capacitance: Up to 3 mF
- Auto-ranging: Yes
- Non-contact voltage detection (EF): Yes
- Diode test: Yes
- Audible continuity: Yes
- Display: LCD, 28 x 14 mm, with backlight
- Data hold: Yes
- Measurement functions: MAX/MIN
- Auto power-off: After approximately 10 minutes
- Low battery indicator: Yes
- Power supply: 3 V battery (CR2032)
- Color: Black
- Dimensions: 20 x 27 x 182 mm
- Weight: 90 g

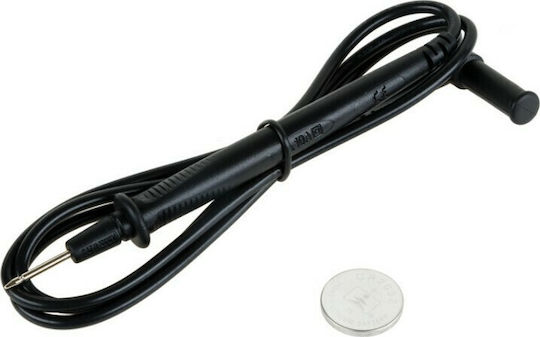

- Package contents: Battery, test lead
- Colour
- Black
- with LCD Screen
- Yes
- True RMS
- No
- with Buzzer
- Yes
