Noctua NF-A12x25 5V Case Fan 120mm (1900rpm / 96.2cfm) Without LED Lighting and 4-Pin PWM Connection Brown
Case Fans

Noctua NF-A12x25 5V Case Fan 120mm (1900rpm / 96.2cfm) Without LED Lighting and 4-Pin PWM Connection Brown

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 120mm
  • Rotational speed (min): 450 RPM
  • Rotational speed (max): 2000 RPM
  • Rotational speed with LNA (max): 1700 RPM
  • Noise level (high...

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 120mm
  • Rotational speed (min): 450 RPM
  • Rotational speed (max): 2000 RPM
  • Rotational speed with LNA (max): 1700 RPM
  • Noise level (high speed): 22.6 dB
  • Noise level with LNA (max): 18.8 dB
  • Airflow: 102.1 m³/h
  • Airflow with LNA (max): 84.5 m³/h
  • Maximum air pressure: 2.34 mmH2O
  • PWM (Pulse Width...
See full description See full description
Product report

Description

Description

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 120mm
  • Rotational speed (min): 450 RPM
  • Rotational speed (max): 2000 RPM
  • Rotational speed with LNA (max): 1700 RPM
  • Noise level (high speed): 22.6 dB
  • Noise level with LNA (max): 18.8 dB
  • Airflow: 102.1 m³/h
  • Airflow with LNA (max): 84.5 m³/h
  • Maximum air pressure: 2.34 mmH2O
  • PWM (Pulse Width Modulation) support: YES
  • Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
  • Mean Time To Failure (MTTF): 150000 h

Design

  • Product color: Beige, Red
  • Number of fans: 1 fan
  • Number of fan blades: 9

Connectivity

  • Fan connector: 4-pin

Power Management

  • Power requirements: 1.68 W
  • Voltage: 12 V
  • Voltage (maximum): 0.14 A

Weight and Dimensions

  • Fan dimensions (W x D x H): 120 x 120 x 25 mm
  • Package width: 150 mm
  • Package depth: 34 mm
  • Package height: 210 mm
  • Package weight: 355 g

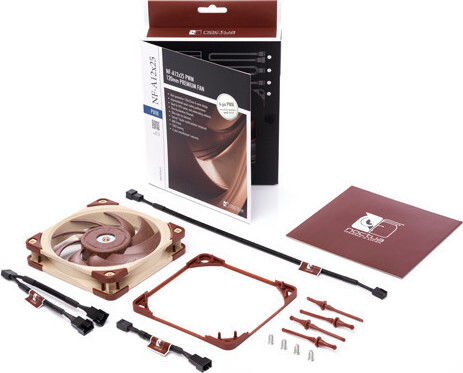

Package Contents

  • Cables included: Fan
  • Screws included: YES
  • Low-Noise Adapter (LNA): YES

Logistics Data

  • Main package width: 375 mm
  • Main carton length: 380 mm
  • Main package height: 380 mm
  • Gross weight of carton: 14400 g
  • Quantity per main carton: 36 pieces

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Brown
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1900 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
21.4 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
96.2 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
2.34 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • AnargyrosB
    5
    2 out of 3 members found this review helpful
    AnargyrosB

    Tremendous construction and premium packaging still.

    It is indeed silent.

    I have purchased 12 for use on various computers and have never had an issue with any of them.

    It may not be value for money, but in terms of decibels at full blast, there is nothing better in terms of airflow they create.

    If you can afford it, you will definitely not regret this purchase ever

    Translated from Greek ·
    • Effective cooling
    • Silent
    • Air flow
    • Construction quality
    • Value for money
    Did you find this review helpful?
  • AnargyrosB
    5
    AnargyrosB

    Tremendous construction and premium packaging still.

    It is indeed silent.

    I have purchased 12 for use on various computers and have never had an issue with any of them.

    It may not be value for money, but in terms of decibels at full blast, there is nothing better in terms of airflow they create.

    If you can afford it, you will definitely not regret this purchase ever

    Translated from Greek ·
    2
  • See all

Description & Specifications

Performance

  • Suitable for: Computer case
  • Type: Fan
  • Fan diameter: 120mm
  • Rotational speed (min): 450 RPM
  • Rotational speed (max): 2000 RPM
  • Rotational speed with LNA (max): 1700 RPM
  • Noise level (high speed): 22.6 dB
  • Noise level with LNA (max): 18.8 dB
  • Airflow: 102.1 m³/h
  • Airflow with LNA (max): 84.5 m³/h
  • Maximum air pressure: 2.34 mmH2O
  • PWM (Pulse Width Modulation) support: YES
  • Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
  • Mean Time To Failure (MTTF): 150000 h

Design

  • Product color: Beige, Red
  • Number of fans: 1 fan
  • Number of fan blades: 9

Connectivity

  • Fan connector: 4-pin

Power Management

  • Power requirements: 1.68 W
  • Voltage: 12 V
  • Voltage (maximum): 0.14 A

Weight and Dimensions

  • Fan dimensions (W x D x H): 120 x 120 x 25 mm
  • Package width: 150 mm
  • Package depth: 34 mm
  • Package height: 210 mm
  • Package weight: 355 g

Package Contents

  • Cables included: Fan
  • Screws included: YES
  • Low-Noise Adapter (LNA): YES

Logistics Data

  • Main package width: 375 mm
  • Main carton length: 380 mm
  • Main package height: 380 mm
  • Gross weight of carton: 14400 g
  • Quantity per main carton: 36 pieces

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Brown
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1900 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
21.4 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
96.2 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
2.34 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
