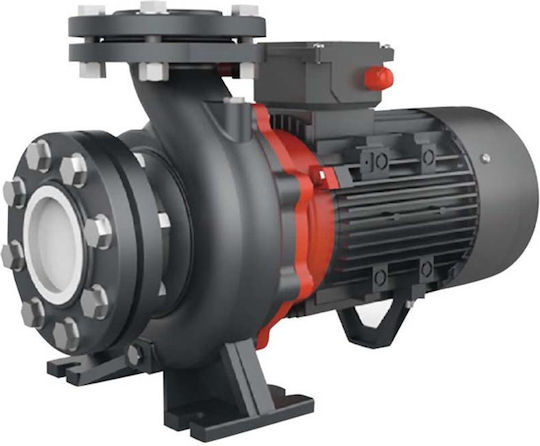

Leo Group XST32 160/22 Electric Firefighting Surface Water Pump Centrifugal 3hp Three-Phase
Surface Water Pumps

Leo Group XST32 160/22 Electric Firefighting Surface Water Pump Centrifugal 3hp Three-Phase Code: 01A103

The Leo Group XST32 160/22 centrifugal fire pump is designed to pump clean water or liquids with similar physical and chemical properties. It is used for agricultural irrigation, long-distance water...

The Leo Group XST32 160/22 centrifugal fire pump is designed to pump clean water or liquids with similar physical and chemical properties. It is used for agricultural irrigation, long-distance water transfer, drainage, and water circulation in air-conditioning equipment. The impellers are made of stainless steel, while the cast-iron casing has been treated...

See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Three-Phase
  • Firefighting

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
270 40 €
Lowest price '26
Delivery by Mon, 09 Nov
68,00 €   shipping cost
Sent from Greece
From Aravidis 4.9 (152)
4.9 (152 reviews)
Greece
20 pieces
See Water Pumps on the page of Aravidis

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group XST32 160/22 centrifugal fire pump is designed to pump clean water or liquids with similar physical and chemical properties. It is used for agricultural irrigation, long-distance water transfer, drainage, and water circulation in air-conditioning equipment. The impellers are made of stainless steel, while the cast-iron casing has been treated to resist rust.

The motor has copper windings and built-in thermal protection. The shaft is made of AISI 304/HT200 stainless steel, and the mechanical seal complies with the DIN24960 standard.

  • Power supply: Electric
  • Horsepower: 3 hp
  • Pump type: Centrifugal
  • Installation: Horizontal
  • Voltage: Three-phase, 380 V
  • Application: Firefighting
  • Flow rate: Up to 24 m³/h
  • Head: Up to 31 m
  • Ports: 50 × 32
  • Maximum suction lift: 8 m
  • Liquid temperature: From -10 °C to 85 °C
  • Impeller material: Stainless steel
  • Casing material: Cast iron with rust-resistant treatment
  • Motor winding: Copper
  • Shaft: AISI 304/HT200 stainless steel
  • Insulation class: F
  • Protection rating: IP54
  • Thermal protection: Built-in
  • Mechanical seal: DIN24960

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01A103

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
Yes
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Flow Rate
24 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
31 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group XST32 160/22 centrifugal fire pump is designed to pump clean water or liquids with similar physical and chemical properties. It is used for agricultural irrigation, long-distance water transfer, drainage, and water circulation in air-conditioning equipment. The impellers are made of stainless steel, while the cast-iron casing has been treated to resist rust.

The motor has copper windings and built-in thermal protection. The shaft is made of AISI 304/HT200 stainless steel, and the mechanical seal complies with the DIN24960 standard.

  • Power supply: Electric
  • Horsepower: 3 hp
  • Pump type: Centrifugal
  • Installation: Horizontal
  • Voltage: Three-phase, 380 V
  • Application: Firefighting
  • Flow rate: Up to 24 m³/h
  • Head: Up to 31 m
  • Ports: 50 × 32
  • Maximum suction lift: 8 m
  • Liquid temperature: From -10 °C to 85 °C
  • Impeller material: Stainless steel
  • Casing material: Cast iron with rust-resistant treatment
  • Motor winding: Copper
  • Shaft: AISI 304/HT200 stainless steel
  • Insulation class: F
  • Protection rating: IP54
  • Thermal protection: Built-in
  • Mechanical seal: DIN24960

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01A103

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
Yes
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Flow Rate
24 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
31 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
