During the development of the new P12 PWM, special emphasis was placed on a focused airflow and consequently on high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use in heatsinks and radiators.
Optimized for Static Pressure
During the development of the new P12 PWM, special emphasis was placed on a focused airflow and consequently on high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use in heatsinks and radiators.
More efficient technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the latest generation, which allows the new P12 PWM to operate much more efficiently than its predecessors. This saves energy and reduces coil temperature without compromising performance.
Maximum Quiet, Minimal Vibrations
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to the sinus-magnetizing, the new motor generates only about 5% of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Main Specifications

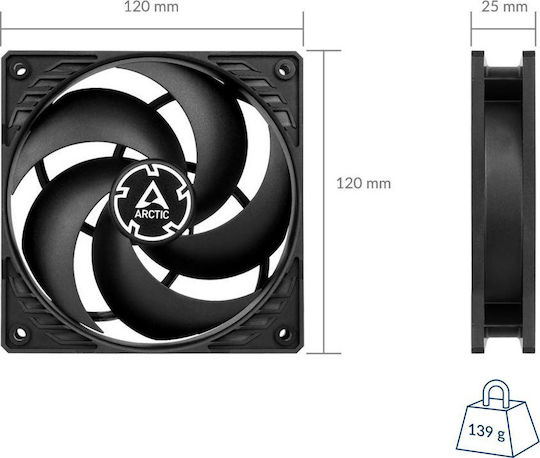

- Dimension
- 120 mm
- Colour
- Black
- Packaging
- 1 pcs
Technical Specifications
- Fan Speed (Max)
- 1800 rpm
- Noise Level (Max)
- 24.5 dB
- Air Flow (Max)
- 56.3 cfm
- Connection
- 4-Pin PWM
- LED Color
- Without LEDs
- Reverse Blade
- No
- Air Pressure
- 2.2 mmH₂O: millimeters of water
