The SilentStorm Cool Zero is 80 PLUS Gold certified, achieving at least 90% efficiency at 50% load, as well as 87% efficiency at 20% and 100% load. Additionally, the power supply is equipped with all the usual safety features to protect against damage: Overcurrent and overvoltage protection, undervoltage protection, short circuit protection, and overheating and overvoltage protection are supported.
Description
Specifications
80 Plus Gold Certification
The SilentStorm Cool Zero is 80 PLUS Gold certified, achieving at least 90% efficiency at 50% load, as well as 87% efficiency at 20% and 100% load. Additionally, the power supply is equipped with all the usual safety features to protect against damage: Overcurrent and overvoltage protection, undervoltage protection, short circuit protection, and overheating and overvoltage protection are supported.
Japanese Capacitors
The exclusive use of Japanese capacitors rated at 105 °C and a 135 mm fluid dynamic bearing fan ensure silent and reliable operation with an average lifespan of over 100,000 hours.

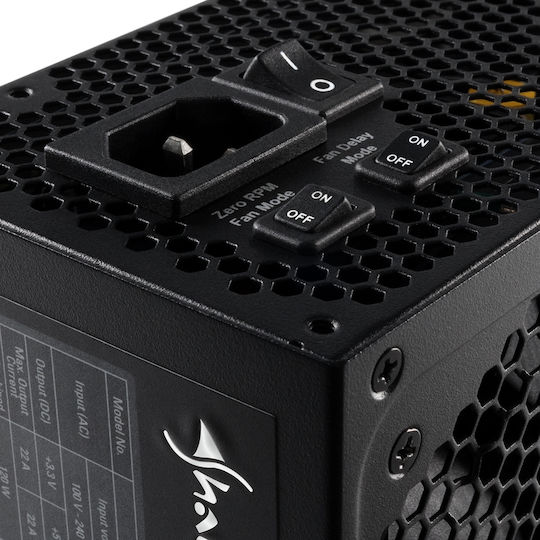

Adjustable Cooling
In delay mode, the power supply unit's fan can, if required, continue to operate for 60 seconds after shutdown to ensure complete system cooling. Additionally, with the Zero RPM feature, the fan's rotation can stop at low to moderate loads, thus allowing for noiseless operation.
Extremely Stable Voltage Regulation
With modern LLC resonant converter technology, the power supply provides stable and reliable voltage with minimal noise and heat levels.

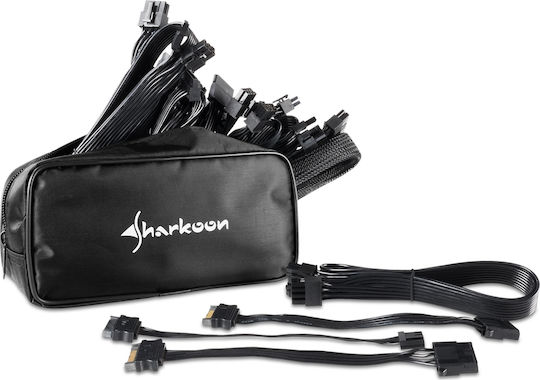

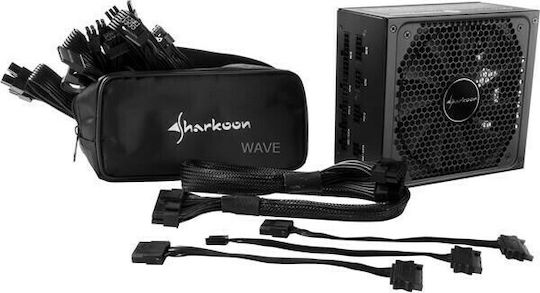

Fully Modular Design
All cables of the SilentStorm Cool Zero are modular and can be used according to the respective requirements. A handy cable bag is included for the cables that are not in use. The two 4+4 pin CPU cables ensure that even modern power-hungry systems can operate.
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 22A
- Line Current +5 V: 22A
- Line Current +12 V: 62.5A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
System Protection
Protects your PC from over power (OPP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit (SCP).
Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 12x SATA power connectors for SSD or HDD hard drives
- 2x Molex 4-pin connectors for connecting additional peripherals
- 1x 4-pin floppy connector for connecting a floppy drive or card reader
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 135 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Extra
- Fan Control Button
- Color
- Black
ATX Version
- ATX 3.1
- -
