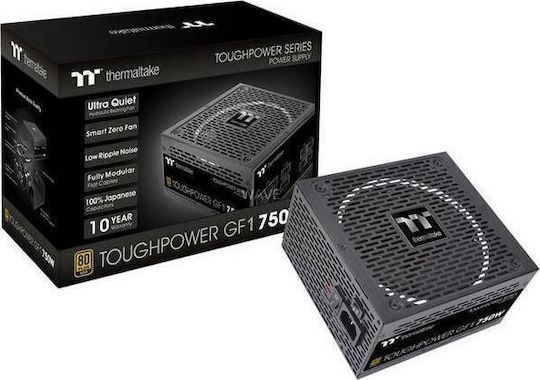

The Toughpower GF1 series saves energy thanks to its high energy efficiency of up to 90% and is certified with 80 PLUS Gold. The series has been optimized to work with all generations of Intel processors to achieve the maximum possible energy savings.
Description
Specifications
80 Plus Gold / Intel C6/C7 States Ready
The Toughpower GF1 series saves energy thanks to its high energy efficiency of up to 90% and is certified with 80 PLUS Gold. The series has been optimized to work with all generations of Intel processors to achieve the maximum possible energy savings.
A. Durable Chassis
B. Anti-vibration Mounting System
C. DC to DC Design
D. Modular Cable Management
E. Side Ventilation Design
F. Concentrated Compression Fan Blades
G. 100% High-Quality Japanese Capacitors 105°C / 221°F
H. Cable-Free Platform
Full Modular
Design without built-in cables for adaptation to any case. The flat black low-profile cables facilitate cable management, reduce clutter, and increase airflow inside the chassis.

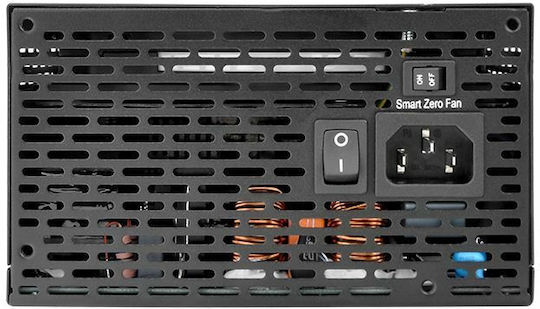

Smart Zero Fan
Smart Zero Fan function that disables the fan at loads up to 30%.
Premium Japanese 105°C/221°F Capacitors
The 100% high-quality Japanese electrolytic capacitors 105°C/221°F provide great durability, as well as the highest possible stability, while remaining reliable.
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 22A
- Line Current +5 V: 22A
- Line Current +12 V: 70.9A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Protection Technologies
- OPP (Over Power Protection); Function to shut down the power supply when excessive power is drawn, generally between 110 and 140% of the advertised power.
- OTP (Over Temperature Protection): Protects the power supply from overheating due to a failure, e.g., of the fan.
- UVP (Under Voltage Protection): Protection aimed at shutting down the power supply if the voltage drops too low.
- OVP (Over Voltage Protection): Over voltage protection works similarly to UVP, but in the opposite way.
- SCP (Short Circuit Protection): Short circuit protection measures the resistance on each rail and will shut down when the resistance is lower than 0.1 Ω. Generally, this is combined with OPP, OCP, OVP, and UVP.
Wiring
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
- 6x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 12x SATA power connectors for SSD or HDD hard drives
- 4x Molex 4-pin connectors for connecting additional peripherals
- 1x 4-pin floppy connector for connecting a floppy drive or card reader
Product Guides
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 140 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- -
