This is a professional video camera system with a waterproof camera, connected with a fiberglass cable, which is used for inspecting pipes in sewer networks as well as inspecting other hard-to-reach areas.

By connecting the camera to the cable extension, you can reach the desired depth or distance by unwinding the cable. The connected roller skid accessory will protect the camera from serious damage and move the camera smoothly. The image will be displayed on the color screen with a menu button/remote control for adjusting the image and viewing. The camera also has built-in LEDs which make inspection possible in absolute darkness.

You can also record video or audio with the DVR recorder and transfer the image/audio to your computer. The color screen also has a sun visor to ensure better viewing with less reflection. This product can be easily transported with the included carrying case.

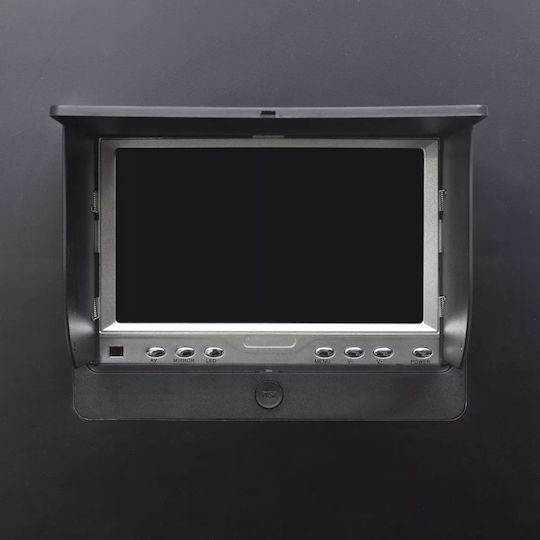

Screen Specifications:

• Screen dimensions: 7" color screen
• Total screen pixels: 800 x 480 (H x V)
• Screen power supply: DC 12 V
• Model: 16:9
• With built-in sun visor
• Operating temperature: -20 °C to +60 °C
• Battery charger: Input: AC 110-240 V, Output: DC 12 V
• Rechargeable battery: Lithium battery, 12 V

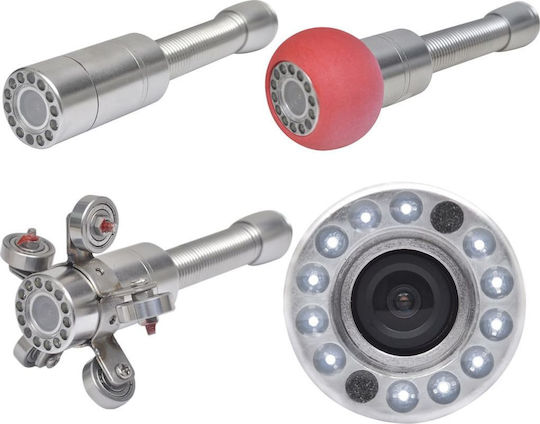

Camera Specifications:

• Camera dimensions: 23 mm x 185 mm (W x L)
• Camera housing material: Stainless steel 304
• Camera glass material: Sapphire glass
• Sensor dimensions: 1/3" CMOS
• Total pixels: HD 960 TVL
• Lens focus: 3.6 mm
• Viewing angle: 75°
• Camera LED lights: 12 white LEDs
• With gold-plated connector
• Camera operating current: 100 MA
• Camera power supply: DC 12 V
• Protection rating: IP68 (waterproof)
• Operating temperature: -10 °C to +50 °C

DVR Recorder Specifications:

• DVR power supply: 12 V
• DVR operating current: 200 MA
• Storage medium: SD card (Max. 16G)
• Total DVR pixels: 720 x 576 (H x V)
• Film format: AV
• With still image and video recording

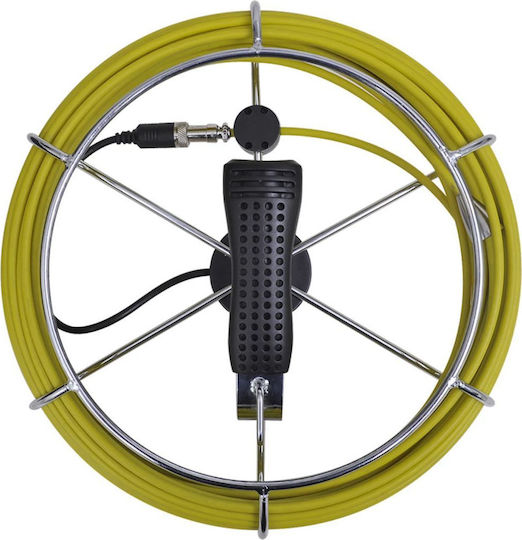

Cable Reel Specifications:

• Cable dimensions: 300 mm x 110 mm (diameter x H)
• Cable material: Fiberglass
• Cable length: 30 m
• Cable diameter: 4.8 mm
• Cable color: Yellow

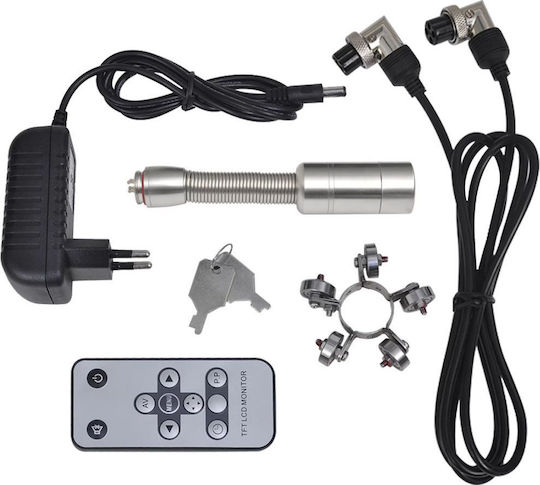

Included in the delivery:

• 1 x Camera
• 1 x 7" LCD screen
• 1 x Connection cable
• 1 x Cable extension

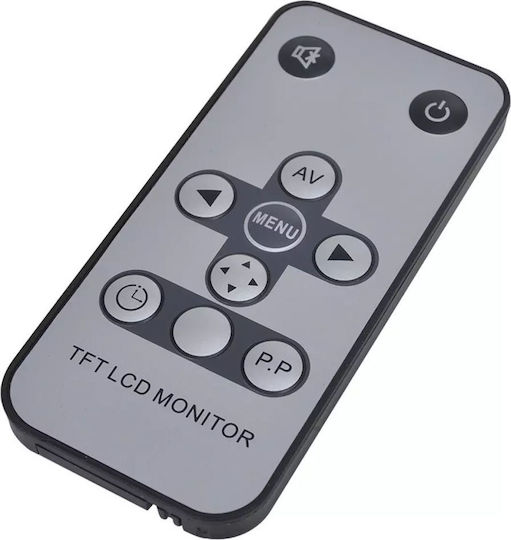

• 1 x Remote control
• 1 x Rechargeable battery
• 1 x Battery charger
• 1 x DVR recorder
• 1 x Aluminum case
• 2 x Keys
• 1 x Roller skid accessory
