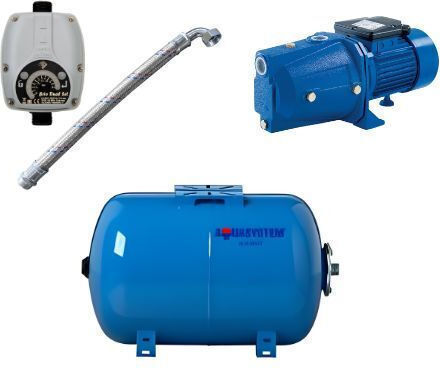

Plus JM10 Electric Surface Water Pump with Automatic Suction 1hp Single-Phase
Surface Water Pumps

Plus JM10 Electric Surface Water Pump with Automatic Suction 1hp Single-Phase Code: 230103

The Plus JM10 JET-type surface pump has a self-priming capacity of up to 9 m and is designed to supply clean water for domestic and agricultural applications, such as garden irrigation and household...

The Plus JM10 JET-type surface pump has a self-priming capacity of up to 9 m and is designed to supply clean water for domestic and agricultural applications, such as garden irrigation and household water supply. Its casing is made of cast iron and its impeller is made of AISI 304 stainless steel.

  • Pump type: JET
  • Power supply: Electric
  • Power: 1 hp (750 W)
  • ...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
  • Voltage Single-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
81 00 €
Delivery Fri, 06 Nov - Tue, 10 Nov
44,00 €   shipping cost
Sent from Greece
From Istikoglou
Greece
See Water Pumps on the page of Istikoglou

Learn more about invoicing
Product report

Description

Description

The Plus JM10 JET-type surface pump has a self-priming capacity of up to 9 m and is designed to supply clean water for domestic and agricultural applications, such as garden irrigation and household water supply. Its casing is made of cast iron and its impeller is made of AISI 304 stainless steel.

  • Pump type: JET
  • Power supply: Electric
  • Power: 1 hp (750 W)
  • Voltage: Single-phase, 220 V
  • Installation: Horizontal
  • Self-priming capacity: Up to 9 m
  • Maximum head: 53 m
  • Maximum flow rate: 3 m³/h
  • Inlet port: 1" (25 mm)
  • Outlet port: 1" (25 mm)
  • Casing material: Cast iron
  • Impeller material: AISI 304 stainless steel
  • Maximum liquid temperature: 40 °C
  • Maximum ambient temperature: 40 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
230103

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
53 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
53 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (3)

Reviews

5.0
3
5.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • cpalazis48
    5
    2 out of 2 members found this review helpful
    cpalazis48

    Verified purchase

    This is the second one I buy. Good machine. For automatic watering, drawing from a tank, it lifts 5 rotating sprinklers each time and waters 1000 liters in half an hour. Definitely get an AQUA STOP as well, so it "cuts off" its operation in case there is no water. That's how two pumps burned out for me. With the AQUA STOP, I was saved. Anyway, this particular one is very good. I have it above with an expansion tank.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    0 out of 1 members found this review helpful
    trelos_paros

    Verified purchase

    As it should be.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Dimitris_Dimitriadis6720

    Verified purchase

  • cpalazis48
    5
    cpalazis48

    This is the second one I buy. Good machine. For automatic watering, drawing from a tank, it lifts 5 rotating sprinklers each time and waters 1000 liters in half an hour. Definitely get an AQUA STOP as well, so it "cuts off" its operation in case there is no water. That's how two pumps burned out for me. With the AQUA STOP, I was saved. Anyway, this particular one is very good. I have it above with an expansion tank.

    Translated from Greek ·
    2
  • 5
    trelos_paros

    As it should be.

    Translated from Greek ·
    0
  • 5
    Dimitris_Dimitriadis6720

    0
  • See all

Description & Specifications

The Plus JM10 JET-type surface pump has a self-priming capacity of up to 9 m and is designed to supply clean water for domestic and agricultural applications, such as garden irrigation and household water supply. Its casing is made of cast iron and its impeller is made of AISI 304 stainless steel.

  • Pump type: JET
  • Power supply: Electric
  • Power: 1 hp (750 W)
  • Voltage: Single-phase, 220 V
  • Installation: Horizontal
  • Self-priming capacity: Up to 9 m
  • Maximum head: 53 m
  • Maximum flow rate: 3 m³/h
  • Inlet port: 1" (25 mm)
  • Outlet port: 1" (25 mm)
  • Casing material: Cast iron
  • Impeller material: AISI 304 stainless steel
  • Maximum liquid temperature: 40 °C
  • Maximum ambient temperature: 40 °C

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
230103

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
53 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
53 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
