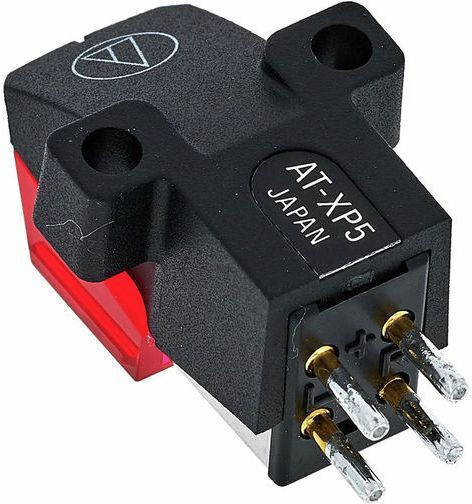

The Audio-Technica AT-XP5 phono cartridge uses a moving-magnet system and a 0.3 × 0.7 mil elliptical stylus. The stylus cantilever is made of carbon fiber reinforced with ABS, while its 5.5 mV output and 2–4 g tracking force make it suitable for DJ use.
- Type: Moving magnet
- Mounting: Standard 1/2"

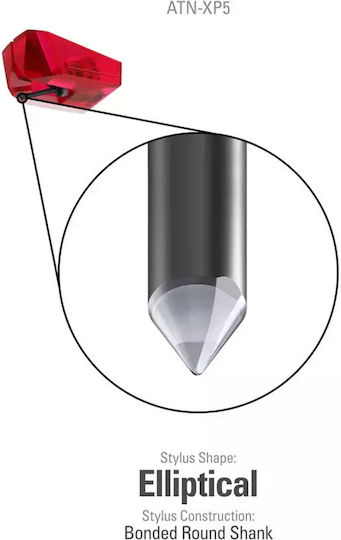

- Stylus type: 0.3 × 0.7 mil elliptical
- Stylus cantilever material: Carbon fiber reinforced with ABS
- Output: 5.5 mV
- Frequency response: 20 Hz–18 kHz
- Channel separation: 20 dB
- Channel balance: 2 dB
- Tracking force: 2–4 g
- Recommended tracking force: 3 g
- Vertical tracking angle: 20°
- Recommended load resistance: 47 kΩ
- Static compliance: 20 × 10⁻⁶ cm/dyne
- Dynamic compliance: 6 × 10⁻⁶ cm/dyne
- Weight: 6.2 g
- Package contents: 1 piece
- Type
- Moving Magnet
- Packaging
- Piece
- Mounting Type
- Standard 1/2"
