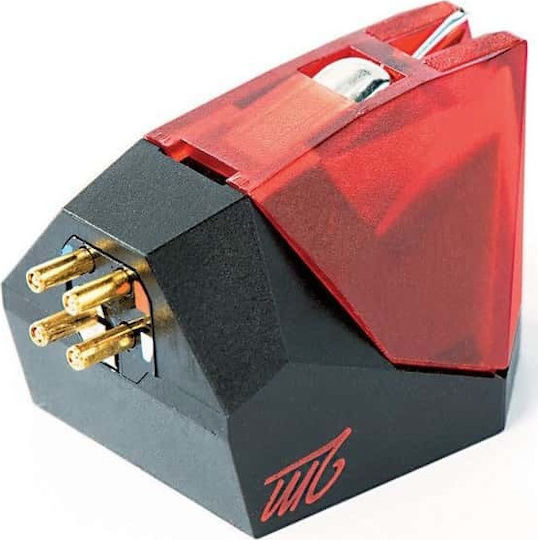

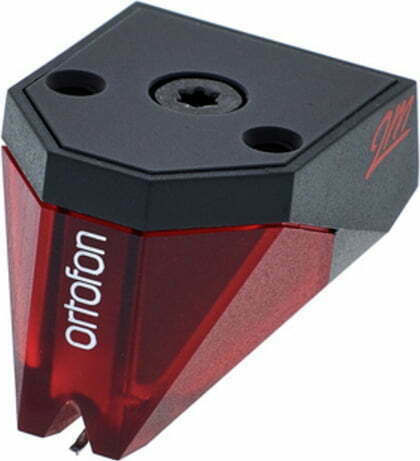

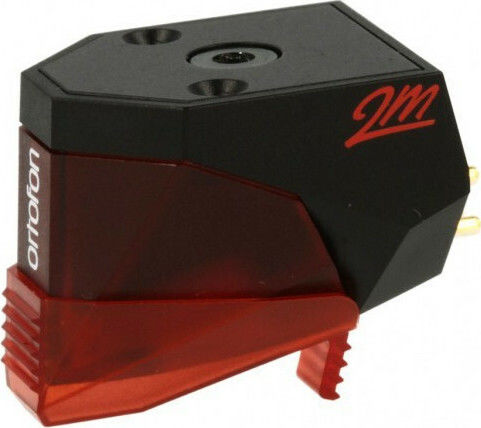

The Ortofon 2M Red turntable cartridge uses a moving magnet and features an elliptical stylus. Its output voltage is 5.5 mV, and the recommended tracking force is 1.8 g.
- Type: Moving magnet
- Stylus type: Elliptical
- Stylus radius: r/R 8/18 µm
- Output voltage: 5.5 mV at 1,000 Hz, 5 cm/sec
- Channel balance: 1.5 dB at 1 kHz
- Channel separation: 22 dB at 1 kHz, 15 dB at 15 kHz
- Frequency range: 20–22,000 Hz at -3 dB
- Frequency response: 20–20,000 Hz, +3 / -1 dB
- Tracking ability: 70 µm at 315 Hz with the recommended tracking force
- Compliance: 20 µm/mN, dynamic, lateral
- Tracking force range: 1.6–2.0 g (16–20 mN)
- Recommended tracking force: 1.8 g (18 mN)
- Tracking angle: 20°
- Internal resistance: 1.3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150–300 pF
- Color: Red
- Cartridge weight: 7.2 g
- Mounting base: Standard 1/2"
- Packaging: Single unit
- Type
- Moving Magnet
- Packaging
- Piece
- Mounting Type
- Standard 1/2"
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
