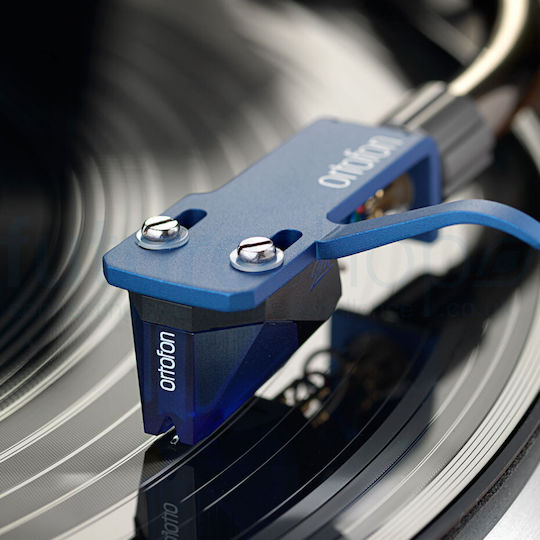

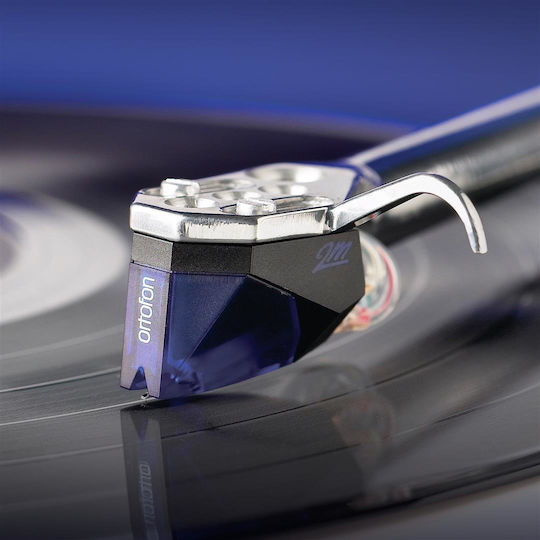

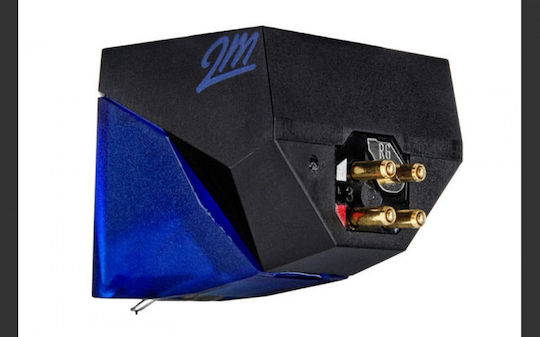

The Ortofon 2M Blue phono cartridge uses a moving magnet and a nude elliptical stylus made from a monolithic crystal. Its patented Split Pole Pins reduce eddy currents, while the Hopelex body features an anti-resonance construction. Its 5.5 mV output and tracking ability of up to 80 μm are among its key features.
- Type: Moving magnet
- Mounting: Standard 1/2"
- Stylus type: Nude elliptical
- Stylus radius: r/R 8/18 μm
- Output voltage at 1,000 Hz, 5 cm/sec: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 25 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range (-3 dB): 20–25,000 Hz
- Frequency response: 20–20,000 Hz (+2/-1 dB)
- Tracking ability at 315 Hz: 80 μm
- Compliance, dynamic, lateral: 20 μm/mN
- Tracking force range: 1.6–2.0 g (16–20 mN)
- Recommended tracking force: 1.8 g (18 mN)
- Tracking angle: 20°
- Internal DC resistance: 1.3 kΩ
- Internal inductance: 700 mH
- Recommended load resistance: 47 kΩ
- Recommended load capacitance: 150–300 pF
- Body material: Hopelex
- Body/stylus colour: Black/blue
- Weight: 7.2 g

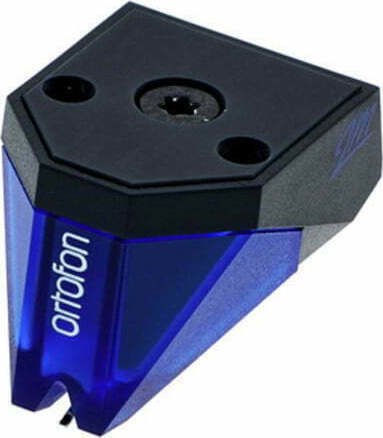

- Replacement stylus unit: 2M Blue
- Type
- Moving Magnet
- Packaging
- Piece
- Mounting Type
- Standard 1/2"
