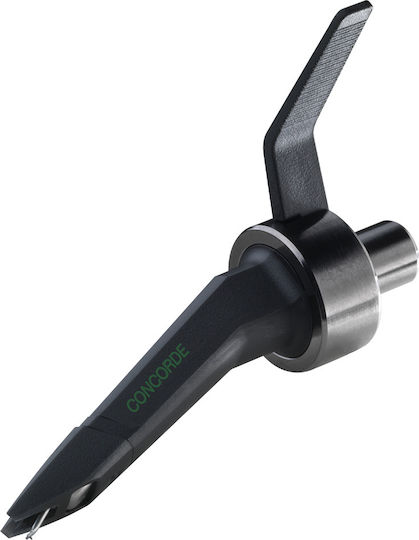

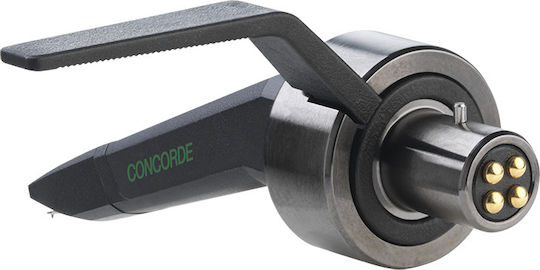

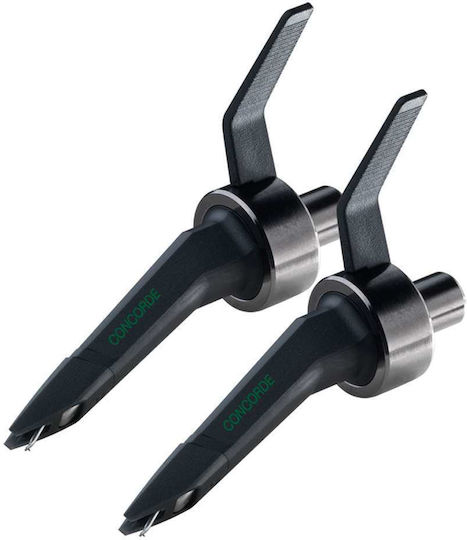

The Ortofon Concorde MKII Mix cartridge pair is designed for scratching and back-cueing. Each cartridge features a spherical stylus with an 18 μm radius and a rigid cantilever, while the frequency response ranges from 20 to 20,000 Hz. The tracking force can be adjusted from 2 to 4 g, with 3 g recommended.
- Type: DJ
- Packaging: Pair
- Mounting: Integrated, Concorde type
- Stylus type: Spherical
- Stylus radius: 18 μm
- Output voltage: 6 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 20 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20–20,000 Hz
- Tracking ability at 315 Hz: 100 μm
- Lateral dynamic compliance: 14 μm/m N
- Tracking force range: 2–4 g
- Recommended tracking force: 3 g
- Cartridge weight: 18.5 g

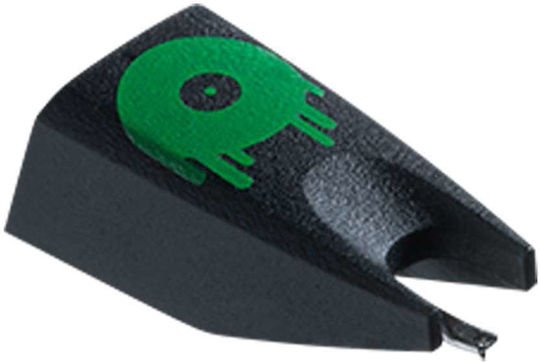

- Replacement stylus: MIX
- Type
- DJ
- Packaging
- Pair
- Mounting Type
- Integrated / Concorde (One-piece & Ready Sets)
