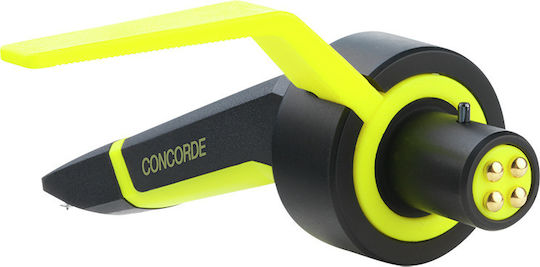

The Ortofon Concorde MKII Club cartridge features an elliptical stylus, which tracks the record groove with a larger contact area than a spherical stylus and reproduces more complex details. Its 8 mV output voltage requires less gain from the preamplifier, helping deliver cleaner playback and making it less susceptible to feedback during live performances. It is used for vinyl playback in settings such as studios, radio broadcasts, and clubs.
- Type: DJ
- Stylus: Elliptical
- Output voltage: 8 mV
- Frequency response: 20–20,000 Hz
- Channel balance at 1 kHz: 1 dB
- Channel separation at 1 kHz: 25 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20–20,000 Hz
- Tracking ability at 315 Hz with recommended tracking force: 100 μm
- Compliance, dynamic lateral: 14 μm/mN
- Tracking force: 2–4 g
- Recommended tracking force: 3 g
- Cartridge weight: 18.5 g
- Mounting type: Integrated / Concorde
- Packaging: 1 piece
- Replacement stylus: CLUB Stylus
- Type
- DJ
- Packaging
- Piece
- Mounting Type
- Integrated / Concorde (One-piece & Ready Sets)
