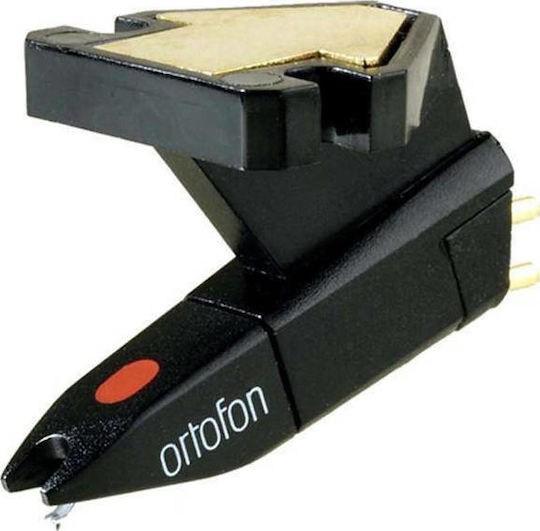

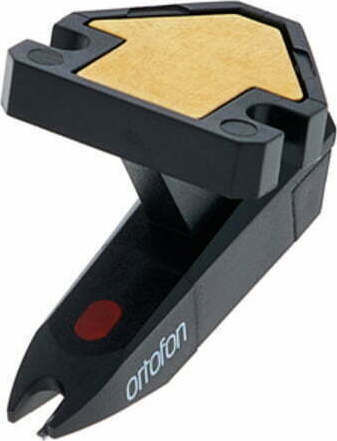

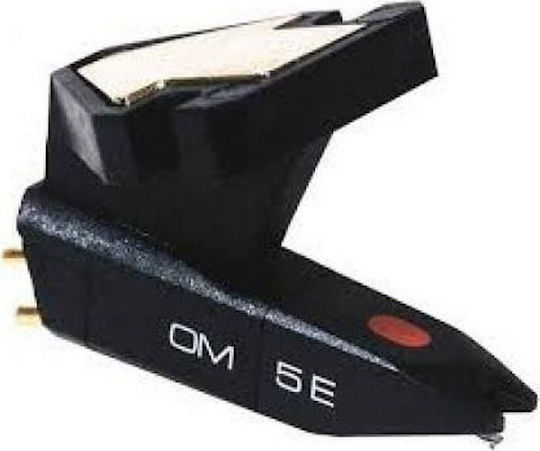

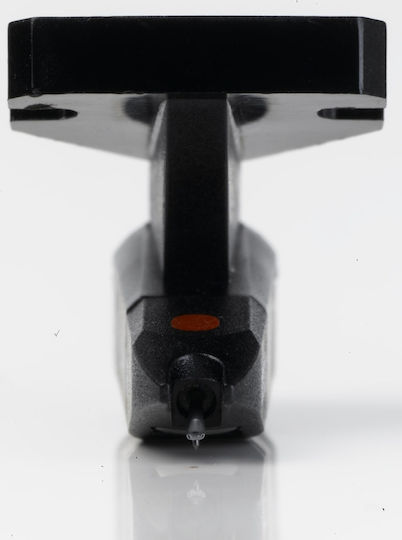

The Ortofon OM 5E turntable cartridge has an elliptical stylus and delivers a frequency response of 20–20,000 Hz ± 2 dB. The recommended tracking force is 1.75 g, with a range of 1.5–2.0 g, while the tracking ability is 65 µm.
- Type: DJ
- Stylus: Elliptical
- Stylus radius: r/R 8/18 µm
- Output voltage at 1,000 Hz and 5 cm/sec: 4 mV
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20–25,000 Hz
- Frequency response: 20–20,000 Hz ± 2 dB
- Tracking ability at 315 Hz: 65 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Tracking force range: 1.5–2.0 g (15–20 mN)
- Recommended tracking force: 1.75 g (17.5 mN)
- Tracking angle: 20°
- Internal DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200–500 pF
- Body/stylus color: Black/Black
- Weight with auxiliary weight: 5 g
- Weight without auxiliary weight: 2.5 g
- Replacement stylus: Stylus 5E
- Packaging: Single item
- Type
- DJ
- Packaging
- Piece
- Mounting Type
- -
