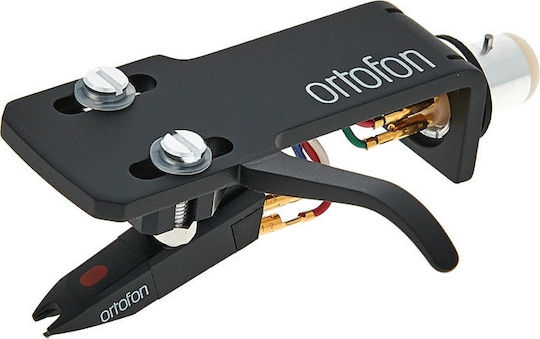

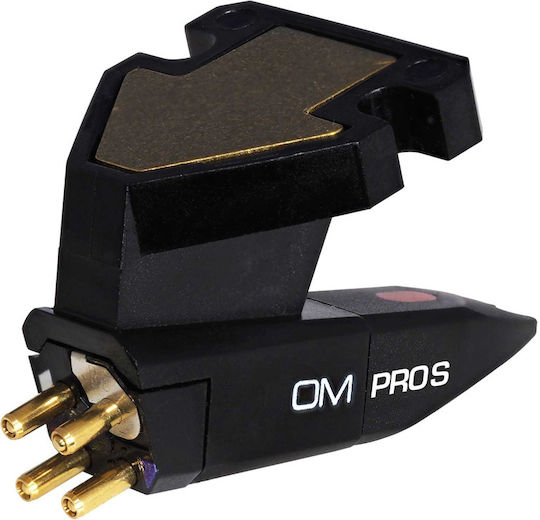

The Ortofon OM Pro S cartridge is designed for DJs starting out with DJ equipment. The spherical stylus helps reduce vinyl record wear during intensive turntable use, while the cartridge is compatible with different setups.
- Type: DJ
- Stylus: Spherical
- Stylus tip radius: R 18 μm
- Tracking force: 4 g
- Tracking force range: 3–5 g
- Tracking angle: 20°
- Output voltage: 5 mV
- Frequency response: 20–18,000 Hz
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 20 dB
- Channel separation at 15 kHz: 15 dB
- Tracking ability at 315 Hz: 70 μm
- Dynamic lateral compliance: 7 μm/m N
- DC internal resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200–600 pF
- Cartridge weight: 5 g
- Replacement stylus: PRO S Stylus
- Packaging: 1 piece
- Type
- DJ
- Packaging
- Piece
- Mounting Type
- -
