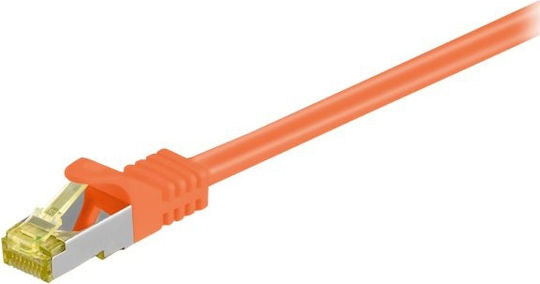

The Goobay Cat.7 S/FTP network cable connects devices via two male RJ45 (8P8C) connectors. Its shielding combines PiMF aluminium foil with an overall aluminium braid, and its copper conductors are stranded.
It supports a maximum bandwidth of 500 MHz and video transmission up to 8K at 60 Hz and 4K at 120 Hz. The cable jacket is made of LSZH material, the contacts are gold-plated, and the plugs feature kink protection and latches on both ends.
- Length: 0.5 m
- Type: S/FTP
- Category: Cat.7
- Colour: Orange
- Connectors: 2 male RJ45 (8P8C)
- Shielding: PiMF aluminium foil and overall aluminium braid
- Conductors: Stranded copper, AWG 26/7
- Maximum bandwidth: 500 MHz
- Cable diameter: 6.2 mm
- Jacket material: LSZH
- Contact plating: 50 μm gold
- Kink protection: Both ends
- Latch protection: Both ends
- Markings: CE, WEEE
- Operating temperature: -20 °C to 65 °C
- Wiring standard: EIA/TIA-568 B
- Special feature: Length marking on the connector
- Package contents: 1 piece in a bag
- Product Number
- 91579
- Type
- S/FTP
- Category
- Cat.7
- Length
- 0.5 m
- Outdoor
- No
- Colour
- Orange
- Terminated
- Yes
- Flat
- No
- Fiber Optic Connectors
- -
