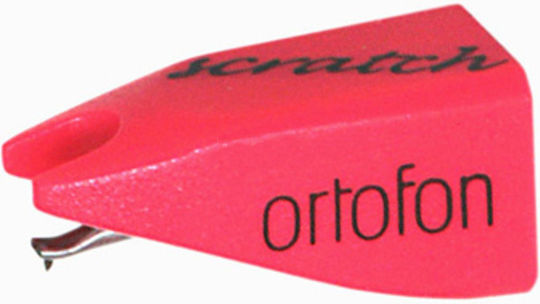

Ortofon Turntable Needle Stylus Scratch Red Replacement Stylus

Name: Ortofon Turntable Needle Stylus Scratch Red Replacement Stylus
Brand: Ortofon
SKU: 18028149
Price: 45.0 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

Scratch Needle Replacement Unit

Technical data:

Output voltage at 1000Hz, 5cm/sec: 7 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency...

Scratch Needle Replacement Unit

Technical data:

Output voltage at 1000Hz, 5cm/sec: 7 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20,000 Hz
Frequency response: 20-15,000 Hz +3 dB/-2 dB
Tracking ability at 315 Hz with recommended tracking force: 80 μm
Compliance, dynamic...

See full description See full description

45 00 €

Delivery by Wed, 24 Jun

14,00 € shipping cost

Sent from Greece

From Djmania 5.0 (7)

5.0 (7 reviews)

Greece

4 pieces

See Turntables & Accessories on the page of Djmania

Description

Scratch Needle Replacement Unit

Technical data:

Output voltage at 1000Hz, 5cm/sec: 7 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20,000 Hz
Frequency response: 20-15,000 Hz +3 dB/-2 dB
Tracking ability at 315 Hz with recommended tracking force: 80 μm
Compliance, dynamic lateral: 6 μm/m N
Needle type: Spherical
Needle tip radius: R 18 μm
Tracking force range: 3.0-5.0 g (30-50 mN)
Recommended tracking force: 4.0 g (40 mN)
Tracking angle: 20º
Internal resistance, DC: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 5 g

Manufacturer

Ortofon - Turntable Needles Ortofon

See full description

Specifications

Colour: Red
