Description
Specifications

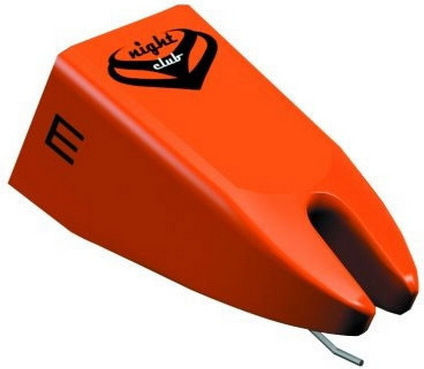

The Ortofon Nightclub MkII replacement turntable stylus features a special elliptical tip with a radius of r/R 13/25 μm and a tracking angle of 20°. The recommended tracking force is 3.0 g, with an adjustment range of 2.0–5.0 g.
- Color: Orange
- Stylus type: Special elliptical
- Stylus radius: r/R 13/25 μm
- Output voltage at 1000 Hz and 5 cm/sec: 8 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 23 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20–22,000 Hz
- Frequency response: 20–20,000 Hz ±1.5 dB
- Tracking ability at 315 Hz: 80 μm
- Dynamic lateral compliance: 7 μm/mN
- Tracking force range: 2.0–5.0 g (20–50 mN)
- Recommended tracking force: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance (DC resistance): 1,000 Ohm
- Internal inductance: 580 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200–600 pF
- Colour
- Orange
