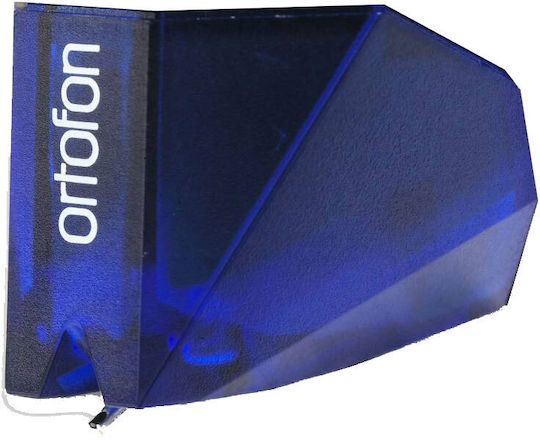

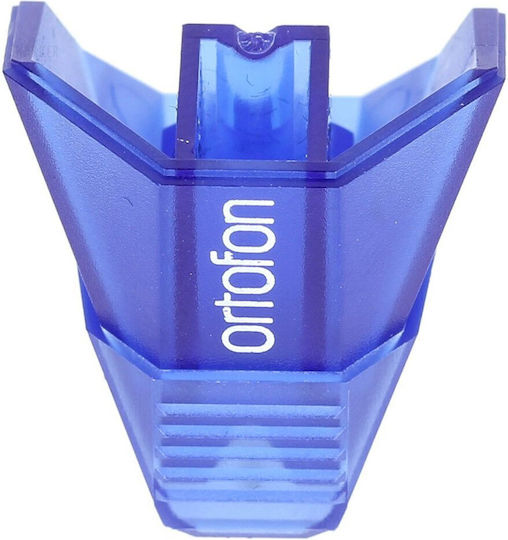

The new 2M head is a practical and stylish solution for customers who want immediate and easy installation and replacement on their tonearm. The combination of the 2M head and the 2M series cartridge adds unique distinction to the record!

• Output voltage at 1000 Hz, 5cm/sec: 5.5 mV
• Channel balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 25 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-25,000 Hz
• Frequency response: 20-20,000 Hz + 2 / - 1 dB
• Tracking ability at 315Hz with recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Nude Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.6-2.0g (16-20 mN)
• Recommended tracking force: 1.8 g (18 mN)
• Tracking angle: 20°
• Internal impedance, DC: 1.3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
