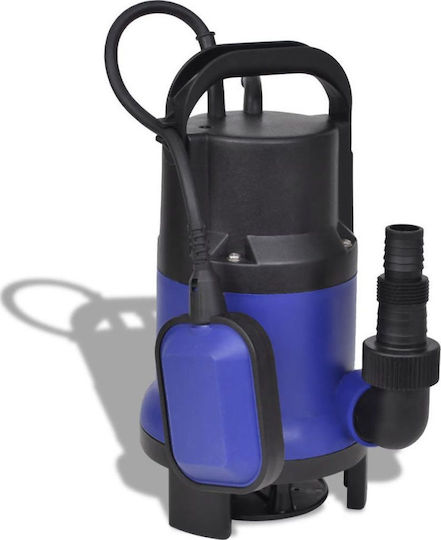

vidaXL Three-phase Pump Waste Water / Sewage 0.53hp 140942
Submersible Water Pumps

vidaXL Three-phase Pump Waste Water / Sewage 0.53hp 140942

This electric submersible sewage pump is suitable for clean and dirty water applications. It features a float switch for easy operation. With a maximum lift capacity of 5 m and a maximum submersion...

This electric submersible sewage pump is suitable for clean and dirty water applications. It features a float switch for easy operation. With a maximum lift capacity of 5 m and a maximum submersion depth of 7 m, it can effectively remove sewage from depth.

Features:

  • Color: Black and blue
  • Material: Metal and plastic
  • Overall dimensions: 23 x 17 x 33 cm (L x W...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Three-Phase

    It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    5

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
The product is not available for shipping to the selected country.
Review the product
Product report

Description

Description

This electric submersible sewage pump is suitable for clean and dirty water applications. It features a float switch for easy operation. With a maximum lift capacity of 5 m and a maximum submersion depth of 7 m, it can effectively remove sewage from depth.

Features:

  • Color: Black and blue
  • Material: Metal and plastic
  • Overall dimensions: 23 x 17 x 33 cm (L x W x H)
  • Cable length: 10 m
  • Pipe diameter: 1, G1, 1¼, G1½
  • Power supply: 220-240 V~, 50 Hz
  • Input power: 400 W
  • Max. lift capacity (manometric): 5 m
  • Max. submersion depth: 7 m
  • Max. flow rate: 8000 liters / hour
  • Maximum pressure: 0.5 bar
  • Maximum particle size: 15 mm
  • Max. liquid temperature: 35°C
  • Protection class: IPX8
  • Minimum starting level: 135 mm
  • Minimum suction level: 35 mm
  • Includes hose adapter for pressure connection

Note: This device is not intended for use by persons (including children) with reduced capabilities or lack of experience, unless they have been given supervision or instructions by a responsible person.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Three-Phase

Voltage

Three-Phase

It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.
Horsepower
0.53 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
397.5 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
10 m

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.

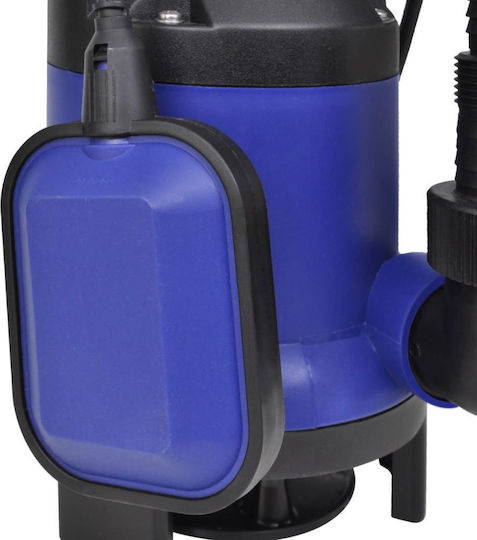

Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.

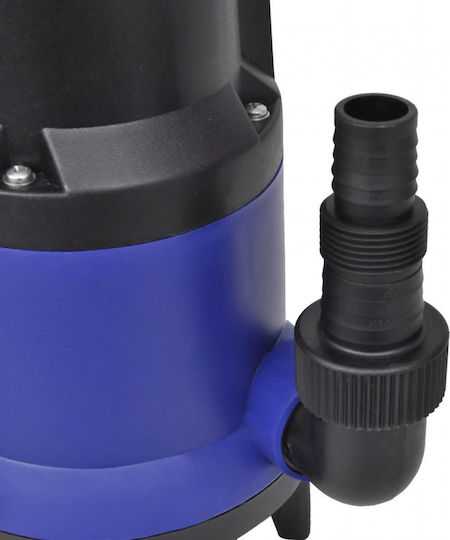

Outlet Nozzle
1", 1 1/4"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
5 m

Maximum Head Height: 5


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Pump Submersion Depth
7 m
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
No
Protection Certification
IPX8

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
