- Laser diode: 635 nm, < 1 mW.
- Measuring range: 0.05 – 50 meters.
- Laser class: 2.
- Measurement accuracy, typical: +/- 1.5 mm.
- Measuring range, inclination measurement: 0 - 360° (4 x 90°).
- Measurement accuracy (typical): +/- 0.2°.
- Typical measurement time: < 0.5 s.
- Maximum measurement time: 4 s.
- Power supply: 2 batteries 1.5 V LR03 (AAA).
- Automatic shutdown: 5 min.
- Weight, approx.: 0.1 kg.
- Measurement units: m/cm, feet/inches.
- Number of stored values: 20.
- Battery life, individual measurements approx.: 10,000.
- Battery life, operating time approx.: 2.5 h.
- Dust and moisture protection: IP 54.
- Tripod thread: 1/4".
- Carrying case not included.

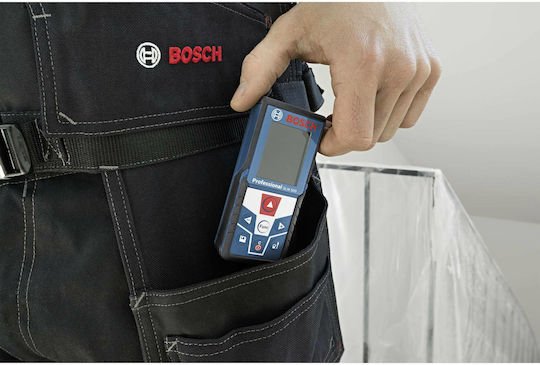

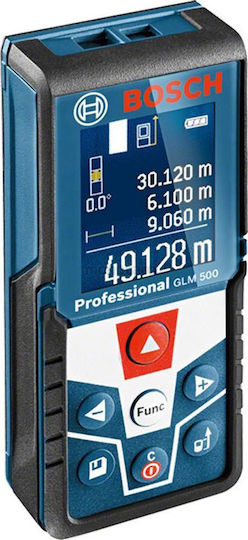

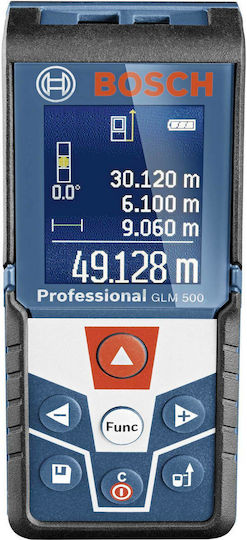

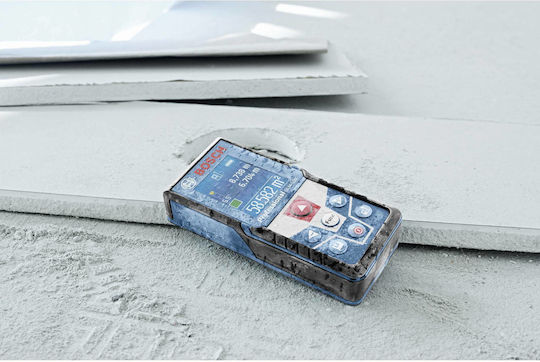

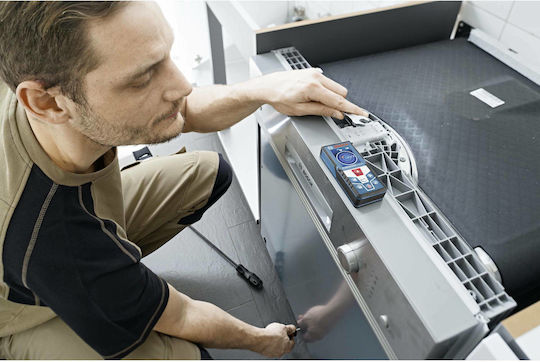

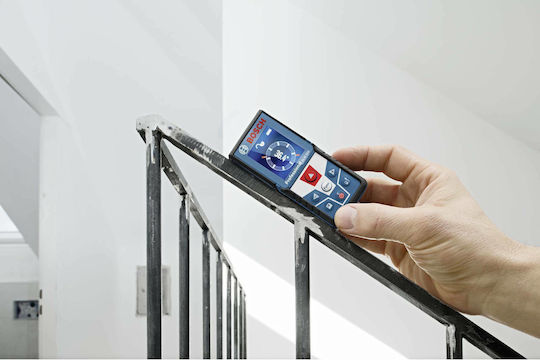

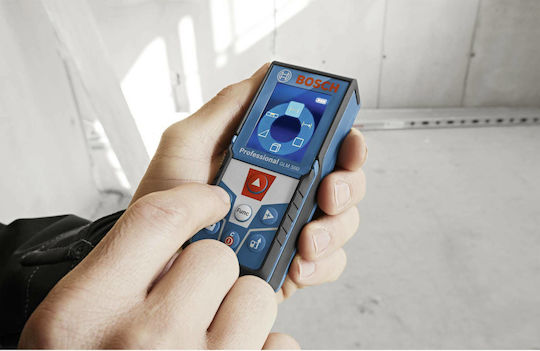

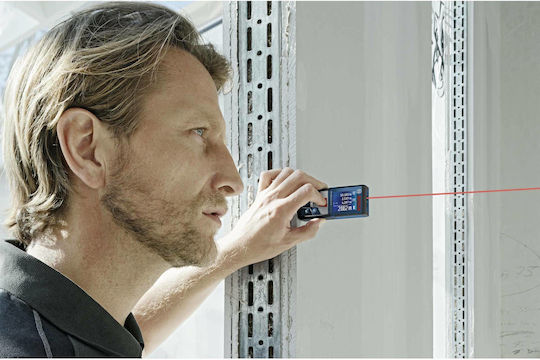

Laser Distance/Inclination Meter 50m. It features an illuminated, rotating color screen. Wide functionality including boundary function and 360° inclination sensor for simple angle measurement and leveling applications. It has ISO certification and IP 54 protection rating.
Features
- Laser diode: 635 nm, < 1 mW.
- Measuring range: 0.05 – 50 meters.
- Laser class: 2.
- Measurement accuracy, typical: +/- 1.5 mm.
- Measuring range, inclination measurement: 0 - 360° (4 x 90°).
- Measurement accuracy (typical): +/- 0.2°.
- Typical measurement time: < 0.5 s.
- Maximum measurement time: 4 s.
- Power supply: 2 batteries 1.5 V LR03 (AAA).
- Automatic shutdown: 5 min.
- Weight, approx.: 0.1 kg.
- Measurement units: m/cm, feet/inches.
- Number of stored values: 20.
- Battery life, individual measurements approx.: 10,000.
- Battery life, operating time approx.: 2.5 h.
- Dust and moisture protection: IP 54.
- Tripod thread: 1/4".
- Carrying case not included.
Dimensions
- Minimum Distance
- 0.05 m
- Maximum Distance
- 50 m
- Measurement Accuracy (±)
- 1.5 mm
- Wavelength
- 635 nm
- Laser Category
- Class 2
- Laser Beam Color
- Red
- Weight
- 100 gr
Features
- Bluetooth
- No
- USB Charging
- No
- Addition / Subtraction
- No
- Maximum / Minimum Value
- No
- Built-in Level
- No
- Measurement Storage
- 20
Battery & Accessories
- Number of Required Batteries
- 2
- Battery Voltage
- 1.5 V
- Battery Type
- AAA
- Case
- No
Device Certifications
- Protection Certification
- IP54
- ISO 16331-1
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
