Adastra Z5M 953.019UK 4 XLR Inputs
Audio Mixers & Consoles

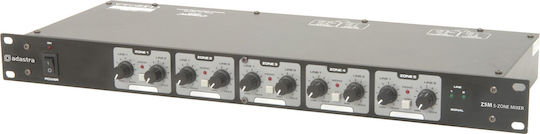

Adastra Z5M 953.019UK 4 XLR Inputs

Rack mixer with 2 inputs, 5 zones with separate volume controls for the two inputs and a mono audio playback switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. It is...

Rack mixer with 2 inputs, 5 zones with separate volume controls for the two inputs and a mono audio playback switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. It is designed to function as a central mixer in an installation serving up to 5 separate stereo audio zones.

  • 2 inputs to 5 zones
  • Mono selection for each zone
  • Fully...
See full description See full description
Review the product
Product report

Description

Description

Rack mixer with 2 inputs, 5 zones with separate volume controls for the two inputs and a mono audio playback switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. It is designed to function as a central mixer in an installation serving up to 5 separate stereo audio zones.

  • 2 inputs to 5 zones
  • Mono selection for each zone
  • Fully balanced XLR connections

Specifications:

  • Power supply: 115 / 230Vac 50 / 60Hz (IEC)
  • Inputs: Line 1 L + R, Line 2 L + R, Balanced XLRF
  • Outputs: Zone 1-5 L + R, Balanced XLRM
  • Input impedance: 40k Ohms
  • Output impedance: 220 Ohms
  • Frequency response: 20Hz - 25kHz, (+ 0 / -1 dB)
  • Signal to noise ratio: > 100dB
  • THD < 0.005%
  • Dimensions: 483 x 175 x 44 mm
  • Weight: 2.2 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Mixer
Type
Analog
Active
No
Phantom Power
No
Effects
No
Width
483 mm
Height
44 mm
Length
175 mm

Connectivity

USB (for PC)
No
XLR Inputs
4
Bluetooth
No
Headphones
No
Ethernet
No

Ethernet

Remote control port of the audio console via network cable.
RCA
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Rack mixer with 2 inputs, 5 zones with separate volume controls for the two inputs and a mono audio playback switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. It is designed to function as a central mixer in an installation serving up to 5 separate stereo audio zones.

  • 2 inputs to 5 zones
  • Mono selection for each zone
  • Fully balanced XLR connections

Specifications:

  • Power supply: 115 / 230Vac 50 / 60Hz (IEC)
  • Inputs: Line 1 L + R, Line 2 L + R, Balanced XLRF
  • Outputs: Zone 1-5 L + R, Balanced XLRM
  • Input impedance: 40k Ohms
  • Output impedance: 220 Ohms
  • Frequency response: 20Hz - 25kHz, (+ 0 / -1 dB)
  • Signal to noise ratio: > 100dB
  • THD < 0.005%
  • Dimensions: 483 x 175 x 44 mm
  • Weight: 2.2 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Mixer
Type
Analog
Active
No
Phantom Power
No
Effects
No
Width
483 mm
Height
44 mm
Length
175 mm

Connectivity

USB (for PC)
No
XLR Inputs
4
Bluetooth
No
Headphones
No
Ethernet
No

Ethernet

Remote control port of the audio console via network cable.
RCA
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
