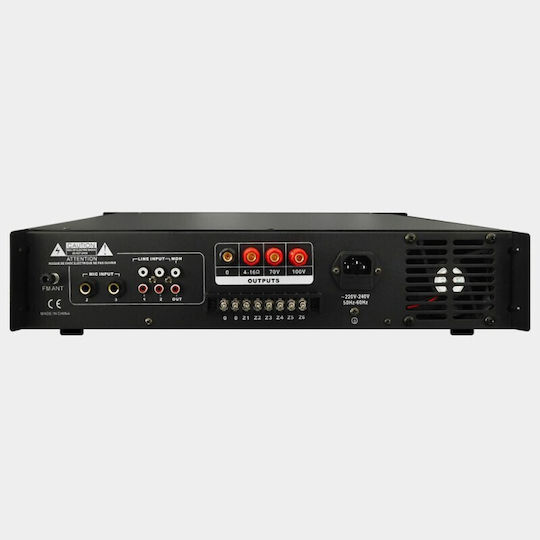

The Audio Master AV100USB integrated installation amplifier delivers 100 W RMS and supports operation at 100 V, 70 V or 4–16 Ω. Its built-in multimedia player includes an FM tuner, USB, an SD card slot, MP3 playback and Bluetooth, and can also be controlled by remote control. The MIC1 input can be given priority.
The six zones have independent volume controls, and the volume can be adjusted separately for each input. It features bass, treble and master volume controls, a LINE-OUT output and a high-speed fan. Protection features include short-circuit protection, delayed start-up, overheating, overload and DC fault protection.
- Type: Integrated installation amplifier
- Power at 100 V: 100 W RMS
- Class: AB
- Zones: 6
- Inputs: 5
- Microphone inputs: 3
- AUX inputs: 2
- Microphone inputs in specifications: 1
- RCA inputs: 1
- Output: LINE-OUT
- Connectivity: USB, Bluetooth
- Radio: FM
- Playback: MP3
- Card slot: SD
- Audio controls: Bass, treble and master volume
- Cooling system: High-speed fan
- Frequency response: 80 Hz–18 kHz
- THD: <1%
- Width: 482 mm
- Height: 88 mm
- Depth: 360 mm
- Weight: 8.5 kg
Technical Specifications
- Amplifier Type
- Commercial Amplifier
- Type
- Integrated
- Zones
- 6
- Power (100V)
- 100 W
- Class
- AB
- Weight
- 8.5 kg
Additional Specifications
- Radio
- Yes
- Cooling system
- Yes
Connectivity
- RCA
- Yes
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- Yes
- Ethernet
- No
- Bluetooth
- Yes
- Mic In
- Yes
Dimensions
- Width
- 482 mm
- Height
- 88 mm
- Length
- 360 mm
