The 80 PLUS Bronze certification is proof of the efficient operation of this power supply. It is a remarkable achievement for this category of power supply, achieving an efficiency rate of up to 89%.
80 Plus Bronze Certification
The 80 PLUS Bronze certification is proof of the efficient operation of this power supply. It is a remarkable achievement for this category of power supply, achieving an efficiency rate of up to 89%.
Reliability for CPU and GPU
The System Power 9 provides stable and reliable power for CPU and GPU. It is equipped with two independent 12V rails and supports multiple graphics cards with two PCI express slots for powerful GPUs.
DC to DC Conversion
The PSU is equipped for strict voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
Semi Modular Cables
The System Power 9 CM comes with high-quality black cables, which add a touch of class to any computer system. Thanks to the semi-modular cable management, cables that serve no purpose in the system are kept out.
Protection Technologies
The Pure Power 9 CM protects your PC from over power (OPP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit (SCP).

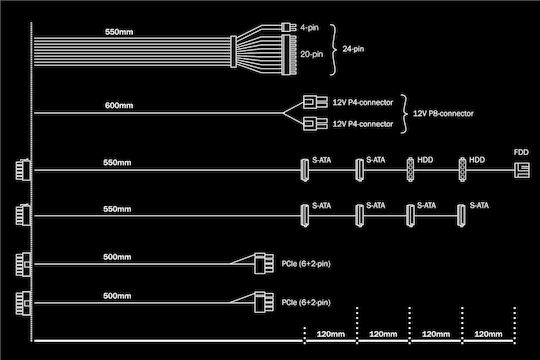

Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 6x SATA power connectors for SSD or HDD hard drives
- 2x Molex 4-pin connectors for connecting additional peripherals
- 1x Floppy connector
Product Guides
Dimensions
- Power
- 500 W
- Size
- ATX
- Modularity
- Semi Modular
- Certification
- 80 Plus Bronze
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
