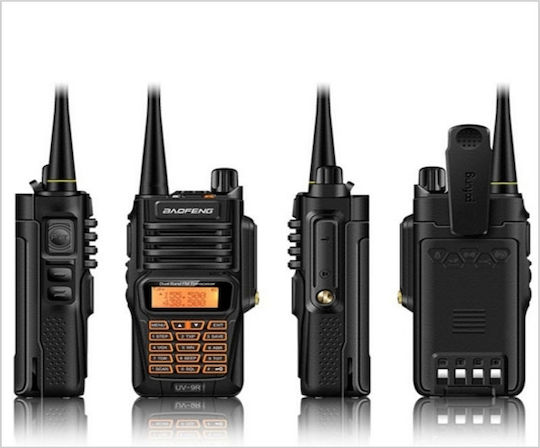

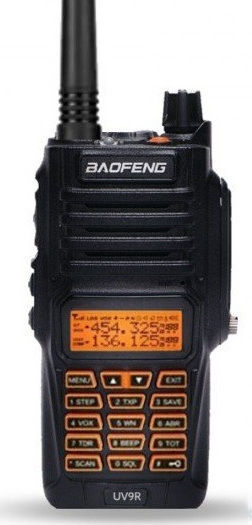

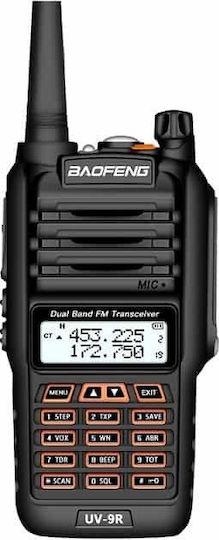

The Baofeng BF-UV9R two-way radio supports both analog and digital modes, with the ability to switch between them. It operates on dual bands and features dual standby, a dual display, and direct communication via dual time slots (Slots), allowing two groups to make simultaneous calls on the same frequency. It is compatible with MOTOTRBO Tier I & II and other DMR radios.
Features include channel scanning, manual programming, DTMF, VFO, SMS, an emergency alarm, digital remote control, CTCSS, DCS, and DMR encryption. The power-saving function helps reduce energy consumption. Programming from a computer requires a K-plug cable.
- Type: Two-way radio
- Quantity: 1
- Color: Black
- Maximum power: 8 W
- Maximum range: 15 km
- Memory channels: 128
- Display: Monochrome
- Battery: Rechargeable Li-ion
- Frequencies: VHF 136–174 MHz, UHF 400–520 MHz
- Channel spacing: 25 kHz (wide), 12.5 kHz (narrow)
- Operating voltage: DC 7.4 V
- Frequency stability: ±2.5 ppm
- Operating temperature: -20 to +60 °C
- Antenna impedance: 50 Ω
- Transmit current: Up to 2.5 A (high), up to 1.8 A (medium), up to 1.1 A (low)
- Modulation: 16KΦF3E (wide), 11KΦF3E (narrow)
- Maximum deviation: Up to ±5 kHz (wide), up to ±2.5 kHz (narrow)
- Power loss: Up to 7.5 μW
- Adjacent channel power: Up to -65 dB (wide), up to -60 dB (narrow)
- Signal-to-noise ratio: At least -45 dB (wide), at least -40 dB (narrow)
- QT/DQT deviation: 0.7 ± 0.1 kHz (wide), 0.4 ± 0.1 kHz (narrow)
- Modulation sensitivity: 8–12 mV
- Package contents: Two-way radio, Li-ion battery, dual-band antenna, strap, belt clip, manual, charger with EU-compatible plug, programming cable
- Type
- Walkie Talkie
- Colour
- Black
- Maximum Range
- 15 km
- Channels
- 128
- Pieces
- 1 pcs
- Maximum Power
- 8 W
- Display
- Monochrome
- With Earpiece
- No
- Rechargeable Battery
- Yes
