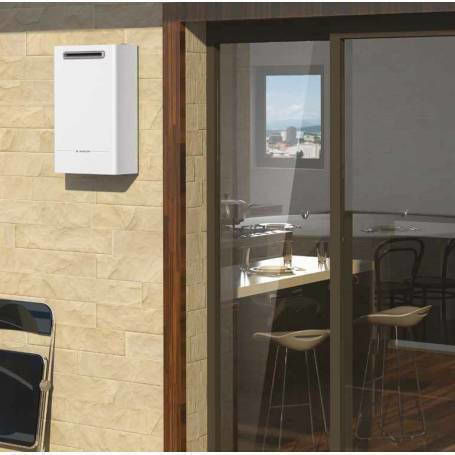

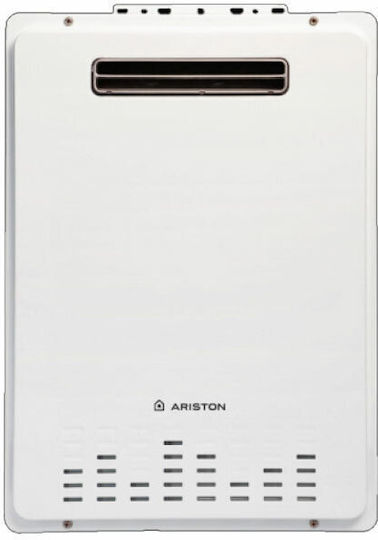

The Ariston Next Evo X Outdoor 11 wall-mounted instantaneous water heater heats water on demand using natural gas and is designed for outdoor installation. It has an open combustion chamber and forced flue gas flow, with an A3 exhaust type, and does not require a chimney. Electronic temperature control uses NTC sensors at the heat exchanger inlet and outlet, while ignition is electronic and includes flame monitoring.
It operates at a minimum pressure of 0.1 bar and a water flow rate of 3 l/min. The frost protection function supports operation down to -20 °C, while modulation reaches up to 1:3. It has IPX5D protection and an A energy rating.
- Fuel: Natural gas
- Maximum power: 11 kW
- Maximum flow rate: 11 lt/min
- Maximum temperature: 35 °C
- Installation: Central
- Temperature adjustment: In steps
- Dimensions: Height 57 cm, width 39.4 cm, depth 18 cm
- Remote control: Included
- Energy rating: A
- Combustion chamber: Open
- Flue gas flow: Forced
- Flue gas exhaust type: A3
- Ignition: Electronic with flame monitoring
- Minimum operating pressure: 0.1 bar
- Minimum water flow rate: 3 l/min
- Modulation: Up to 1:3
- Frost protection function: Down to -20 °C
- Protection rating: IPX5D
- NOx emissions: Low
- Compliance: ErP 26/09/2018
- Product Number
- 3632457
Product Details
- Power Source
- Natural gas
- Maximum Power
- 11 kW
- Maximum Flow Rate
- 11 lt/min
- Maximum Temperature
- 35 °C
- Temperature Setting
- Heating Levels
- Placement
- Central Installation
- Wall Mounted
- Yes
- Inverter
- No
- Remote Control
- Yes
Energy Label
- Energy Class
- -
Dimensions
- Height
- 57 cm
- Width
- 39.4 cm
- Length
- 18 cm
