The 2-way acoustic design features a 14-inch woofer.
The woofer has a 2.5" voice coil, delivering dynamic, tight bass.
For high frequencies, a 1" driver with a 1.4" voice coil produces crystal-clear treble.
The frequency response extends from 45Hz to 20KHz (-6dB), offering natural tonal balance.
The crossover frequency is set at 1.6 KHz for seamless integration between the drivers.
This delivers balanced, clear sound without unwanted distortion.
FBT JMAXX 114A Active Speaker
- Woofer diameter: 14” with 2.5" voice coil
- Driver diameter: 1” with 1.4" voice coil
- DSP with 4 presets
- Frequency response: 40Hz - 20KHz
- Monitor positions: 12°, 40° or 55°
- Suspension points: 2 x M10, 35mm pole socket, wall mount capability
- Control panel: XLR in & XLR link, Volume, EQ preset, HP filter, GND LFT switch
- Weight: 14kg
- Maximum SPL cont/peak: 126/132 dB
- Dispersion: 90° x 60° HxV
- Input: XLR with loop, 6.3mm Jack
- Maximum power requirement: 640 VA
- Dimensions (WxHxD): 402x644x345mm
- Transport dimensions (WxHxD): 500x745x440mm
- Transport weight: 16.6kg
2-Way Acoustic Configuration and 14" Speaker
The 2-way acoustic design features a 14-inch woofer.
The woofer has a 2.5" voice coil, delivering dynamic, tight bass.
For high frequencies, a 1" driver with a 1.4" voice coil produces crystal-clear treble.
The frequency response extends from 45Hz to 20KHz (-6dB), offering natural tonal balance.
The crossover frequency is set at 1.6 KHz for seamless integration between the drivers.
This delivers balanced, clear sound without unwanted distortion.
Class-D Bi-Amp Amplifier and 132 dB SPL
Η διπλή μονάδα ενίσχυσης Class-D αποδίδει συνολική συνεχή ισχύ 900W RMS.
Η ισχύς κατανέμεται ανεξάρτητα σε 700W για το woofer και 200W για τη μονάδα υψηλών.
Σε συνθήκες κορύφωσης, η μέγιστη ισχύς αγγίζει τα 1400W LF / 400W HF Peak.
Το σύστημα παράγει εντυπωσιακή στάθμη έντασης 126 dB συνεχές και 132 dB αιχμής (SPL peak).
Αυτό εξασφαλίζει άφθονο δυναμικό headroom, αποτρέποντας φαινόμενα ακουστικής συμπίεσης.
Προσφέρει γεμάτο ήχο με εξαιρετική σαφήνεια ακόμη και σε εκδηλώσεις μεγάλων απαιτήσεων.
Digital DSP with 4 Presets and HP Filter
The built-in digital DSP processor features 4 ready-made presets.
The presets allow the sound to be adjusted quickly to suit the venue and the program.
It includes a dedicated HP filter (High Pass) control to cut out unnecessary low frequencies.
This makes it easier to pair the speaker harmoniously with an external subwoofer.
Digital management actively protects the drivers from overdriving and sudden peaks.
The sound engineer can shape the audio output precisely and easily.

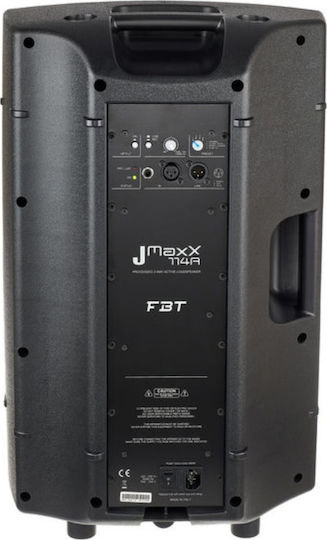

Control Panel, Connections and GND LFT Switch
The rear panel features a complete control panel with XLR and 6.3 mm jack inputs.
An XLR loop/link output is provided for directly daisy-chaining additional speakers.
The input impedance is 22 kΩ, ensuring signal stability from mixing consoles.
A GND LFT (Ground Lift) switch is built in to effectively eliminate ground hum.
It comes with a 5-metre power cord for convenient placement.
The ergonomic connector layout makes cabling quick and safe on stage.
Flexible Placement, Monitor Positions and 14kg Weight

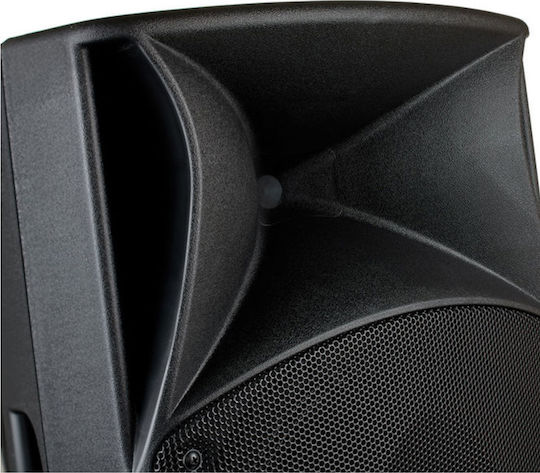

The horn provides wide 90° x 60° dispersion for extensive audience coverage.
The asymmetrical cabinet allows it to be used as a stage monitor at 12°, 40° or 55° angles.

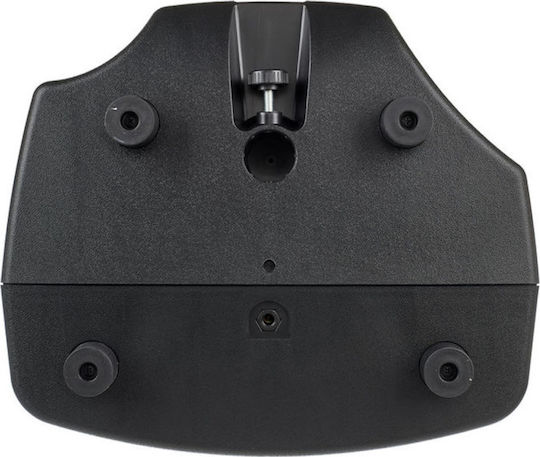

It features 2 M10 rigging points and an integrated 35 mm socket for mounting on a pole or wall bracket.
The unit measures 402x644x345 mm (40.2x34.5x64.4 cm) and has a net weight of 14 kg.
Its compact, durable construction makes it easy for one person to transport and set up.
A versatile, highly reliable solution for live concerts and permanent installations.
Dimensions
- Functionality
- Active
- Type
- Speaker
- Power (RMS)
- 900 W
- Bass Driver
- 14 "
- Weight
- 14 kg
- Quantity
- Piece
- Set
- No
- Colour
- Black
- Line Array
- -
- Battery Speaker
- -
- Height
- 64.4 cm
- Length
- 40.2 cm
- Length
- 34.5 cm
Connectivity
- Connection Technologies
- XLR
