- Clear LCD screen
- Comfortable protective cover, with test lead hanging groove
- 2-meter drop test, precision protection
- Loud buzzer sound
- Ergonomic design

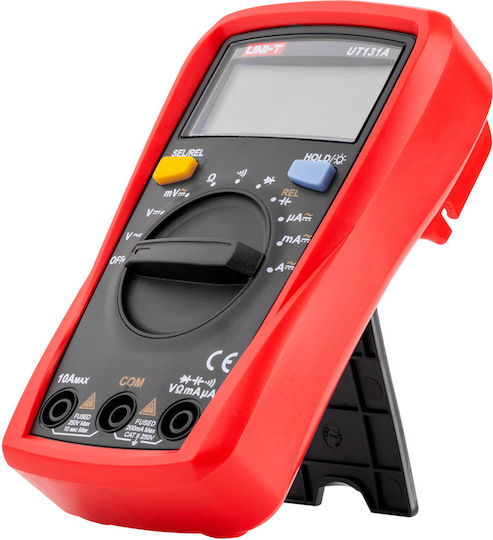

The new generation of UT131 series multimeters offers a higher measurement standard in the low-cost multimeter category. Innovative and industrial design ensures impact resistance of the multimeter from a height of two meters. The new LCD screen layout is more comprehensive and practical for all users and features a backlight option. The UT131 series multimeters ensure safe use and measurement according to the CAT II standard.
Features
- Clear LCD screen
- Comfortable protective cover, with test lead hanging groove
- 2-meter drop test, precision protection
- Loud buzzer sound
- Ergonomic design
Technical Specifications
- Type of display used: LCD (2000), with backlight
- DC voltage measurement range: 200mV/2000mV/20V/200V/250V
- DC voltage measurement accuracy: (0.5% + 3 digits)
- AC voltage measurement range: 200mV/2/20/200/250V
- AC voltage measurement accuracy: (0.7% + 3 digits)
- DC current measurement range: 200μ/2000μ/20m/200m/2A/10A
- DC current measurement accuracy: (1% + 3 digits)
- AC current measurement range: 200μ/2000μ/20m/200m/2A/10A
- AC current measurement accuracy: (1.2% + 3 digits)
- Resistance measurement range: 200/2k/20k/200k/2M/20M/200MΩ
- Resistance measurement accuracy: (0.8% + 2 digits)
- Capacitance measurement range: 2nF/20nF/200nF/2μF/20μF/200μF/2000mF
- Capacitance measurement accuracy: (3% + 5 digits)
- Overall dimensions (L x W x H): 131 x 95 x 58 mm
- Weight with battery: 206 g
- Power supply: AAA Battery x2

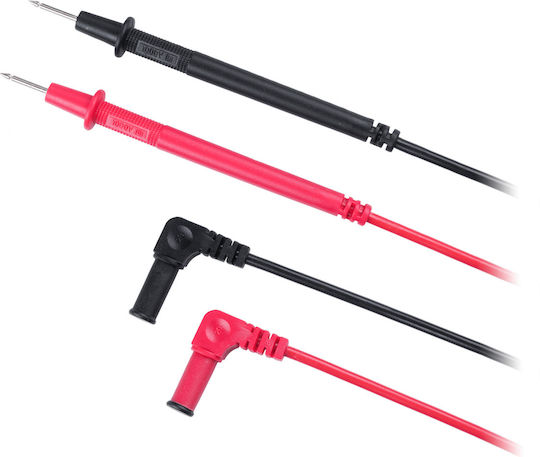

- Test leads
- Colour
- Red
- with LCD Screen
- Yes
- True RMS
- No
- with Buzzer
- No
