- 10mm ratchet chuck for secure holding of drills of any size
- Variable speed trigger to have control of the application at your fingertips
- LED flashlight at the base for strong illumination in dark environments
- Provides greater autonomy, excellent performance, and durability
- 20% shorter in size compared to previous generations
- Brushless motor for longer life and reliability
- 2-speed transmission and 15-position adjustable torque selector
- Belt clip
At a glance
- 10mm ratchet chuck for secure holding of drills of any size
- Variable speed trigger to have control of the application at your fingertips
- LED flashlight at the base for strong illumination in dark environments
- Provides greater autonomy, excellent performance, and durability
- 20% shorter in size compared to previous generations
- Brushless motor for longer life and reliability
- 2-speed transmission and 15-position adjustable torque selector
- Belt clip
Brushless Motor
Less wear, greater performance
The advantage that brushless motors have over brushed ones is that they do not have friction since there are no carbon brushes. Without carbon brushes, the motors are more efficient and have a longer lifespan as there is no wear and tear (the carbon brushes in brushed motors wear out with use). They produce less noise, maintain their torque consistently at all speeds, do not overheat, and do not require maintenance.
Specifications
- Battery Voltage: 12 V
- Battery Capacity: 2.0 Ah
- Battery Type: Li-Ion
- Output Power: 250W
- Max Torque (Hard): 57.5 Nm – Max Torque (Soft): 25.5 Nm
- Chuck Capacity: 10 mm
- Number of Speeds: 2.0
- No Load Speed: 0-425 / 0-1500 rpm
- Max Drilling Capacity [Wood]: 20.0 mm
- Cutting Capacity (Metal): 10.0 mm
- Length: 152.0 mm – Height: 185.0 mm – Depth: 60.0 mm
- Sound Pressure: 72.0 dB(A)
- Hand Vibration - Drilling in Metal: 2.5 m/s²
- Uncertainty K 1 (Vibration): 1.5 m/s²
- Max Clamping Range of Drill Head: 10
- Min Clamping Range of Drill Head: 1.5
- Weight: 0.90 kg

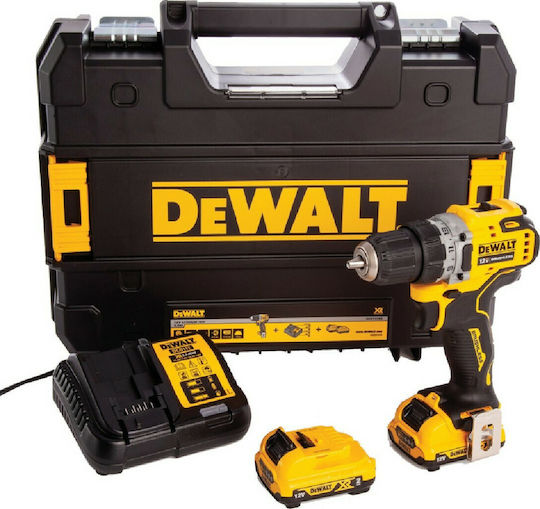

Includes
- 2 x 2.0Ah 12V XR Li-Ion batteries
- Charger
- TSTAK toolbox
Product Details
- Type
- Drill Driver
- Power Source
- Battery
- Brushless
- Yes
Battery Features
- Number of Batteries
- 2
- Battery Voltage
- 12 V
- Battery Capacity
- 2 Ah
- Secondary Battery Charge Ah
- 2 Ah
- Compatible Battery Type
- Dewalt XR Li-Ion 12V
Power Specifications
- Power
- 250 W
Drilling Abilities
- Steel Ø
- 10 mm
- Wood Ø
- 20 mm
Features & Functions
- Maximum Motor Speed
- 1500 rpm
- Speed Adjustment
- Yes
- Maximum Torque
- 57.5 Nm
- Maximum Number of Hits
- -
- Torque Adjustment
- Yes
- Percussive
- No
- Angle
- No
- Interchangeable Head
- No
- Reception
- Quick Change
- Maximum Chuck Diameter
- 10 mm
- Net Weight
- 870 gr
- Weight (with Battery)
- 1090 gr
Extra Features
- Carrying Case
- Hard Case
- Handle Included
- No
- Integrated Light
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
