Car fault diagnostic tool with OBD connection and data transmission via wifi to any device with Android system or even to Windows.

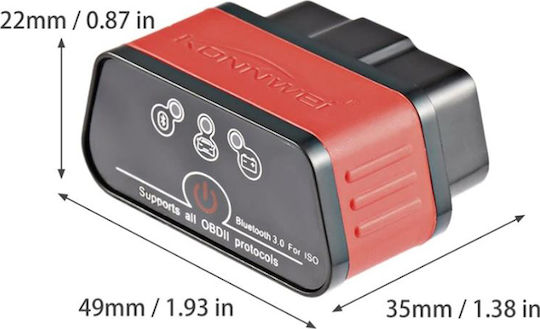

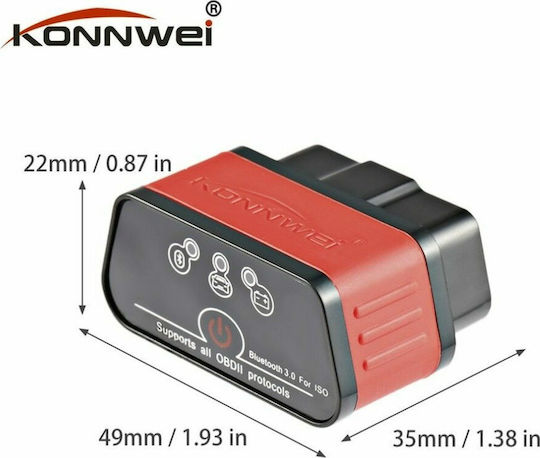

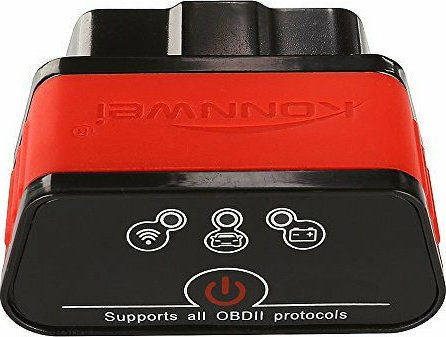

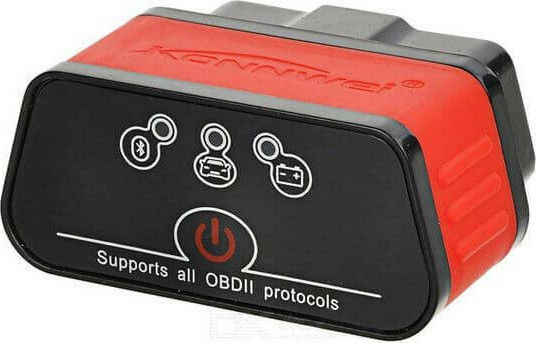

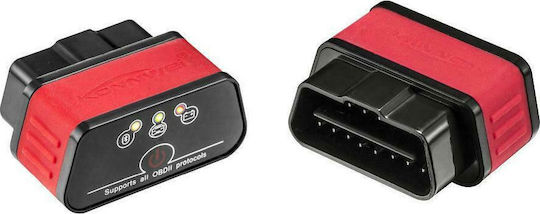

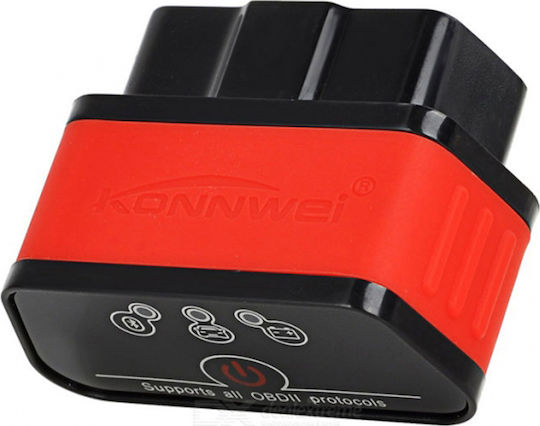

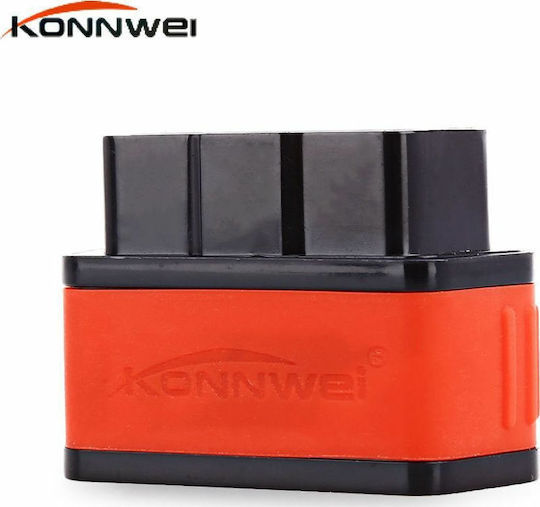

The Konnwei KW903 scantool is a small adapter that connects to the vehicle's OBD port. Through wifi, you can connect it to any computer, tablet, or smartphone to view the relevant diagnostic procedures and you will be able to:
- Measure fuel consumption.
- Display real-time car operating speed.
- Oil pressure.
- Coolant temperature.
- Throttle position, oxygen sensor values, intake air temperature, and much more.
You need to turn off the MIL (Check Engine signal) engine signal check.
Download data to external media in various formats for later printing.
Record various parameters, display real-time graphics, and much more.
Perform a complete diagnostic of your car via computer, even to fix minor faults without resorting to service stations.
The KW903 scantool is a high-quality car control tool.
- Small size, compact construction.
- Plug it in and never disconnect it.
- Stable wireless connection.
- Automatic communication cut-off after half an hour.
- Supports all OBD-II protocols. The adapter uses the fastest and most reliable ARM chips.
Compatible with all OBDII Protocols:
- 1. Automatic
- 2. SAE J1850 PWM (41.6Kbaud)
- 3. SAE J1850 VPW (10.4Kbaud)
- 4. ISO9141-2 (5 baud init, 10.4Kbaud)
- 5. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- 6. ISO14230-4 KWP (fast init, 10.4 Kbaud)
- 7. ISO15765-4 CAN (11bit ID, 500 Kbaud)
- 8. ISO15765-4 CAN (29bit ID, 500 Kbaud)
- 9. ISO15765-4 CAN (11bit ID, 250 Kbaud)
- 10. ISO15765-4 CAN (29bit ID, 250 Kbaud)
- - SAE J1939 CAN (29bit ID, 250*Kbaud)
- - USER1 CAN (11*bit ID, 125*Kbaud)
- - USER2 CAN (11*bit ID, 50*kbaud)
Display and record sensor data in real time such as:
- 1. Read Trouble Codes
- 2. Scan + Clear Codes
- 3. Record Data Logging
- 4. Export Data, Display Real
- 5. Time Sensor Data
- 6. Engine RPM
- 7. Coolant Temp
- 8. Oil Psi
- 9. Throttle Position
- 10. Calc Load Value
- 11. Fuel System Status
- 12. Vehicle Speed
- 13. Short and Long Term Fuel Trim
- 14. Intake Manifold Psi
- 15. Timing Advance
- 16. Intake Air Temp
- 17. Air Flow Rate
- 18. Absolute Throttle Position
- 19. Oxygen Sensor Voltages
- 20. Associated ST Fuel Trims
- 21. Fuel System Status
- 22. Fuel Psi
- Product Number
- KW903
Connectivity
- Connection Type
- Bluetooth
Compatibility
- Type
- OBD 2
- Functional
- Android
Specifications
- Features
- ELM 327
