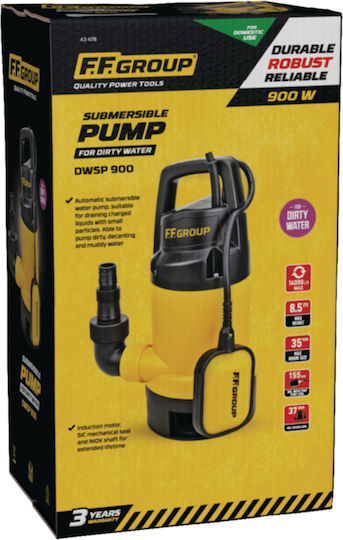

FFG DWSP 900 Single-phase Pump Waste Water / Sewage 1.2hp 43478
Submersible Water Pumps

FFG DWSP 900 Single-phase Pump Waste Water / Sewage 1.2hp 43478

DWSP 900 Submersible Dirty Water Pump 1.2Hp

Features:

  • Rated power: 0.9 kW / 1.2 hp
  • Maximum flow rate: 14.0 m³/h
  • Maximum head: 8.5 m
  • Maximum immersion depth: 7 m
  • Maximum particle size: 35 mm
  • Discharge...

DWSP 900 Submersible Dirty Water Pump 1.2Hp

Features:

  • Rated power: 0.9 kW / 1.2 hp
  • Maximum flow rate: 14.0 m³/h
  • Maximum head: 8.5 m
  • Maximum immersion depth: 7 m
  • Maximum particle size: 35 mm
  • Discharge outlet: 1”, 1 1/4”, 1 1/2”
  • Minimum pump starting level: 155 mm
  • Minimum suction level: 37 mm
  • Maximum water temperature: 35 °C
  • Protection: IPX8
  • Insulation class:...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    8.5

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
58 40 €
Delivery by Wed, 24 Jun
20,00 €   shipping cost
Sent from Greece
From MdTools 5.0 (50)
5.0 (50 reviews)
Greece
2 pieces
See Water Pumps on the page of MdTools
Product report

Description

Description

DWSP 900 Submersible Dirty Water Pump 1.2Hp

Features:

  • Rated power: 0.9 kW / 1.2 hp
  • Maximum flow rate: 14.0 m³/h
  • Maximum head: 8.5 m
  • Maximum immersion depth: 7 m
  • Maximum particle size: 35 mm
  • Discharge outlet: 1”, 1 1/4”, 1 1/2”
  • Minimum pump starting level: 155 mm
  • Minimum suction level: 37 mm
  • Maximum water temperature: 35 °C
  • Protection: IPX8
  • Insulation class: F
  • Cable: 10 m
  • Weight: 5.6 kg

Performance:

  • L/h: 4,000, 7,200, 11,200, 13,000
  • L/min: 67, 120, 187, 217
  • Height (m): 7.5, 6, 3, 1.5

Description:

Automatic submersible water pump, suitable for draining liquids with small particles. It is capable of pumping dirty water.

Induction motor, SiC sealing gasket, and INOX shaft for prolonged lifespan.

Motor protection IPX8.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
1.2 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
900 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
10 m

Features

with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1", 1 1/4", 1 1/2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
8.5 m

Maximum Head Height: 8.5


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
14 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Pump Submersion Depth
7 m

Materials & Construction

Set
No
Stainless
Yes
Protection Certification
IPX8

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
