Leo Group ACm75 Electric Surface Water Pump Centrifugal 1hp Single-Phase
Surface Water Pumps

Leo Group ACm75 Electric Surface Water Pump Centrifugal 1hp Single-Phase Code: 01A26

Key features:

  • Power: 1hp
  • Voltage: 230V
  • Max Head: 35m
  • Max Flow: 6 m3/h
  • Ports: 1'' x 1''
See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
93 50 €
Delivery by Thu, 19 Nov
23,00 €   shipping cost
Sent from Greece
From MdTools 5.0 (48)
5.0 (48 reviews)
Greece
1 piece
See Water Pumps on the page of MdTools

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

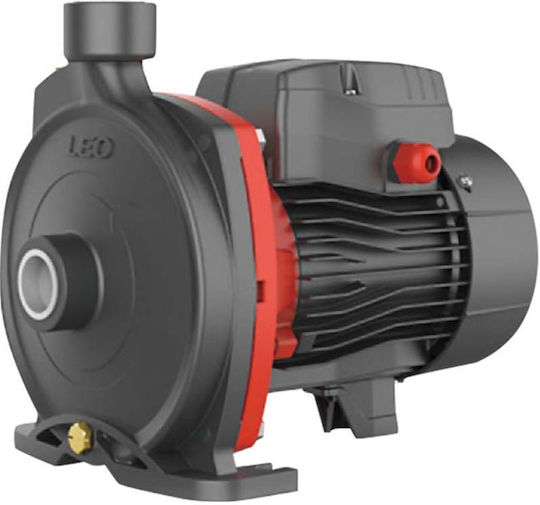

The Leo Group ACm75 surface centrifugal pump is a two-stage pump designed for domestic use, small-scale irrigation and water distribution. It features a cast-iron body with rust protection, a stainless steel impeller and an AISI 304 stainless steel shaft. The motor has copper windings.

  • Type: Surface centrifugal pump
  • Stages: Two-stage
  • Power supply: Electric
  • Horsepower: 1 hp
  • Power: 750 W
  • Voltage: Single-phase, 220 V
  • Installation: Horizontal

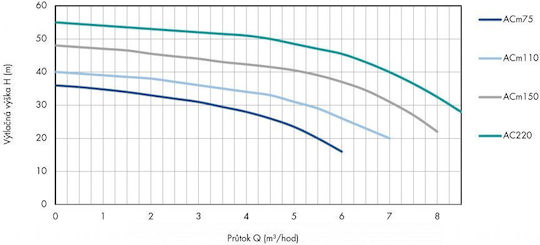

  • Flow rate and head: 0 m³/h at 35 m, 1.8 m³/h at 33 m, 3 m³/h at 31 m, 4.2 m³/h at 27 m and 6 m³/h at 16 m
  • Maximum head: 36 m
  • Maximum suction lift: Approximately 8 m
  • Inlet port: Front, 1″
  • Outlet ports: 2 × 1″
  • Body material: Cast iron
  • Impeller material: Stainless steel
  • Shaft material: AISI 304 stainless steel
  • Motor winding: Copper
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01A26

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
6 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
36 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group ACm75 surface centrifugal pump is a two-stage pump designed for domestic use, small-scale irrigation and water distribution. It features a cast-iron body with rust protection, a stainless steel impeller and an AISI 304 stainless steel shaft. The motor has copper windings.

  • Type: Surface centrifugal pump
  • Stages: Two-stage
  • Power supply: Electric
  • Horsepower: 1 hp
  • Power: 750 W
  • Voltage: Single-phase, 220 V
  • Installation: Horizontal
  • Flow rate and head: 0 m³/h at 35 m, 1.8 m³/h at 33 m, 3 m³/h at 31 m, 4.2 m³/h at 27 m and 6 m³/h at 16 m
  • Maximum head: 36 m
  • Maximum suction lift: Approximately 8 m
  • Inlet port: Front, 1″
  • Outlet ports: 2 × 1″
  • Body material: Cast iron
  • Impeller material: Stainless steel
  • Shaft material: AISI 304 stainless steel
  • Motor winding: Copper
  • Weight: 10 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01A26

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Flow Rate
6 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
Manometric Head
36 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
