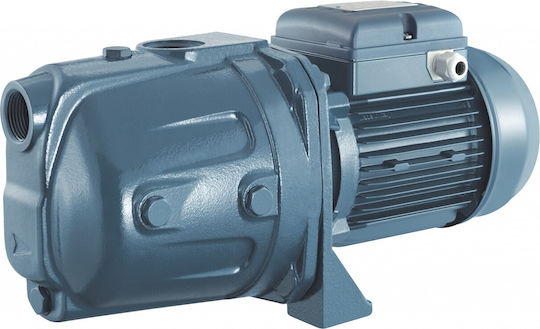

Pentax CAM100 Electric Surface Water Pump Centrifugal with Automatic Suction 1hp Single-Phase
Surface Water Pumps

Pentax CAM100 Electric Surface Water Pump Centrifugal with Automatic Suction 1hp Single-Phase Code: 11.018.100

JET CAM 100N/00 PENTAX Automatic Self-Priming Pump

Centrifugal self-priming pump for water supply suitable for small domestic systems, which can be connected to pressure tanks for liquid transfer and...

JET CAM 100N/00 PENTAX Automatic Self-Priming Pump

Centrifugal self-priming pump for water supply suitable for small domestic systems, which can be connected to pressure tanks for liquid transfer and tank emptying. It is also used for gardening.

  • Cast iron body
  • Plastic impeller
  • Ceramic graphite sealing
  • Stainless steel shaft AISI 416
  • Liquid temperature: 0 –...
See full description See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Self-Priming

    The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
Product report

Description

Description

JET CAM 100N/00 PENTAX Automatic Self-Priming Pump

Centrifugal self-priming pump for water supply suitable for small domestic systems, which can be connected to pressure tanks for liquid transfer and tank emptying. It is also used for gardening.

  • Cast iron body
  • Plastic impeller
  • Ceramic graphite sealing
  • Stainless steel shaft AISI 416
  • Liquid temperature: 0 – 50°C
  • Operating pressure: max 6 bar
  • Two-pole motor with thermal protection
  • Protection class IP44, insulation class F
  • Type: Self-priming
  • Power: 1 hp
  • Outlet: 1" x 1"
  • Voltage: 1 X 230V
  • Weight: 17 Kg
  • Flow rate: 0.6 ÷ 4.2
  • Manometric height: 44.3 ÷ 20
  • Series: CAM

Flow Q C/R (m3/h): 0, 0.6, 1.2, 2.4, 3, 3.6, 4.2, 4.8, 6, 7.2

Manometric Height H (m): 50.9, 44, 39, 30, 26, 23, 20

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
11.018.100

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
Yes

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Power
750 W
Manometric Head
47 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
Pressure
6 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
