Linea VZ Ventil Internal Loop Panel Radiator Body Double-column 22/600/700 1376kcal/h
Radiators

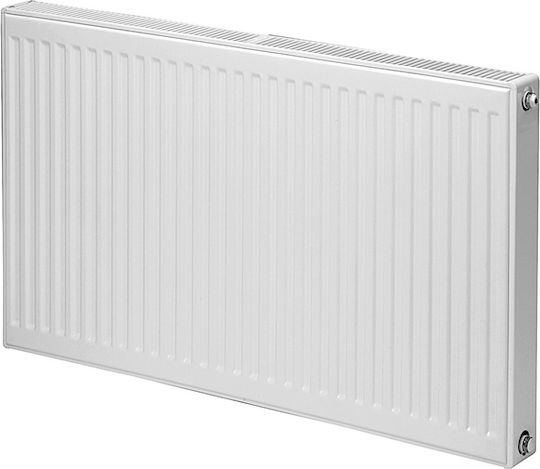

Linea VZ Ventil Internal Loop Panel Radiator Body Double-column 22/600/700 1376kcal/h

The Linea Ventil internal-loop panel radiator is made of steel and is 105 mm thick. Its heat output is 1376 kcal/h at a flow temperature of 90°C and a return temperature of 70°C.

It has a white RAL...

The Linea Ventil internal-loop panel radiator is made of steel and is 105 mm thick. Its heat output is 1376 kcal/h at a flow temperature of 90°C and a return temperature of 70°C.

It has a white RAL 9010 electrostatic polyester powder coating and is manufactured in accordance with DIN EN 442. The package includes plugs, an air vent and mounting brackets.

  • ...
See full description See full description
97 85 €
Delivery by Fri, 13 Nov
77,00 €   shipping cost
Sent from Greece
From Roubekas 5.0 (3)
5.0 (3 reviews)
Greece
5+ pieces
See Central Heating on the page of Roubekas

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Linea Ventil internal-loop panel radiator is made of steel and is 105 mm thick. Its heat output is 1376 kcal/h at a flow temperature of 90°C and a return temperature of 70°C.

It has a white RAL 9010 electrostatic polyester powder coating and is manufactured in accordance with DIN EN 442. The package includes plugs, an air vent and mounting brackets.

  • Type: Internal-loop panel
  • Material: Steel
  • Column type: 22
  • Height: 600 mm
  • Length: 700 mm
  • Thickness: 105 mm
  • Heat output: 1376 kcal/h
  • Colour: White RAL 9010
  • Standard: DIN EN 442
  • Test pressure: 13 bar
  • Operating pressure: 10 bar
  • Package contents: Plugs, air vent, mounting brackets

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Panel

Type

Panel

The network connections are located internally within the body for a better aesthetic result.
Heating Efficiency (kcal/h)
1376 kcal/h

Heating Efficiency (kcal/h)

This concerns the heat output of a radiator. Calculation requires a mechanical engineer as many factors are taken into account, not just the surface area of the space where the radiator is placed. It is measured in calories (kcal).
Installation Type
Internal Loop

Installation Type

Internal Loop
The network connections are located internally within the body for a better aesthetic result.
Type of Columns
22
Colour
White
Height
600 mm
Length
700 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Linea Ventil internal-loop panel radiator is made of steel and is 105 mm thick. Its heat output is 1376 kcal/h at a flow temperature of 90°C and a return temperature of 70°C.

It has a white RAL 9010 electrostatic polyester powder coating and is manufactured in accordance with DIN EN 442. The package includes plugs, an air vent and mounting brackets.

  • Type: Internal-loop panel
  • Material: Steel
  • Column type: 22
  • Height: 600 mm
  • Length: 700 mm
  • Thickness: 105 mm
  • Heat output: 1376 kcal/h
  • Colour: White RAL 9010
  • Standard: DIN EN 442
  • Test pressure: 13 bar
  • Operating pressure: 10 bar
  • Package contents: Plugs, air vent, mounting brackets

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Panel

Type

Panel

The network connections are located internally within the body for a better aesthetic result.
Heating Efficiency (kcal/h)
1376 kcal/h

Heating Efficiency (kcal/h)

This concerns the heat output of a radiator. Calculation requires a mechanical engineer as many factors are taken into account, not just the surface area of the space where the radiator is placed. It is measured in calories (kcal).
Installation Type
Internal Loop

Installation Type

Internal Loop
The network connections are located internally within the body for a better aesthetic result.
Type of Columns
22
Colour
White
Height
600 mm
Length
700 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
